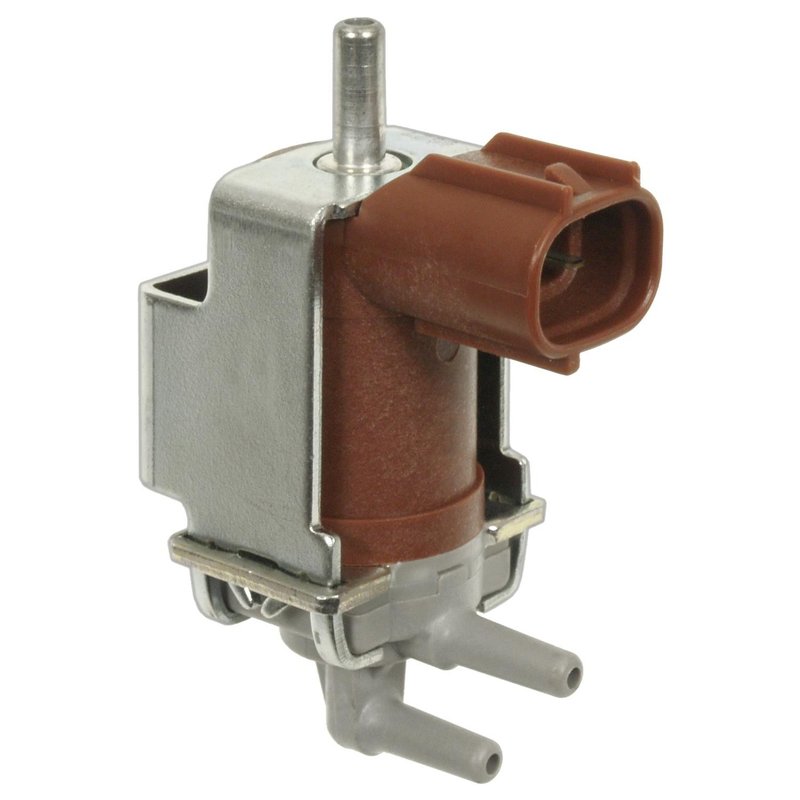

Standard Ignition VS206 Vacuum Regulator Valve
| Brand | Standard Ignition VS206 |
|---|---|
| Contents | Valve |
| Hose Size - Inches | 1/8" |
| Fits | Toyota · 11 vehicles |
Vacuum regulator valve. Controls vacuum flow in the emission system.
Three hose connectors. Provides a simple, direct hose connection layout.
1/8-inch hose size. Fits standard small-diameter vacuum lines.
Cross-references Standard Ignition VS206, 2-30777 and 2M1249 for the same application. See all 9.
Vacuum Regulator Valve for Toyota EGR Control
Standard Ignition VS206 is a vacuum regulator valve used in the EGR vacuum control circuit on select Toyota applications. It features a 3-hose connector layout with 1/8" hose size for direct replacement service on listed Camry and Solara models.
- Vacuum regulator valve for emission control vacuum routing
- 3 hose connectors for the specified vacuum system layout
- 1/8" hose size for the listed application
- Direct-fit replacement for select Toyota Camry and Toyota Solara vehicles
- Standard Ignition VS206 part number for catalog matching
Application Details
Use Standard Ignition VS206 when servicing the EGR valve vacuum control system on the listed Toyota vehicles. This valve regulates vacuum flow to help maintain proper EGR operation, which is important for stable emissions-system performance and consistent engine control. This part cross-references 2-30777 for the same application.
Compatible With: Fits 2002-2003 Toyota Camry, N/A; Fits 1997-1999 Toyota Camry, N/A; Fits 2000-2002 Toyota Solara, N/A; Fits 2000-2001 Toyota Camry, N/A; Fits 1999 Toyota Solara, N/A. Standard Ignition VS206 is the catalog reference for these Toyota Camry and Toyota Solara fitments.
Common Symptoms It May Address
- Incorrect EGR vacuum signal routing
- Emissions-related drivability concerns tied to vacuum control
- Vacuum leakage at the regulator valve
- Rough idle or hesitation related to EGR control issues
- Check engine light conditions associated with vacuum system faults
Installation Notes
Verify hose routing before removal and match each connection to the original vacuum layout. Inspect the intake manifold area and adjacent vacuum lines for cracks, hardening, or contamination before installing the replacement valve. Confirm the hose size and connector count match the vehicle’s original configuration.
Quality Assurance
Standard Ignition supplies emission control and vacuum system service parts for cataloged vehicle applications. VS206 is listed for the Toyota Camry and Toyota Solara fitments shown above and should be matched by part number and application details during service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2003 | Toyota | Camry | 3.0L | V6 | N/A | — |
| 2002 | Toyota | Camry | 3.0L | V6 | N/A | — |
| 2002 | Toyota | Solara | 3.0L | V6 | N/A | EGR Valve Vacuum Control; Located At Intake Manifold |
| 2001 | Toyota | Camry | 3.0L | V6 | N/A | EGR Valve Vacuum Control; Located At Intake Manifold |
| 2001 | Toyota | Solara | 3.0L | V6 | N/A | EGR Valve Vacuum Control; Located At Intake Manifold |
| 2000 | Toyota | Camry | 3.0L | V6 | N/A | EGR Valve Vacuum Control; Located At Intake Manifold |
| 2000 | Toyota | Solara | 3.0L | V6 | N/A | EGR Valve Vacuum Control; Located At Intake Manifold |
| 1999 | Toyota | Camry | 3.0L | V6 | N/A | — |
| 1999 | Toyota | Solara | 3.0L | V6 | N/A | — |
| 1998 | Toyota | Camry | 3.0L | V6 | N/A | — |
| 1997 | Toyota | Camry | 3.0L | V6 | N/A | — |
