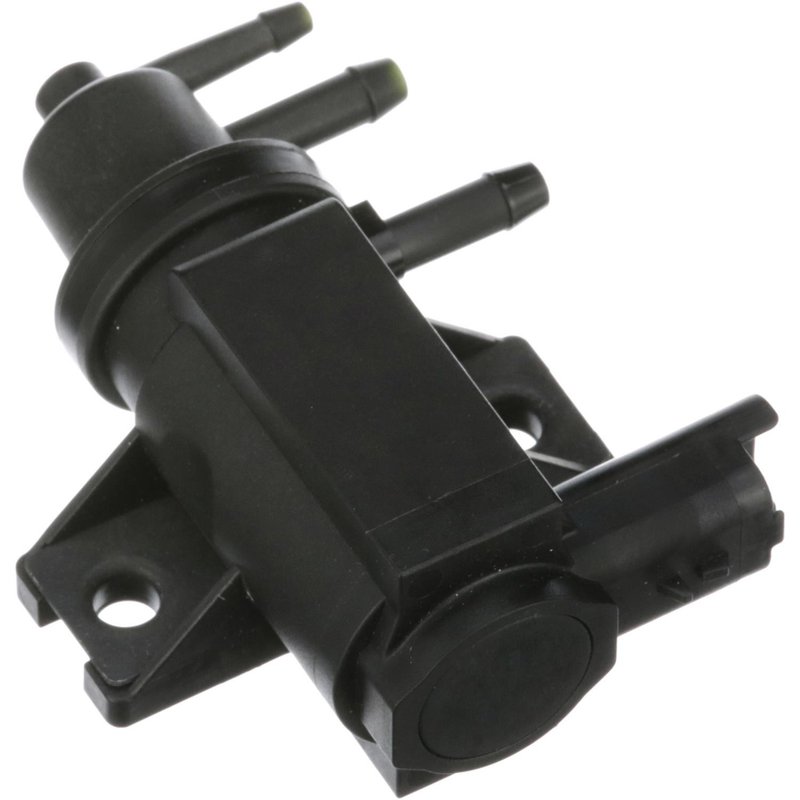

Standard Ignition VS258 Exhaust Gas Recirculation (EGR) Valve Control Solenoid

Standard Ignition VS258 EGR Valve Control Solenoid

Standard Ignition VS258 is an electronic exhaust gas recirculation (EGR) valve control solenoid used to regulate EGR flow through the engine management system. It is built with a 3-port, 2-bolt, pin-terminal design for direct replacement service on select Ford and Lincoln applications.

Key Features

• Electronic EGR valve control solenoid for emission system operation
• 3 hose connectors and 3 ports for vacuum routing
• 2 bolt holes for secure mounting
• Male pin terminals with 2 terminal connections
• Contents: solenoid
• No gasket included

Application Details

Compatible with 2015-2024 Ford Edge, EGR Control Solenoid; 2019-2023 Lincoln Nautilus, EGR Control Solenoid; 2017-2019 Ford Fusion, EGR Control Solenoid; and 2016-2018 Lincoln MKX, EGR Control Solenoid. Standard Ignition VS258 is a direct-fit emission control component for vehicles that use an electronically controlled EGR valve solenoid in the listed applications. This part cross-references FL3Z9E882A for the same application.

What It Helps Address

• EGR valve control faults related to vacuum switching
• Check engine lights tied to EGR system performance
• Rough idle or drivability concerns caused by improper EGR operation
• Emission system malfunction codes involving EGR control
• Vacuum routing issues at the EGR control solenoid

Installation Notes

Verify hose routing, port orientation, and electrical connector style before installation. Because this unit uses a 3-port, 2-bolt, electronic design, matching the original configuration is important for proper fitment on Ford Edge, Lincoln Nautilus, Ford Fusion, and Lincoln MKX applications. No gasket is included, so inspect the sealing surfaces and related components during service.

Quality Assurance

Standard Ignition supplies emission control components for service replacement applications, and VS258 is built to match the listed electronic EGR solenoid configuration for the specified Ford and Lincoln vehicles.
