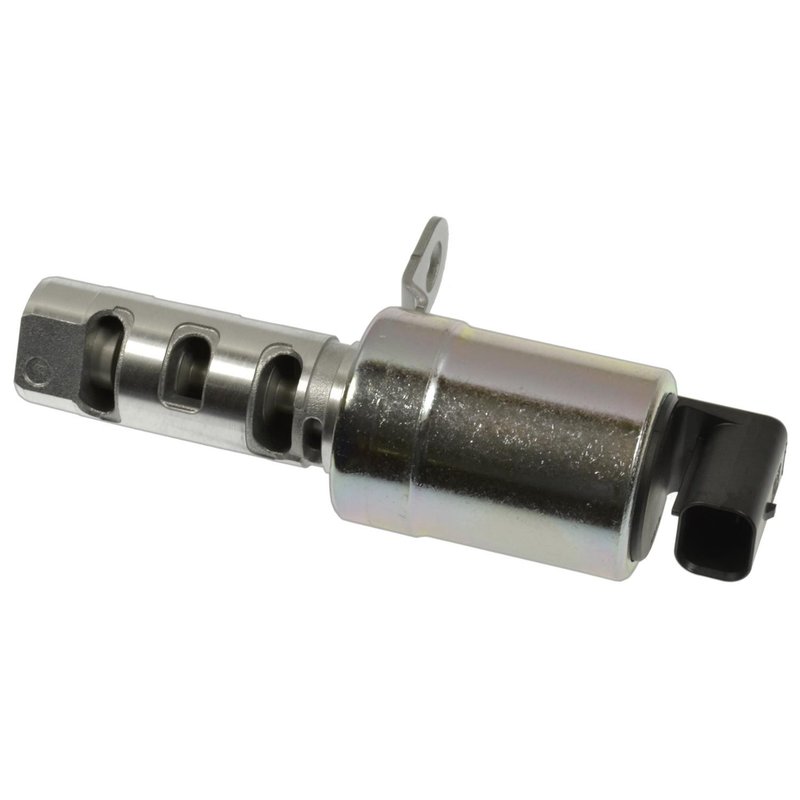

Standard Ignition VVT224 Engine Variable Valve Timing (VVT) Solenoid - Intake

Overview of Standard Ignition VVT Solenoid VVT224

The Standard Ignition Engine Variable Valve Timing (VVT) Solenoid VVT224 is designed to optimize engine performance for select Mazda models. This 12-volt electromagnetic solenoid ensures precise control of the variable valve timing system, contributing to improved fuel efficiency and engine responsiveness.

• Voltage: 12V electromagnetic activation
• Connector: Single rectangular female plug with 2 male blade terminals
• Housing: Durable metal and plastic construction
• Dimensions: 86.1 mm height, 28 mm length and width, 1.2" (28 mm) shaft diameter
• Mounting hardware and gaskets not included

Technical Details and Compatibility

The VVT224 solenoid features a blade terminal type with two pins, designed for a secure electrical connection via a rectangular plug and socket connector. Its metal and plastic housing provides durability under engine bay conditions. This solenoid is compatible with various Mazda vehicles, including the Mazda 3, Mazda 6, CX-3, CX-5, CX-9, and CX-30 models. The precise fitment ensures reliable operation within the variable valve timing system, which adjusts valve timing to optimize engine performance and emissions.

Function and Common Applications

This engine variable valve timing solenoid is essential for controlling oil flow to the camshaft phasers, enabling the engine to adjust valve timing dynamically. It is commonly used to address issues such as:

• Engine performance loss due to improper valve timing
• Rough idling or stalling related to VVT system faults
• Check engine light triggered by VVT solenoid malfunction
• Reduced fuel efficiency caused by timing inconsistencies
• Unusual engine noises linked to valve timing components

Installation Notes and Tips

When installing the Standard Ignition VVT224 solenoid, ensure the engine is cool and disconnect the battery to prevent electrical shorts. The solenoid mounts directly to the engine with the existing hardware; note that mounting hardware and gaskets are not included and may need to be reused or replaced separately. Verify the connector type matches the vehicle’s wiring harness for a secure fit. Proper installation is critical to maintain the integrity of the variable valve timing system.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. While specific warranty details for part number VVT224 should be confirmed at the point of purchase, Standard Ignition typically offers limited warranties covering defects in materials and workmanship. This VVT solenoid is engineered to provide consistent operation within the specified Mazda models, supporting long-term engine efficiency.
