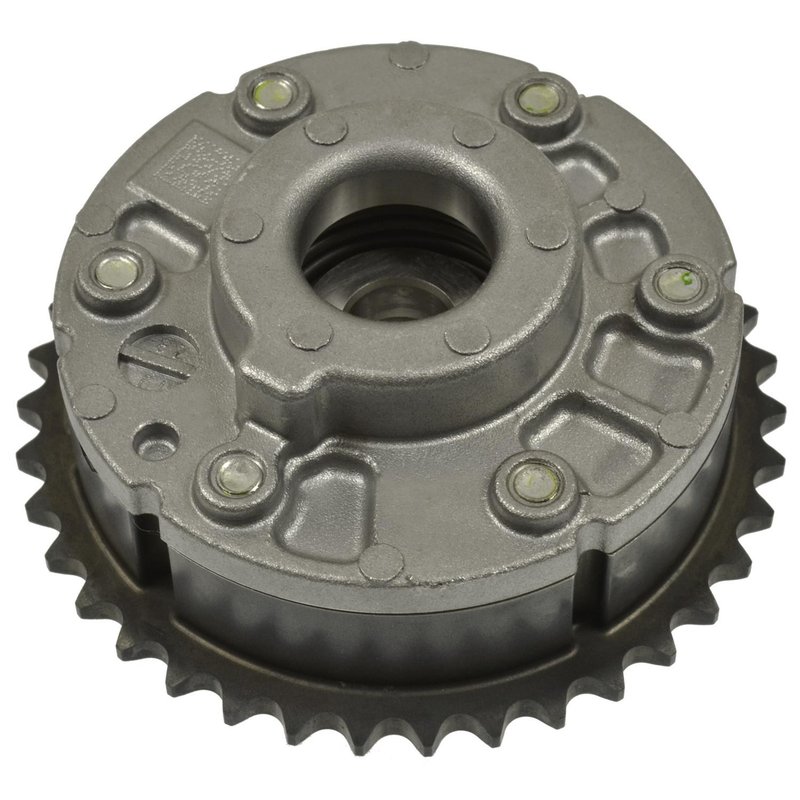

Standard Ignition VVT514 Engine Variable Valve Timing (VVT) Sprocket - Intake

BMW Intake VVT Sprocket

Standard Ignition VVT514 is an engine variable valve timing sprocket for the intake side on select BMW applications. It functions as a camshaft phaser and uses a metal gear construction for precise timing control in the valve train.

Key Features

• Engine variable valve timing (VVT) sprocket for intake camshaft control
• Functions as a camshaft phaser
• Metal gear material for durable valve train service
• Crankshaft gear type
• 38 teeth with 5 timing marks for accurate alignment
• Single-row design with 1 mounting hole
• Inside diameter: 0.91 in. (23.114 mm)
• Outside diameter: 4.07 in. (103.378 mm)
• Thickness: 0.16 in. (4.064 mm)

Detailed Description

Standard Ignition VVT514 is built for BMW intake timing applications that require a variable valve timing sprocket with defined timing marks and a metal gear profile. This part number is used on select BMW 135i, 335i, 535i, X6, Z4, 740i, 740Li, 335is, 1 Series M, and xDrive/xi variants listed below. Standard Ignition VVT514 cross-references 11367540347 and 35-1315 for the same application.

Vehicle Fitment

• Fits 2009-2016 BMW Z4, Intake
• Fits 2011-2013 BMW 335is, Intake
• Fits 2011-2012 BMW 740i, Intake
• Fits 2011-2012 BMW 740Li, Intake
• Fits 2011 BMW 1 Series M, Intake
• Fits 2008-2011 BMW 135i, Intake
• Fits 2007-2011 BMW 335i, Intake
• Fits 2009-2010 BMW 335i xDrive, Intake
• Fits 2008-2010 BMW 535i, Intake
• Fits 2009-2010 BMW 535i xDrive, Intake
• Fits 2008-2010 BMW X6, Intake
• Fits 2007-2008 BMW 335xi, Intake
• Fits 2008 BMW 535xi, Intake

Common Replacement Reasons

• Restores intake camshaft timing control on BMW engines
• Addresses timing correlation faults related to the VVT sprocket
• Replaces worn or damaged cam phaser hardware
• Helps correct rough running caused by timing variation issues
• Supports proper valve timing alignment during engine service

Installation Notes

Verify engine code, intake-side application, and timing mark alignment before installation. Use the listed timing marks and dimensions to confirm the replacement matches the original sprocket. Follow BMW service procedures for camshaft timing setup and final verification after installation.

Quality Assurance

Standard Ignition supplies this VVT sprocket as a direct-fit replacement for the listed BMW applications, with specifications that match the required intake camshaft phaser setup.
