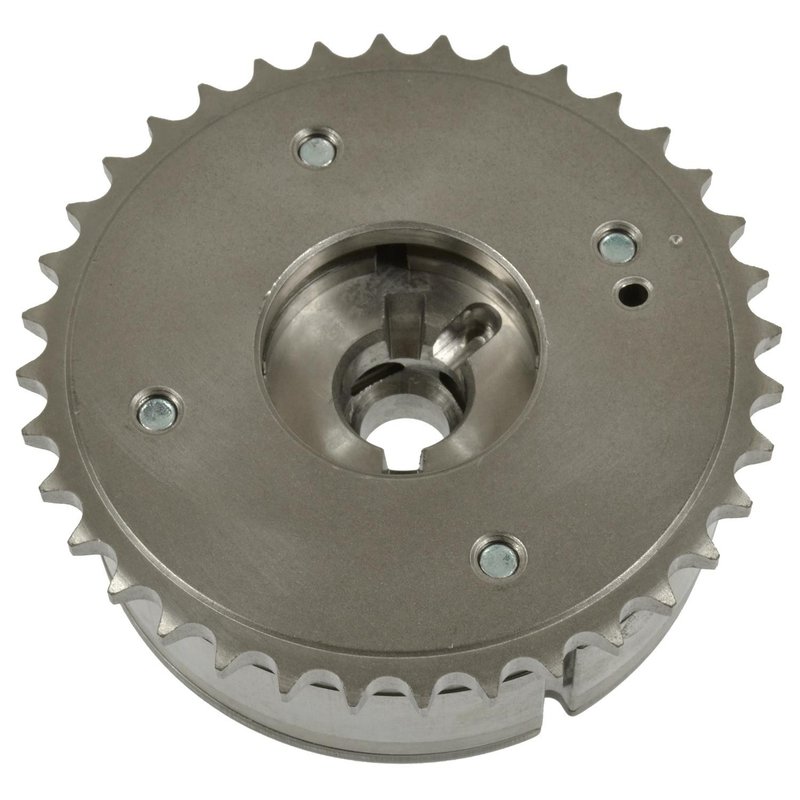

Standard Ignition VVT530 Engine Variable Valve Timing (VVT) Sprocket - Intake or Intake (Left)

Engine Variable Valve Timing Sprocket

Standard Ignition VVT530 is an engine variable valve timing sprocket built for intake cam timing control on select Toyota, Scion, and Pontiac applications. It uses a metal gear construction with a crankshaft gear type, one timing mark, and a keyed notch for accurate alignment during service.

Fits 2009-2019 Toyota Corolla, Intake; Fits 2014 Toyota Matrix, N/A; Fits 2009-2013 Toyota Matrix, Intake (Left); Fits 2008-2012 Scion xD, Intake; Fits 2010 Pontiac Vibe, Intake.

Key Features

• Standard Ignition VVT530 engine variable valve timing sprocket
• Metal gear construction for valve train service
• Crankshaft gear type with one gear and one row
• 36 teeth with one timing mark for alignment reference
• Includes bolt; keyway notch and single mounting hole
• Inside diameter: 1.33 in. (33.782 mm)
• Outside diameter: 3.67 in. (93.218 mm)
• Thickness: 0.16 in. (4.064 mm)

Detailed Description

Standard Ignition VVT530 is a replacement VVT sprocket for intake-side applications on the Toyota Corolla, Toyota Matrix, Scion xD, and Pontiac Vibe. The metal gear design, 36-tooth profile, and single timing mark support precise cam timing setup during engine repair, while the included bolt and keyway notch help match the sprocket to the original mounting and indexing layout. This part cross-references Gates VCP809 for the same application.

Use VVT530 when servicing a worn or noisy variable valve timing sprocket, correcting cam timing concerns, or replacing a damaged intake sprocket during valve train work. It is a direct-fit style component for the listed vehicles and positions, including 2009-2019 Toyota Corolla intake and 2009-2013 Toyota Matrix intake (left).

Common Repair Uses

• Restores proper intake cam timing control
• Addresses rattling or abnormal noise from a worn VVT sprocket
• Helps correct timing-related drivability concerns
• Replaces a damaged or seized variable valve timing gear
• Supports valve train repair after timing service

Installation Notes and Tips

Verify engine code, position, and timing marks before installation. Align the sprocket using the single timing mark and keyway notch, and follow factory torque procedures for the included bolt. Confirm the intake-side application for your specific Corolla, Matrix, xD, or Vibe before reassembly.

Quality Assurance

Standard Ignition supplies replacement engine management and valve train components for service work that follows OE-style fit and function requirements. VVT530 is built to match the listed application details for accurate replacement on the specified vehicles.
