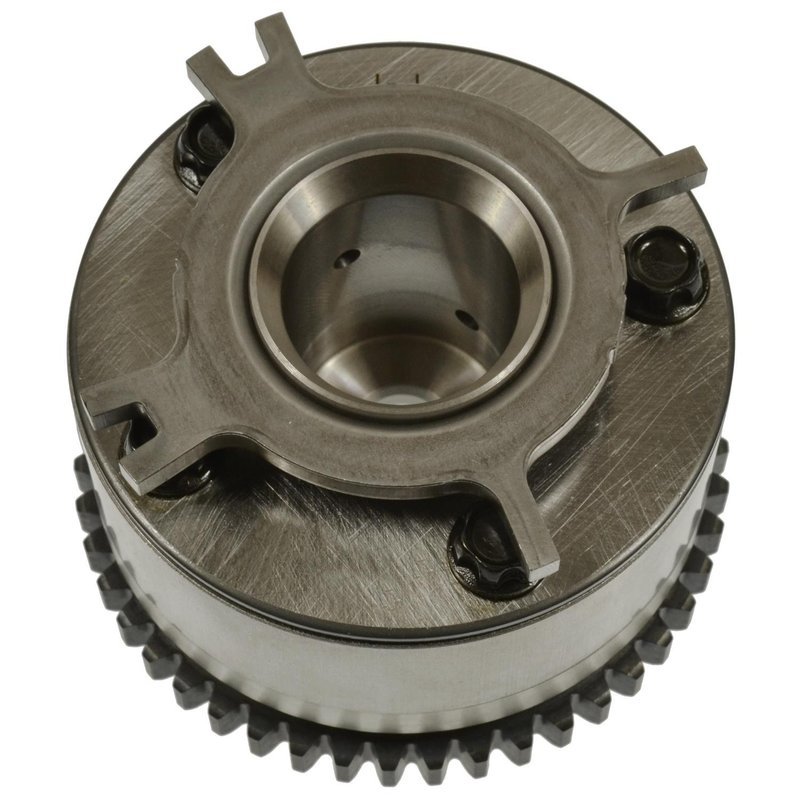

Standard Ignition VVT588 Engine Variable Valve Timing (VVT) Sprocket - Intake (Left)

Engine Variable Valve Timing Sprocket for Nissan Titan XD

Standard Ignition VVT588 is an engine variable valve timing sprocket built for the intake side of select Nissan Titan XD applications. It is a metal crankshaft gear with a keyed notch, four timing marks, and a single-row design for precise timing alignment during service.

Compatible with 2016-2019 Nissan Titan XD, Intake (Left), this Standard Ignition VVT588 sprocket supports accurate cam timing setup on the engine’s variable valve timing system.

Key Features

• Engine variable valve timing sprocket for intake (left) applications
• Metal gear construction for engine timing service
• Crankshaft gear type
• Keyway notch for indexed installation
• Four timing marks for alignment reference
• One mounting hole and one gear row
• 46 teeth with 3.57 in. outside diameter
• 1.14 in. inside diameter and 0.32 in. thickness

Detailed Description

Standard Ignition VVT588 is a replacement VVT sprocket engineered for the intake (left) position on 2016-2019 Nissan Titan XD models. The metal gear construction, 46-tooth profile, and timing reference marks support accurate synchronization of the variable valve timing system during repair or replacement. This part number, VVT588, is also referenced under interchange numbers used for the same application.

This part cross-references 35-1386 and VV5093 for the same application.

Common Problems This Part Can Address

• Worn or damaged variable valve timing sprocket
• Timing mark misalignment during engine service
• Noise or irregular operation from a failing timing gear component
• Incorrect cam timing after VVT-related repairs
• Need for a direct replacement intake left sprocket on Nissan Titan XD engines

Installation Notes and Tips

Verify engine code, timing chain condition, and alignment marks before installation. Use the keyway notch and timing marks to position the sprocket correctly, and confirm the inside diameter, lug hole diameter, and mounting hole location match the original component. Standard Ignition VVT588 is not adjustable and does not include hardware.

Quality Assurance

Standard Ignition supplies replacement engine management and timing components for service applications. VVT588 is built to match the listed fitment and dimensional specifications for 2016-2019 Nissan Titan XD intake (left) service.
