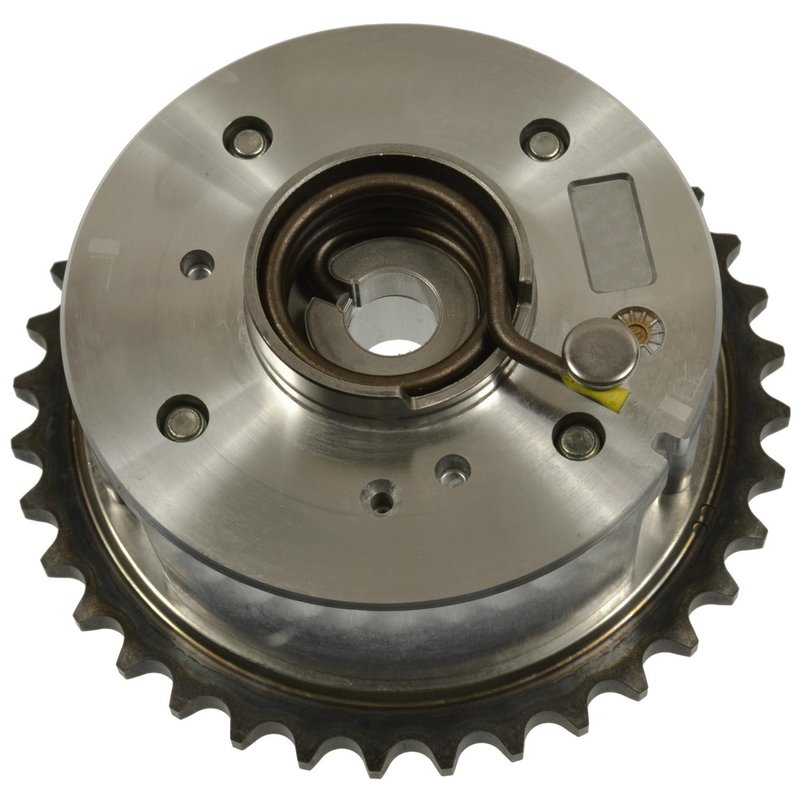

Standard Ignition VVT648 Engine Variable Valve Timing (VVT) Sprocket - Exhaust

Brand Standard Ignition VVT648
Position Exhaust
Functions Engine Variable Valve Timing Sprocket
Fits Genesis, Hyundai, and Kia · 15 vehicles

Metal gear construction. Provides a durable sprocket for variable valve timing operation.

Keyway notch included. Helps ensure accurate alignment during installation.

36-tooth design. Delivers precise timing control in a single-gear layout.

Cross-references Standard Ignition VVT648, 35-1446 and 243703F500 for the same application. See all 6.

$307.17Free shipping
Out of stock
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $307.17
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Engine Variable Valve Timing Sprocket for Exhaust Applications

Standard Ignition VVT648 is an engine variable valve timing sprocket built for exhaust-side applications on select Genesis, Hyundai, and Kia vehicles. It uses a metal gear construction with a crankshaft gear type, 36 teeth, and five timing marks to support accurate cam timing service.

Fits 2017-2020 Genesis G80, exhaust. Fits 2017-2020 Genesis G90, exhaust. Fits 2015-2016 Hyundai Equus, exhaust. Fits 2015-2016 Hyundai Genesis, exhaust. Fits 2015-2016 Kia K900, exhaust. Fits 2014 Hyundai Equus, N/A.

Key Features

  • Standard Ignition VVT648 engine variable valve timing sprocket
  • Metal gear construction for durability in timing system service
  • Crankshaft gear type with one gear and one row
  • 36 teeth with five timing marks for alignment reference
  • Keyway notch included for proper indexing
  • Inside diameter: 1.41 in. (35.814 mm)
  • Outside diameter: 4.38 in. (111.252 mm)
  • Thickness: 0.2 in. (5.08 mm)

Detailed Description

Standard Ignition VVT648 is an exhaust VVT sprocket used in timing system repair on select Genesis G80 and G90, Hyundai Equus and Genesis, and Kia K900 applications. The sprocket features a metal gear, a single mounting hole, a lug hole diameter of 0.49 in. (12.446 mm), and a keyway notch to help maintain correct positioning during installation. Its 36-tooth design and five timing marks provide the reference points needed when servicing variable valve timing components.

This part cross-references 35-1446 and 243703F500 for the same application. Standard Ignition VVT648 is a direct-fit timing component for exhaust-side service where precise cam timing and stable gear engagement are required.

Common Uses

  • Replacing a worn or noisy exhaust VVT sprocket
  • Correcting cam timing concerns after timing system service
  • Addressing timing mark alignment issues during engine repair
  • Restoring variable valve timing operation on affected vehicles
  • Servicing exhaust-side timing components on Genesis, Hyundai, and Kia models

Installation Notes and Tips

  • Verify engine code, model year, and exhaust-side application before installation.
  • Align the five timing marks carefully during timing chain or belt service.
  • Inspect related timing components, guides, and tensioners before reassembly.
  • Confirm the keyway notch and mounting hole alignment prior to final torque.
  • Follow the vehicle service manual for timing procedures and torque specifications.

Quality Assurance

Standard Ignition manufactures replacement engine management and timing components for service applications, and VVT648 is built to match the listed fitment and dimensional requirements for the vehicles shown above.

This part fits 15 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2020GenesisG805.0LV8Exhaust—
2020GenesisG905.0LV8Exhaust—
2019GenesisG805.0LV8Exhaust—
2019GenesisG905.0LV8Exhaust—
2018GenesisG805.0LV8Exhaust—
2018GenesisG905.0LV8Exhaust—
2017GenesisG805.0LV8Exhaust—
2017GenesisG905.0LV8Exhaust—
2016HyundaiEquus5.0LV8Exhaust—
2016HyundaiGenesis5.0LV8Exhaust—
2016KiaK9005.0LV8Exhaust—
2015HyundaiEquus5.0LV8Exhaust—
2015HyundaiGenesis5.0LV8Exhaust—
2015KiaK9005.0LV8Exhaust—
2014HyundaiEquus5.0LV8N/A—
Directly replaces or cross-references 6 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Standard Ignition — VVT64835-1446243703F500ECP1850VV5153VVTB10232
