Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

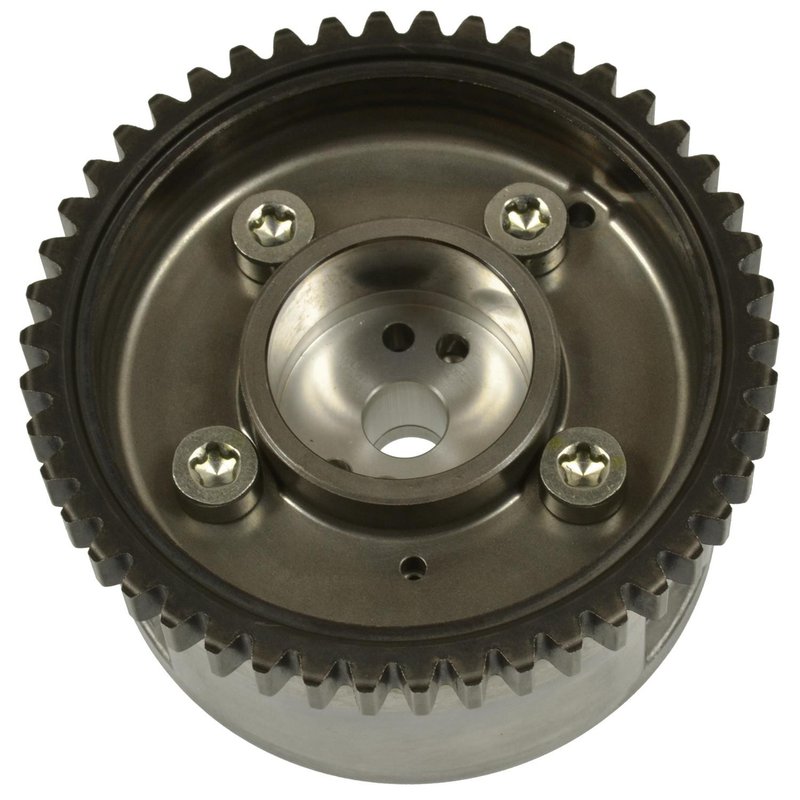

Standard Ignition VVT675 Engine Variable Valve Timing (VVT) Sprocket - Intake
| Brand | Standard Ignition VVT675 |
|---|---|
| Position | Intake |
| Functions | Engine Variable Valve Timing Sprocket |
| Fits | Kia · 2 vehicles |
Crankshaft gear type. Built as a variable valve timing sprocket for precise timing control.
Metal gear construction. Durable material stands up to demanding engine operation.
Four timing marks. Makes alignment easier during installation and service.
Cross-references Standard Ignition VVT675, 3T1107 and 35-1472 for the same application. See all 10.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Standard Ignition VVT675 Intake VVT Sprocket
Standard Ignition VVT675 is an engine variable valve timing sprocket built for the intake side of select applications. It features a metal gear construction, a 46-tooth design, and a single-row layout for precise timing control in the valvetrain.
Fits 2010-2011 Kia Soul, intake. This intake VVT sprocket is a direct-fit option for the 2010-2011 Kia Soul and is identified by part number VVT675.
Key Features
- Engine variable valve timing sprocket for intake cam timing control
- Metal gear material for durable valvetrain service
- 46 teeth with four timing marks for alignment reference
- Crankshaft gear type with one mounting hole
- Single-row design with a 1.25 in. inside diameter
- Outside diameter measures 3.56 in. with 0.32 in. thickness
- Standard Ignition part number VVT675
Product Details
Standard Ignition VVT675 is an engine variable valve timing sprocket engineered for intake camshaft timing applications. The metal gear construction, 46-tooth profile, and four timing marks support accurate timing setup during service. With a 1.25 in. inside diameter and compact 3.56 in. outside diameter, this sprocket is built for the specified engine application and valvetrain geometry. This part cross-references ECP1877 for the same application.
Common Issues This Part Can Address
- Worn or noisy variable valve timing sprocket operation
- Timing correlation concerns related to intake cam timing
- Improper cam phasing caused by a damaged sprocket
- Check engine light conditions tied to VVT timing faults
- Service replacement for a worn intake VVT sprocket on a Kia Soul
Installation Notes and Tips
Verify engine code, timing alignment, and sprocket orientation before installation. Use the four timing marks as reference points during setup, and confirm the crankshaft gear interface, lug hole diameter, and mounting hole location match the original component. After installation, recheck cam timing and clear any stored diagnostic trouble codes as needed. Fits 2010-2011 Kia Soul, intake, and should be installed according to factory service procedures.
Quality Assurance
Standard Ignition manufactures replacement engine components for service applications, and VVT675 is built to match the specified fitment and dimensional requirements for the listed vehicle application.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2011 | Kia | Soul | 1.6L | L4 | Intake | — |
| 2010 | Kia | Soul | 1.6L | L4 | Intake | — |
| No rows match your filter. | ||||||
