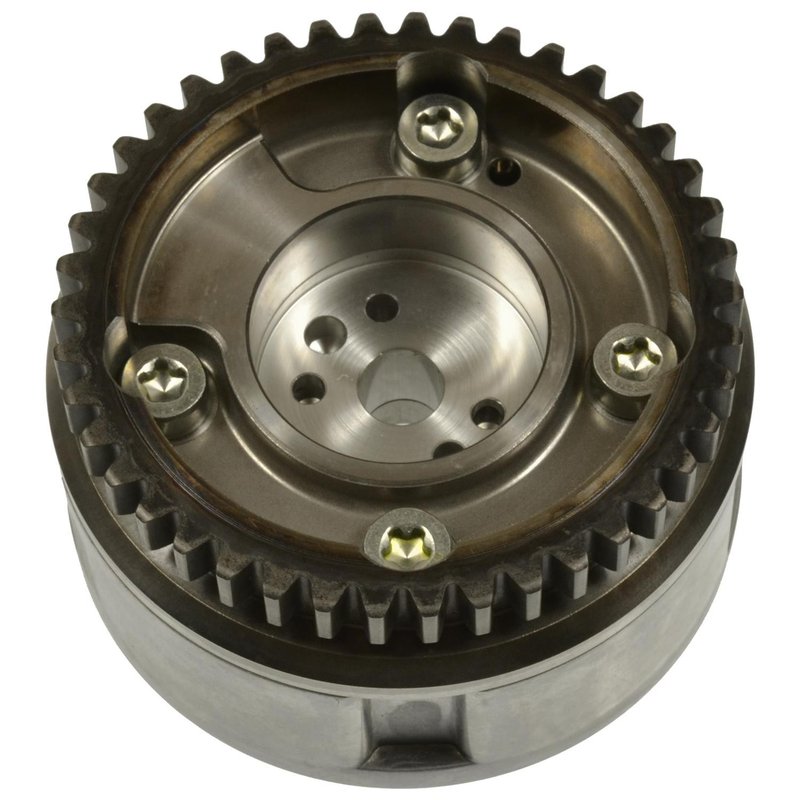

Standard Ignition VVT690 Engine Variable Valve Timing (VVT) Sprocket - Exhaust
| Brand | Standard Ignition VVT690 |
|---|---|
| Position | Exhaust |
| Functions | Engine Variable Valve Timing Sprocket |
| Fits | Hyundai · 3 vehicles |
Metal gear construction. Provides a durable sprocket for variable valve timing operation.
Crankshaft gear type. Built as a VVT sprocket for engine timing control.
Cross-references Standard Ignition VVT690, 35-1487 and 2437003000 for the same application. See all 6.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Standard Ignition VVT690 Exhaust Sprocket
Standard Ignition VVT690 is an engine variable valve timing sprocket built for the exhaust side on select Hyundai Elantra applications. It uses a metal gear construction with a crankshaft gear type, 42 teeth, and six timing marks for accurate timing reference during service.
Fits 2017-2020 Hyundai Elantra, exhaust. This part cross-references ECP1892 and VV5195 for the same application.
Key Features
- Engine variable valve timing sprocket for exhaust-side service
- Metal gear material for durable timing system operation
- 42 teeth with 6 timing marks for alignment reference
- 1.41 in. inside diameter and 3.43 in. outside diameter
- Single-row design with one mounting hole
- Standard Ignition VVT690 replacement part number
Detailed Description
Standard Ignition VVT690 is a VVT sprocket for the exhaust position on 2017-2020 Hyundai Elantra models. The metal gear construction, 0.32 in. thickness, and 0.32 in. tooth width support precise timing system fitment, while the 10.414 mm lug hole diameter and 35.814 mm inside diameter reflect the OE-style dimensions needed for proper installation. Standard Ignition VVT690 is a direct service part for Hyundai Elantra exhaust timing repair where the variable valve timing sprocket must match the original configuration.
Common Issues This Part May Address
- Timing chain or sprocket wear at the exhaust cam timing drive
- Incorrect valve timing caused by a damaged VVT sprocket
- Engine performance concerns related to timing system alignment
- Timing mark visibility issues during cam timing service
- Noisy or inconsistent operation from a worn timing component
Installation Notes and Tips
Verify engine code, timing chain condition, and cam timing alignment before installation. Use the six timing marks as reference points during setup, and confirm the sprocket matches the exhaust position on the vehicle. Standard Ignition VVT690 should be installed with the timing system properly indexed to avoid valve timing errors.
Quality Assurance
Standard Ignition manufactures replacement ignition and engine management components for service applications. VVT690 is built to match the listed fitment and dimensional specifications for 2017-2020 Hyundai Elantra exhaust applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2019 | Hyundai | Elantra | 1.4L | L4 | Exhaust | — |
| 2018 | Hyundai | Elantra | 1.4L | L4 | Exhaust | — |
| 2017 | Hyundai | Elantra | 1.4L | L4 | Exhaust | — |
| No rows match your filter. | ||||||
