Standard Ignition VVT692 Engine Variable Valve Timing (VVT) Sprocket - Intake

Brand Standard Ignition VVT692
Position Intake
Functions Engine Variable Valve Timing Sprocket
Fits Hyundai · 3 vehicles

Metal gear construction. Provides a durable VVT sprocket for precise valve timing control.

Crankshaft gear type. Engineered as a variable valve timing sprocket for the valve train.

42-tooth design. Delivers consistent timing engagement with two timing marks.

Cross-references Standard Ignition VVT692, 35-1489 and 2435003170 for the same application. See all 6.

$242.05Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $242.05
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Standard Ignition VVT692 Intake VVT Sprocket

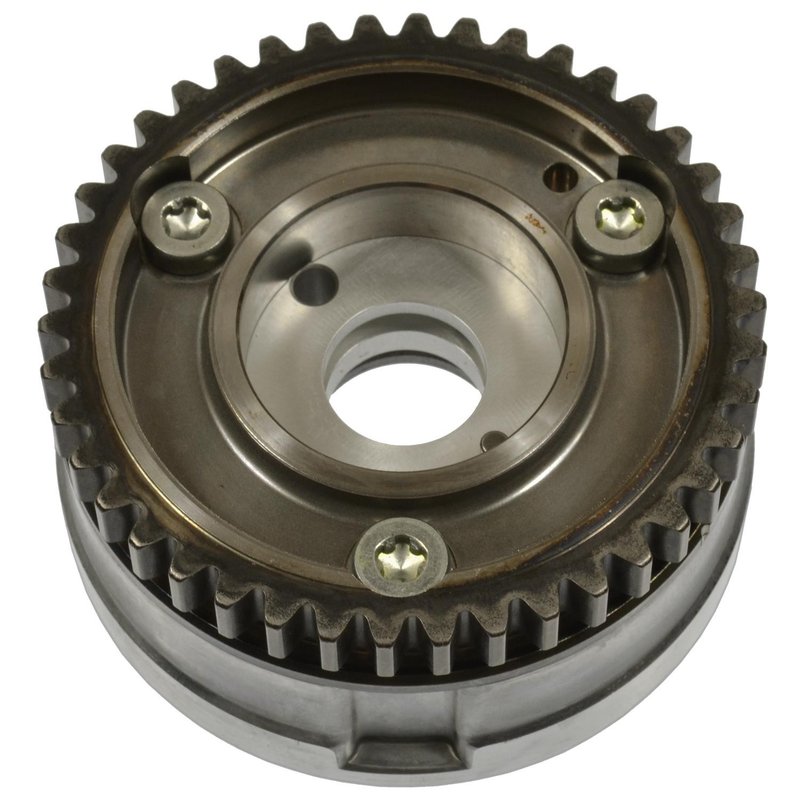

Standard Ignition VVT692 is an engine variable valve timing sprocket built for the intake side of select Hyundai Elantra applications. It features a metal gear construction, 42 teeth, and two timing marks for accurate cam timing reference during service.

Key Features

  • Engine variable valve timing sprocket for intake applications
  • Metal gear material for durable valve train service
  • 42-tooth gear design with one gear and one row
  • Two timing marks for alignment during installation
  • 1.44 in. inside diameter and 3.24 in. outside diameter
  • Standard Ignition VVT692 cross-references OE-style replacement numbers for the same application

Detailed Description

Standard Ignition VVT692 is an intake variable valve timing sprocket engineered for 2017-2019 Hyundai Elantra models. This part number, VVT692, is built with a metal crankshaft-style gear profile and a single mounting hole, supporting precise timing component replacement in the valve train. The 42 teeth, 0.32 in. thickness, and dual timing marks provide the dimensional and visual reference points needed when servicing the VVT system on a Hyundai Elantra intake cam application.

For buyers searching for a 2017 Hyundai Elantra intake VVT sprocket, 2018 Hyundai Elantra intake variable valve timing sprocket, or 2019 Hyundai Elantra intake cam sprocket replacement, VVT692 matches the confirmed fitment listed here. This part cross-references 35-1489 and 2435003170 for the same application.

What This Part Helps Address

  • Rattling or irregular cam timing behavior related to a worn VVT sprocket
  • Check engine light concerns tied to valve timing performance
  • Timing alignment issues during intake cam service
  • Excessive wear in the variable valve timing gear assembly
  • Replacement needs on 2017-2019 Hyundai Elantra intake applications

Installation Notes and Tips

Verify engine code, timing marks, and intake-side orientation before installation. Use the two timing marks as reference points during cam timing setup, and confirm the sprocket matches the original inside diameter, tooth count, and mounting configuration. Because hardware is not listed as included, reuse or source any required fasteners separately according to the vehicle service procedure.

Compatible With 2017-2019 Hyundai Elantra, intake. Standard Ignition VVT692 should be matched to the vehicle’s original VVT sprocket specifications before assembly.

Quality Assurance

Standard Ignition is a recognized aftermarket brand for engine management and ignition components. VVT692 is built to meet the dimensional and application requirements shown above for confirmed Hyundai Elantra intake fitment.

This part fits 3 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2019HyundaiElantra1.4LL4Intake—
2018HyundaiElantra1.4LL4Intake—
2017HyundaiElantra1.4LL4Intake—
Directly replaces or cross-references 6 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Standard Ignition — VVT69235-14892435003170ECP1894VV5197VVTB10260
