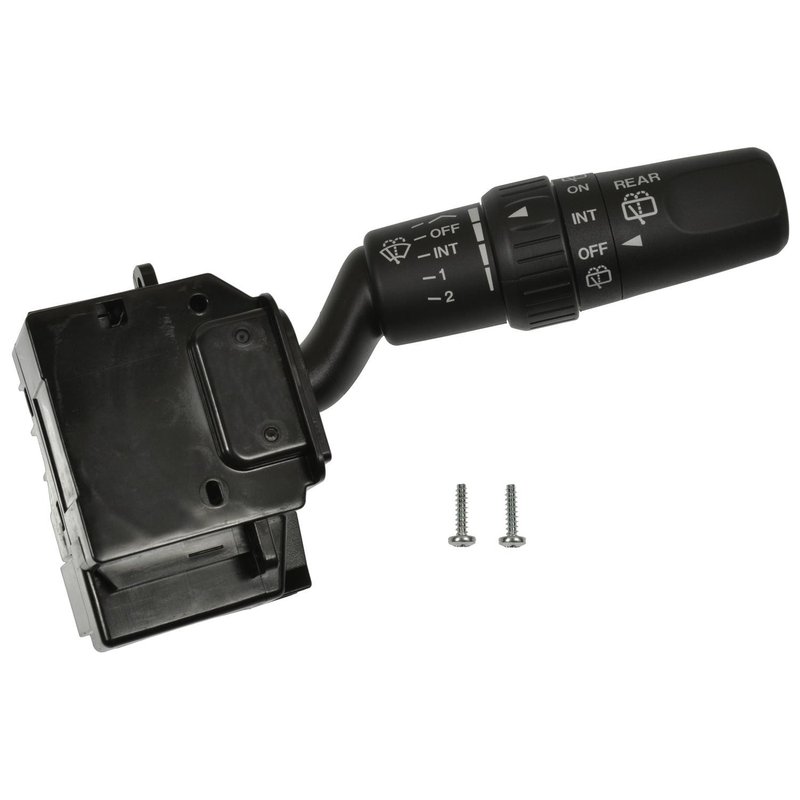

Standard Ignition WP-511 Windshield Wiper Switch
| Brand | Standard Ignition WP-511 |
|---|---|
| Color | Black |
| Connector Gender | Female |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Finish | Plastic |
| Fog Light Operator Included | No |
| Indicator Markings Included | Yes |
| Main Light Operator Included | No |
| New or Reman | New |
| Number Of Connector Cavities | 1 |
| Number Of Wiper Delay Settings | 4 |
| Number Of Wiper Speed Settings | 3 |
| Rear Window Washer Spray Included | Yes |
| Rear Window Wiper Delay Control In | Yes |
| Rear Window Wiper Speed Setting In | Yes |
| Running Light Operator Included | No |
| Terminal Type | Blade |
| Turn Signal Control Included | No |
| Turn Signal/Directional Indicator | No |
| Windshield Washer Spray Included | Yes |
| Windshield Wiper Delay Setting Inc | Yes |
| Windshield Wiper Speed Setting Inc | Yes |
| Fits | Mazda · 3 vehicles |
Multi-function control. Operates wiper delay, speed, and washer functions from one switch.
Indicator markings included. Clear markings help make settings easy to identify at a glance.
New plastic finish. Black plastic construction for a clean, durable look.
Cross-references Standard Ignition WP-511, CC3366128 and SW8435 for the same application. See all 5.
Standard Ignition WP-511 Wiper Switch
The Standard Ignition WP-511 is a new black wiper switch built for direct control of windshield and rear wiper functions. It features a female connector, 11 blade terminals, and clear indicator markings for straightforward operation in the vehicle.
Key Features
- Black plastic finish
- Female connector with 1 connector cavity
- 11 blade terminals
- Windshield washer spray included
- Windshield wiper delay setting included
- Windshield wiper speed setting included
- Rear window washer spray included
- Rear window wiper delay control included
- Rear window wiper speed setting included
- 3 windshield wiper speed settings
- 4 windshield wiper delay settings
- Displayed with indicator markings
Detailed Description
Standard Ignition WP-511 is a replacement wiper switch for vehicles equipped with variable intermittent wipers and rear wiper control. It is listed for 2007-2009 Mazda 5 models without rain sensitive wipers and with variable intermittent wipers. If you are searching for a Mazda 5 wiper switch replacement, WP-511 provides the switch functions needed for windshield washer spray, windshield delay, windshield speed selection, and rear window wiper and washer operation. The part number WP-511 is also referenced by cross numbers such as CC3366128 and SW8435 for the same application.
Common Uses
- Restores windshield wiper delay control
- Restores windshield wiper speed selection
- Restores rear window wiper delay and speed control
- Restores windshield and rear washer spray operation
- Addresses worn, intermittent, or nonresponsive switch inputs
Installation Notes
Verify connector style, terminal count, and vehicle equipment before installation. This switch is specified for 2007-2009 Mazda 5 models with variable intermittent wipers and without rain sensitive wipers. Confirm the existing control layout and indicator markings match the replacement part before final assembly. Professional installation is recommended for accurate electrical fitment and function testing.
Quality Assurance
Standard Ignition supplies replacement electrical components for automotive service applications. WP-511 is a new part built to match the listed vehicle configuration and switch functions for the Mazda 5.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Mazda | 5 | N/A | w/o Rain Sensitive Wipers; w/ Variable Intermittent Wipers |
| 2008 | Mazda | 5 | N/A | w/o Rain Sensitive Wipers; w/ Variable Intermittent Wipers |
| 2007 | Mazda | 5 | N/A | w/o Rain Sensitive Wipers; w/ Variable Intermittent Wipers |
