Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

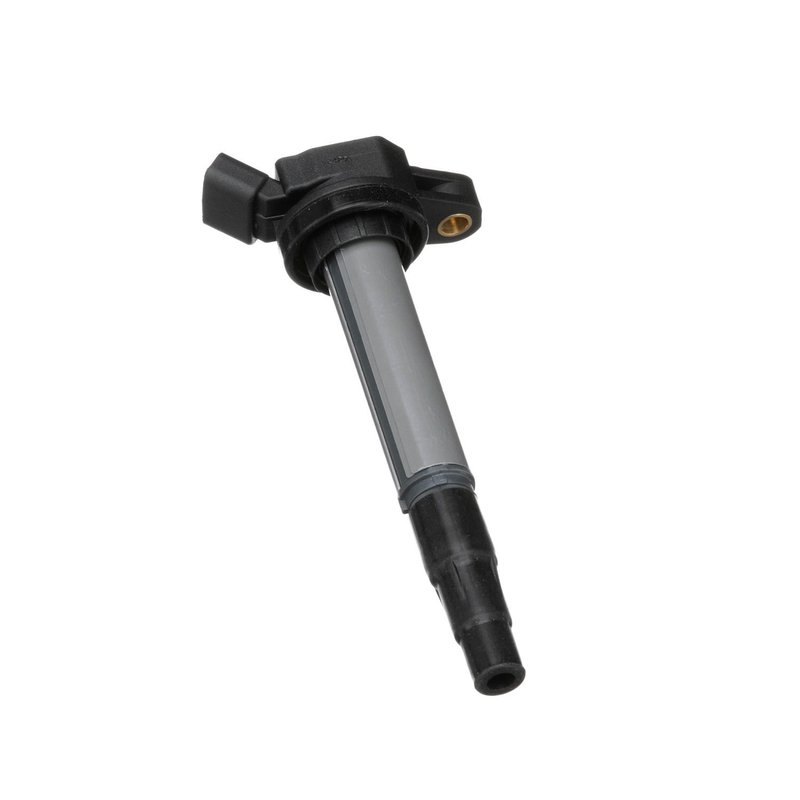

Standard UF596T Ignition Coil
| Brand | Standard UF596T |
|---|---|
| Color | Black , gray |
| Color/Finish | Black |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Hardware Included | No |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Voltage | 12 |
| Fits | Lexus, Pontiac, Scion, and Toyota · 53 vehicles |
Coil-on-plug assembly. Built for strong high-voltage output at all speeds.
Vacuum-sealed epoxy. Helps block moisture intrusion and thermal breakdown.
Reinforced bobbins. Help prevent voltage flashover for longer service life.
Cross-references Delphi GN10341, DENSO Auto Parts 673-1310 and NGK 48942 for the same application. See all 25.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Ignition Coil for Toyota, Lexus, Scion, and Pontiac
Standard UF596T is a coil-on-plug ignition coil built for direct replacement service on a wide range of Toyota, Lexus, Scion, and Pontiac applications. It is engineered for stable high-voltage output, reliable spark delivery, and consistent performance across everyday driving conditions.
- Coil-on-plug ignition coil for direct-fit replacement service
- Neodymium core supports a strong magnetic field and high-voltage output
- High-dielectric epoxy helps resist moisture intrusion and thermal breakdown
- Reinforced bobbins help reduce voltage flashover
- 12-volt electrical design with 1 female connector and 4 male blade terminals
- Black and gray housing finish
Detailed Product Overview
The Standard UF596T ignition coil is built for vehicles that use a coil-on-plug ignition system, including 2009-2019 Toyota Corolla, 2011-2017 Lexus CT200h, 2010-2015 Toyota Prius, 2012-2017 Toyota Prius V, 2009-2014 Toyota Matrix, 2018-2022 Toyota C-HR, 2017-2018 Toyota Corolla iM, 2016 Scion iM, 2008-2014 Scion xD, and 2009-2010 Pontiac Vibe. It is also listed for additional Toyota applications within the same platform family. The UF596T is intended to restore dependable spark performance when the original coil shows wear, heat damage, or electrical instability.
This part cross-references Standard Ignition UF-596 and Delphi GN10341 for the same application.
Common Issues This Part Can Address
- Engine misfire under load or at idle
- Rough running or uneven acceleration
- Hard starting caused by weak spark output
- Check engine light related to ignition coil performance
- Intermittent spark loss from heat or moisture-related coil failure
Installation Notes and Tips
Verify connector style, terminal layout, and vehicle application before installation. Inspect the spark plug, coil boot area, and wiring connector for carbon tracking, corrosion, or heat damage before fitting the new coil. Clear diagnostic trouble codes after installation and confirm proper engine operation during a road test.
Quality Assurance
Standard builds this coil-on-plug assembly with a neodymium core, vacuum-injected high-dielectric epoxy, and reinforced bobbins to support long service life and stable output under demanding operating conditions.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2022 | Toyota | C-HR | 2.0L | L4 | N/A | — |
| 2021 | Toyota | C-HR | 2.0L | L4 | N/A | — |
| 2020 | Toyota | C-HR | 2.0L | L4 | N/A | — |
| 2019 | Toyota | C-HR | 2.0L | L4 | N/A | — |
| 2019 | Toyota | Corolla | 1.8L | L4 | N/A | — |
| 2018 | Toyota | C-HR | 2.0L | L4 | N/A | — |
| 2018 | Toyota | Corolla | — | — | N/A | — |
| 2018 | Toyota | Corolla iM | 1.8L | L4 | N/A | — |
| 2017 | Lexus | CT200h | — | — | N/A | — |
| 2017 | Toyota | Corolla | — | — | N/A | — |
| 2017 | Toyota | Corolla iM | 1.8L | L4 | N/A | — |
| 2017 | Toyota | Prius V | — | — | N/A | — |
| 2016 | Lexus | CT200h | — | — | N/A | — |
| 2016 | Scion | iM | 1.8L | L4 | N/A | — |
| 2016 | Toyota | Corolla | — | — | N/A | — |
| 2016 | Toyota | Prius V | — | — | N/A | — |
| 2015 | Lexus | CT200h | — | — | N/A | — |
| 2015 | Toyota | Corolla | — | — | N/A | — |
| 2015 | Toyota | Prius | — | — | N/A | — |
| 2015 | Toyota | Prius V | — | — | N/A | — |
| 2014 | Lexus | CT200h | — | — | N/A | — |
| 2014 | Scion | xD | — | — | N/A | — |
| 2014 | Toyota | Corolla | — | — | N/A | — |
| 2014 | Toyota | Matrix | — | — | N/A | — |
| 2014 | Toyota | Prius | — | — | N/A | — |
| 2014 | Toyota | Prius V | — | — | N/A | — |
| 2013 | Lexus | CT200h | — | — | N/A | — |
| 2013 | Scion | xD | — | — | N/A | — |
| 2013 | Toyota | Corolla | — | — | N/A | — |
| 2013 | Toyota | Matrix | 1.8L | L4 | N/A | — |
| 2013 | Toyota | Prius | — | — | N/A | — |
| 2013 | Toyota | Prius V | — | — | N/A | — |
| 2012 | Lexus | CT200h | — | — | N/A | — |
| 2012 | Scion | xD | — | — | N/A | — |
| 2012 | Toyota | Corolla | — | — | N/A | — |
| 2012 | Toyota | Matrix | 1.8L | L4 | N/A | — |
| 2012 | Toyota | Prius | — | — | N/A | — |
| 2012 | Toyota | Prius V | — | — | N/A | — |
| 2011 | Lexus | CT200h | — | — | N/A | — |
| 2011 | Scion | xD | — | — | N/A | — |
| 2011 | Toyota | Corolla | — | — | N/A | — |
| 2011 | Toyota | Matrix | 1.8L | L4 | N/A | — |
| 2011 | Toyota | Prius | — | — | N/A | — |
| 2010 | Pontiac | Vibe | 1.8L | L4 | N/A | — |
| 2010 | Scion | xD | — | — | N/A | — |
| 2010 | Toyota | Corolla | 1.8L | L4 | N/A | — |
| 2010 | Toyota | Matrix | 1.8L | L4 | N/A | — |
| 2010 | Toyota | Prius | — | — | N/A | — |
| 2009 | Pontiac | Vibe | 1.8L | L4 | N/A | — |
| 2009 | Scion | xD | — | — | N/A | — |
| 2009 | Toyota | Corolla | 1.8L | L4 | N/A | — |
| 2009 | Toyota | Matrix | 1.8L | L4 | N/A | — |
| 2008 | Scion | xD | — | — | N/A | — |
| No rows match your filter. | ||||||
