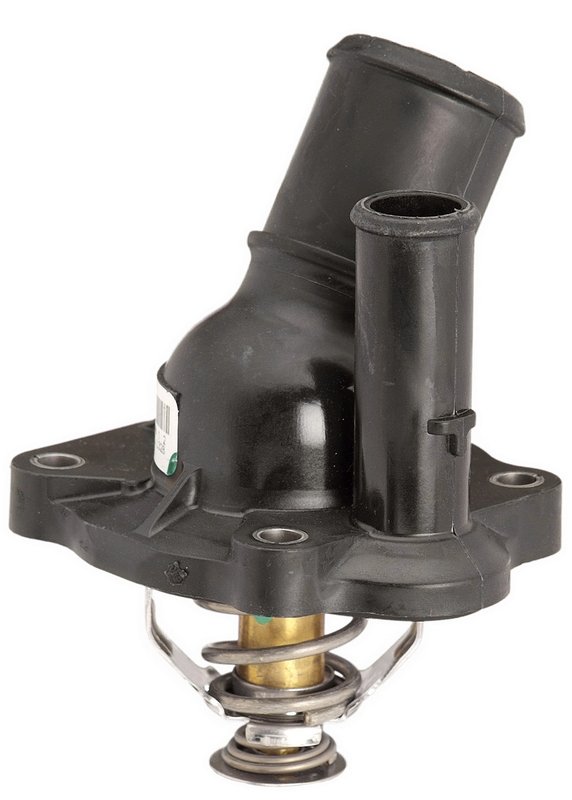

Stant 48708 Engine Coolant Thermostat / Water Outlet Assembly

Integrated Thermostat Housing for Ford and Mazda

Stant 48708 is an engine coolant thermostat and water outlet assembly with the thermostat integrated into the housing. That one-piece design helps simplify service on applications such as Ford Escape, Ford Fusion, Mazda 3, and Mazda 6 cooling systems while maintaining the correct 180-degree operating temperature.

The Integrated Thermostat Housing line from Stant focuses on direct-fit cooling system service parts built around the thermostat housing assembly. For vehicles that use an integrated design, this approach reduces the need to source separate thermostat and housing components during repair.

Key Features

• Part number 48708 thermostat housing assembly
• Integrated thermostat and housing design for simpler installation
• 180-degree thermostat temperature rating
• Durable housing material for long service life
• Seal included for the listed applications
• Bypass plate diameter: 0.9 in.
• Flange diameter with seal: 1.37 in.
• Flange diameter without seal: 1.91 in.
• Height from flange to bottom: 0.4 in.

Detailed Description

Stant 48708 is built as an integrated thermostat housing for cooling system repair where the thermostat is part of the housing assembly. It is specified at 180 degrees and uses a durable construction intended for long-term use in the engine coolant circuit. The compact housing dimensions and integrated layout make it a practical replacement for OE-style water outlet service on Ford, Mazda, Lincoln, and Mercury applications. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Compatible With 2016-2020 Ford Transit Connect, N/A; 2017-2019 Ford Escape, N/A; 2015 Ford Escape, N/A; 2015-2019 Ford Fusion, N/A; 2014-2015 Ford Transit Connect, N/A; 2005-2014 Ford Escape, N/A; 2006-2014 Ford Fusion, N/A; 2014 Mazda 5, N/A; 2007-2013 Mazda 3, N/A; 2012-2013 Mazda 3 Sport, N/A; 2011-2013 Mazda 6, N/A; 2003-2008 Mazda 6, N/A; 2007-2012 Mazda CX-7, N/A; 2003-2011 Ford Focus, N/A; 2001-2011 Ford Ranger, N/A; and additional listed Ford, Mazda, Lincoln, and Mercury applications in the same OE temperature range.

What It Helps Address

• Coolant temperature control concerns tied to a worn thermostat
• Leaking or damaged thermostat housing at the water outlet
• Service jobs where the thermostat and housing are replaced together
• OE-temperature replacement needs for listed Ford and Mazda vehicles
• Cooling system maintenance on high-mileage engines

Installation Notes and Tips

• Verify engine application and match the 180-degree temperature specification before installation.
• Inspect the sealing surfaces and coolant passages for corrosion or debris before fitting the new assembly.
• Use the included seal where specified in the fitment notes.
• Confirm flange and bypass dimensions against the original part when comparing housings.
• Bleed the cooling system after service to remove trapped air and restore proper circulation.

Quality Assurance

Stant manufactures this integrated thermostat housing as a durable replacement cooling component for the listed OE-style applications. Part number 48708 is built to support direct-fit service on compatible Ford, Mazda, Lincoln, and Mercury vehicles with the specified thermostat temperature and housing configuration.
