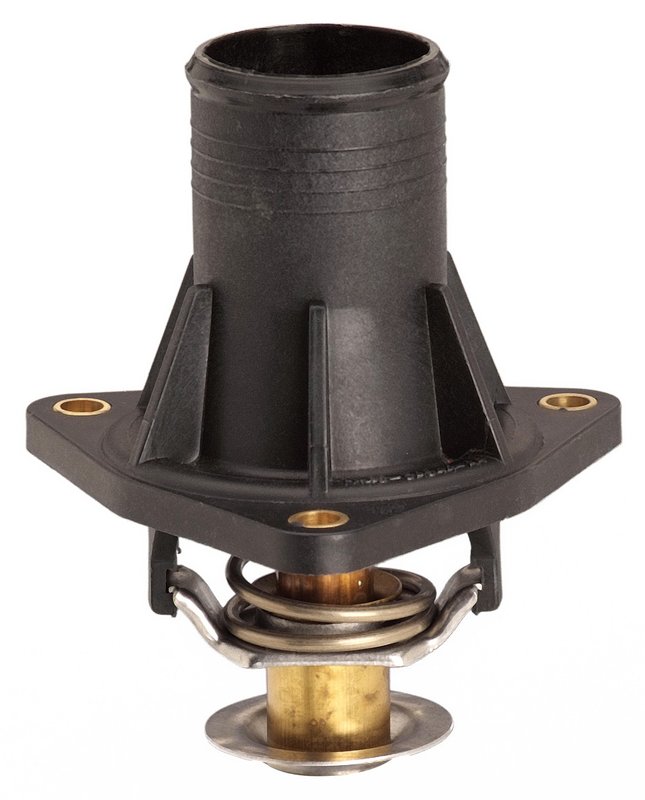

Stant 48788 Engine Coolant Thermostat / Water Outlet Assembly
| Brand | Stant 48788 |
|---|---|
| Bypass Plate Diameter (in) | 1.42 |
| Flange Diameter (With Seal) (in) | 1.48 |
| Flange Diameter (Without Seal) (in) | 2.23 |
| Freight Class | 70 |
| Height from Flange to Bottom (in) | 1.65 |
| Temperature (F) | 180 Degrees |
| Product line | Integrated Thermostat Housing |
| Fits | Jaguar · 7 vehicles |
Integrated thermostat housing. Thermostat and housing are combined for simpler installation.
Durable material. Built for long-lasting service in the cooling system.
180-degree thermostat. Helps regulate coolant temperature at the specified setting.
Stant 48788 Integrated Thermostat Housing
The Stant 48788 integrated thermostat housing combines the thermostat and water outlet housing into one assembly for a cleaner, more direct repair. Built from durable material and set to 180 degrees, it is a practical replacement for 2002-2008 Jaguar X-Type cooling system service.
Key Features
- Integrated thermostat housing design simplifies replacement of the thermostat and water outlet assembly
- 180-degree thermostat temperature for OE-style cooling system operation
- Durable housing material for long service life
- Seal included for the application
- Bypass plate diameter: 1.42 in.
- Flange diameter with seal: 1.48 in.; without seal: 2.23 in.
- Height from flange to bottom: 1.65 in.
Product Details
Stant Integrated Thermostat Housing line products are built to combine key cooling components into a single service part, reducing the number of separate pieces involved in the repair. The Stant 48788 is an engine coolant thermostat / water outlet assembly for the Jaguar X-Type, with the thermostat integrated into the housing to streamline service and help restore proper coolant flow control. This part number, 48788, is specified for 2002-2008 Jaguar X-Type models with OE temperature requirements.
Fits 2002-2008 Jaguar X-Type, N/A. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Cooling System Issues
- Coolant temperature that stays too low or runs outside the OE range
- Leaking water outlet or thermostat housing
- Cracked or worn housing material around the thermostat assembly
- Service delays caused by replacing separate thermostat and housing components
- Cooling system maintenance on a Jaguar X-Type with an integrated thermostat housing
Installation Notes and Tips
Verify the flange dimensions, bypass plate diameter, and 180-degree temperature specification before installation. Inspect the mating surfaces and cooling passages for residue or damage, and confirm the seal seats correctly during assembly. This part number, 48788, is listed for 2002-2008 Jaguar X-Type applications with integrated thermostat housing configuration.
Quality Assurance
Stant manufactures this thermostat housing assembly with durable materials and OE-temperature specifications to support consistent cooling system service on the Jaguar X-Type.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2008 | Jaguar | X-Type | N/A | Temperature 180 Degrees; Seal Included - Seal; OE Temperature; Integrated Thermostat Housing |
| 2007 | Jaguar | X-Type | N/A | Temperature 180 Degrees; Seal Included - Seal; OE Temperature; Integrated Thermostat Housing |
| 2006 | Jaguar | X-Type | N/A | Temperature 180 Degrees; Seal Included - Seal; OE Temperature; Integrated Thermostat Housing |
| 2005 | Jaguar | X-Type | N/A | Temperature 180 Degrees; Seal Included - Seal; OE Temperature; Integrated Thermostat Housing |
| 2004 | Jaguar | X-Type | N/A | Temperature 180 Degrees; Seal Included - Seal; OE Temperature; Integrated Thermostat Housing |
| 2003 | Jaguar | X-Type | N/A | Temperature 180 Degrees; Seal Included - Seal; OE Temperature; Integrated Thermostat Housing |
| 2002 | Jaguar | X-Type | N/A | Temperature 180 Degrees; Seal Included - Seal; OE Temperature; Integrated Thermostat Housing |
