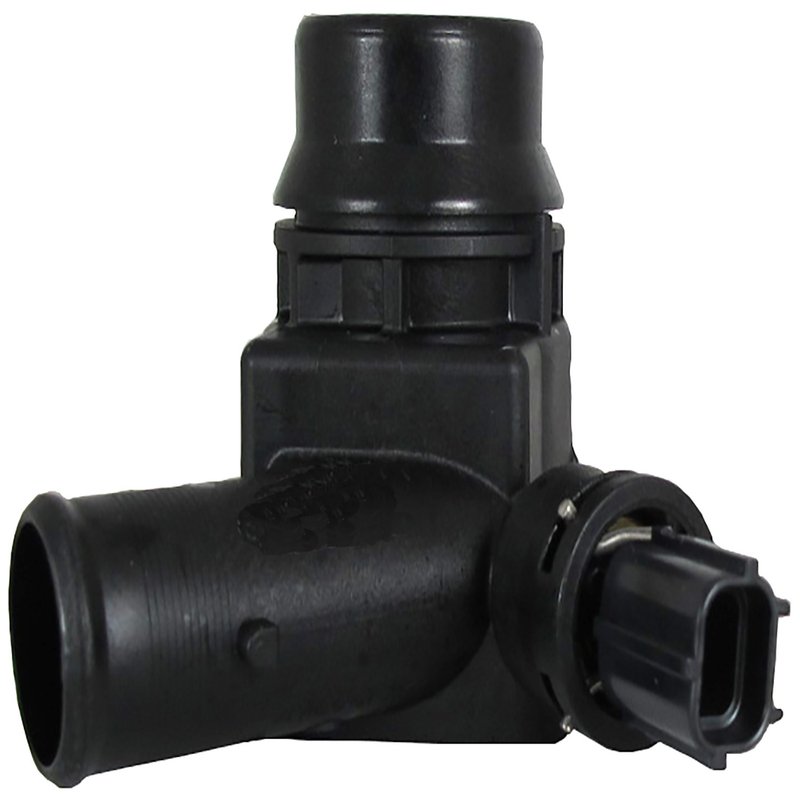

Stant 49449 Engine Coolant Thermostat / Water Outlet Assembly

Integrated Thermostat Housing for Volvo and Land Rover

Stant Part Number 49449 is an engine coolant thermostat and water outlet assembly built with the thermostat integrated into the housing. This layout simplifies service on the cooling system while providing a direct replacement for select Volvo and Land Rover applications, including Volvo S60, XC60, S80, XC70, XC90, V70, V60, and Land Rover LR2.

Key Features

• Integrated thermostat housing design for a streamlined cooling system repair
• 195 degrees F thermostat temperature rating
• Durable housing material for long service life
• Flange diameter with seal: 1.5 in.
• Flange diameter without seal: 2.37 in.
• Height from flange to bottom: 1.35 in.
• Stant 49449 for select Volvo and Land Rover cooling system applications

Product Details

Stant Integrated Thermostat Housing 49449 combines the thermostat and water outlet housing into one assembly, reducing the number of separate components involved in the repair. The 195 degrees F calibration supports proper engine operating temperature for the listed vehicles, while the durable construction is intended for long-term use in the cooling system. This part number 49449 is a direct-fit style solution for drivers servicing a Volvo S60 thermostat housing, Volvo XC60 coolant outlet assembly, or Land Rover LR2 thermostat housing application.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Part Helps Address

• Coolant leaks at the thermostat housing or water outlet
• Temperature control issues caused by a worn thermostat
• Overheating concerns related to a failing cooling system outlet
• Service delays from replacing separate thermostat and housing components
• Fitment issues on select Volvo and Land Rover cooling system repairs

Installation Notes and Tips

Verify the vehicle application before installation and compare flange dimensions, height, and thermostat temperature rating to the original part. Clean the mating surfaces thoroughly and inspect the cooling system for contamination, damaged seals, or related wear before reassembly. For best results, refill and bleed the cooling system according to the vehicle service procedure after installation.

Quality Assurance

Stant manufactures cooling system components with durable materials and integrated designs that support straightforward replacement service. Part Number 49449 is built for select Volvo and Land Rover applications with a 195 degrees F thermostat setting.

• Fits 2011-2016 Volvo S60, N/A; Temperature 195 Degrees; Integrated Thermostat Housing
• Fits 2015-2016 Volvo V60, N/A; Temperature 195 Degrees; Integrated Thermostat Housing
• Fits 2010-2016 Volvo XC60, N/A; Temperature 195 Degrees; Integrated Thermostat Housing
• Fits 2007-2015 Volvo S80, N/A; Temperature 195 Degrees; Integrated Thermostat Housing
• Fits 2008-2015 Volvo XC70, N/A; Temperature 195 Degrees; Integrated Thermostat Housing
• Fits 2007-2014 Volvo XC90, N/A; Temperature 195 Degrees; Integrated Thermostat Housing
• Fits 2008-2012 Land Rover LR2, N/A; Temperature 195 Degrees; Integrated Thermostat Housing
• Fits 2008-2010 Volvo V70, N/A; Temperature 195 Degrees; Integrated Thermostat Housing
