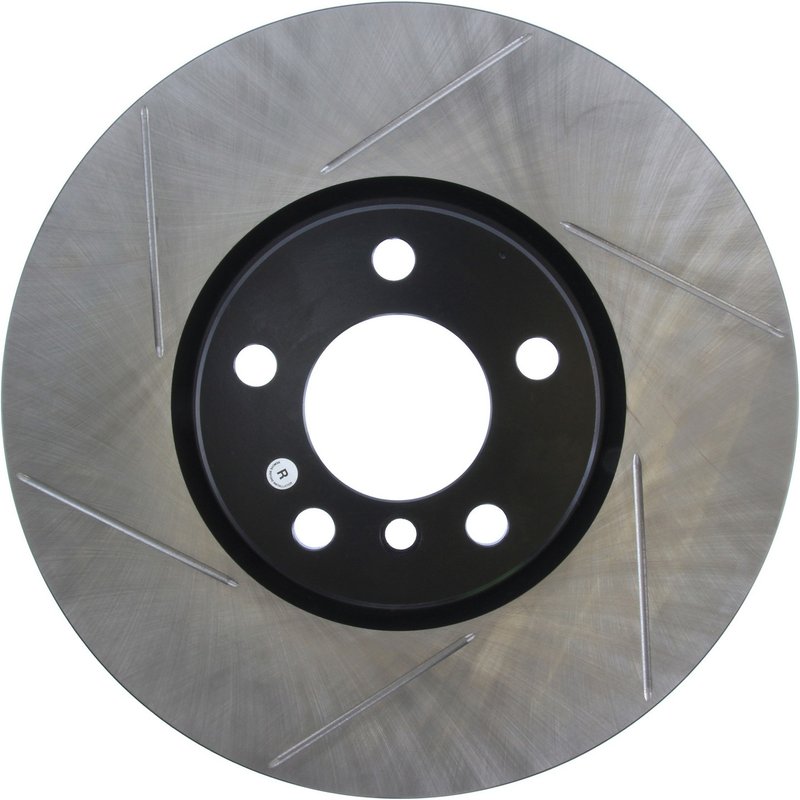

Stoptech 126.34096SR Disc Brake Rotor - Front Right

StopTech Sport Slotted Disc Brake Rotors Overview

The StopTech Sport Slotted Disc Brake Rotors (Part Number 126.34096SR) are engineered for BMW X5 and X6 models, providing reliable braking performance with enhanced heat dissipation. Designed with precision, these rotors offer a vented and slotted surface to maintain consistent stopping power under demanding conditions.

• Compatible with BMW X5 and X6 models
• Vented disc design for improved cooling
• Slotted surface type for enhanced brake pad bite and debris removal
• Coated hat finish to resist corrosion
• Floating disc mounting for better rotor alignment and reduced warping
• Overall diameter of 13.701 inches (348 mm) and nominal thickness of 1.181 inches (30 mm)
• 5 lug holes with a 120 mm bolt circle diameter

StopTech Sport Slotted Disc Brake Rotors Product Line

The StopTech Sport Slotted Disc Brake Rotors line focuses on delivering performance-oriented rotors that balance durability and heat management. This product line features rotors with slotted surfaces and vented designs to optimize braking efficiency and reduce fade during aggressive driving. The 126.34096SR rotor exemplifies these qualities, making it suitable for BMW X5 and X6 drivers seeking consistent brake response.

Technical Specifications and Features

These rotors have a nominal thickness of 1.181 inches (30 mm) and a discard thickness of 1.118 inches (28.4 mm), ensuring a long service life before replacement is necessary. The vented rotor design incorporates straight vanes to facilitate airflow and heat dissipation. The coated hat finish protects against rust and corrosion, extending rotor longevity. The floating disc mounting system allows slight movement between the rotor and hub, reducing stress and improving braking smoothness. The rotor measures 13.701 inches (348 mm) in outside diameter with an overall height of 2.449 inches (62.2 mm). It features five lug holes with a diameter of 0.65 inches (16.5 mm) on a 120 mm bolt circle diameter, compatible with BMW X5 and X6 wheel hubs.

Applications and Problem Solving

• Restores braking performance on BMW X5 and X6 vehicles with worn or damaged rotors
• Reduces brake fade during high-temperature driving conditions
• Improves brake pad bite and debris clearance with slotted surface design
• Minimizes rotor warping and vibration through floating disc mounting
• Protects against corrosion with coated hat finish for extended rotor life

Installation Notes and Tips

• Ensure compatibility with BMW X5 and X6 models before installation
• Inspect brake pads and replace if worn to maintain optimal braking performance
• Follow manufacturer torque specifications for lug nuts and mounting bolts
• Check rotor thickness and discard limits during installation to confirm usability
• Bleed brake system after installation to remove air and ensure proper brake function

Quality Assurance and Warranty

StopTech Sport Slotted Disc Brake Rotors are manufactured to meet strict quality standards for durability and performance. The rotors undergo rigorous testing to ensure consistent thickness, balanced weight (approximately 27.15 lbs or 12.34 kgs), and reliable venting. While specific warranty details are not provided here, StopTech products typically come with manufacturer-backed warranties covering defects in materials and workmanship. Always verify warranty terms with the product supplier.
