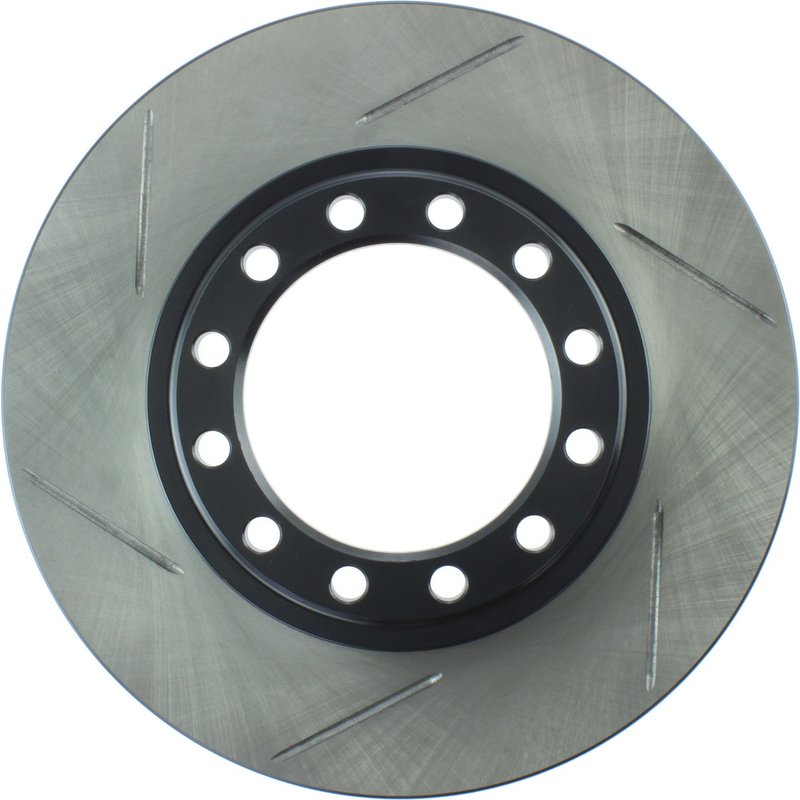

Stoptech 126.43016SR Disc Brake Rotor - Front Right

StopTech Sport Slotted Disc Brake Rotors for Isuzu ELF 200

The StopTech Sport Slotted Disc Brake Rotor, part number 126.43016SR, is engineered specifically for the Isuzu ELF 200. Designed to enhance braking performance, this vented rotor features a slotted surface to improve heat dissipation and maintain consistent stopping power under demanding conditions.

• Compatible with Isuzu ELF 200 models
• Part Number: 126.43016SR
• Vented disc brake rotor with slotted surface
• Coated hat finish for corrosion resistance
• Overall diameter: 293.4 mm (11.551 inches)
• Nominal thickness: 40.0 mm (1.575 inches)
• Mounting bolt hole quantity: 12
• Weight: 12.16 kg (26.75 lbs)

Product Line Overview: StopTech Sport Slotted Disc Brake Rotors

The StopTech Sport Slotted Disc Brake Rotors line is designed to provide improved braking performance through enhanced rotor surface technology. The slotted design helps evacuate gases, dust, and water from the braking surface, reducing brake fade and improving pad bite. This rotor line is vented to promote better heat dissipation, which is critical for maintaining consistent braking during heavy use. The coated hat finish offers additional protection against corrosion, extending rotor life.

Technical Specifications and Features

This StopTech rotor features a vented design with straight vanes to optimize airflow and cooling. The rotor's overall height measures 57.4 mm (2.260 inches), with a center hole diameter of 110 mm (4.331 inches) and a mounting bolt hole circle diameter of 136 mm (5.354 inches). The mounting bolt holes have a diameter of 12.3 mm (0.484 inches), and the rotor mounts behind the hub. The nominal thickness of 40 mm (1.575 inches) ensures durability and consistent performance, while the discard thickness is 37 mm (1.457 inches), indicating when replacement is necessary.

Applications and Problem Solving

• Compatible with Isuzu ELF 200 for direct replacement
• Reduces brake fade during heavy or repeated braking
• Improves heat dissipation to prevent rotor warping
• Slotted surface helps maintain clean pad contact
• Coated finish protects against rust and corrosion

Installation Notes and Tips

Ensure the rotor is installed behind the hub as specified. Verify the mounting bolt hole pattern matches the vehicle’s hub with 12 bolt holes spaced on a 136 mm circle. It is recommended to inspect brake pads and replace them if worn when installing new rotors. Proper torque specifications should be followed to avoid rotor damage or uneven wear. No bearings or ABS tone ring are included with this rotor, so reuse existing components if applicable.

Quality Assurance and Warranty

StopTech Sport Slotted Disc Brake Rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The coated hat finish provides additional corrosion resistance to extend rotor life. While specific warranty details are not provided here, StopTech products typically come with a limited warranty against defects in materials and workmanship. Always consult product documentation or manufacturer resources for complete warranty information.
