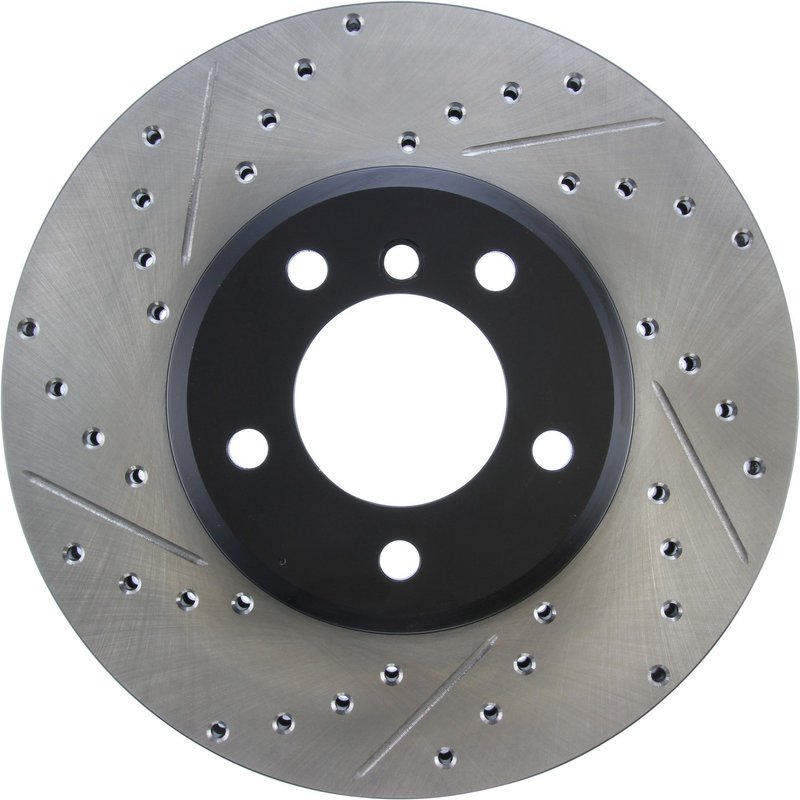

Stoptech 127.34070R Disc Brake Rotor - Front Right

StopTech Sport Cross-Drilled & Slotted Disc Brake Rotors Overview

The StopTech Sport Cross-Drilled & Slotted Disc Brake Rotors (Part Number 127.34070R) are engineered for BMW models including the 525i, 525xi, 528i, 528i xDrive, 528xi, 530i, 530xi, 535i xDrive, and 535xi. These rotors provide reliable braking performance with a vented design and a coated hat finish to resist corrosion.

• Cross-drilled and slotted surface for improved heat dissipation and brake pad cleaning
• Vented rotor design to reduce brake fade during extended use
• Coated hat finish for enhanced corrosion resistance
• Floating disc mounting for better thermal expansion management
• Compatible with 5-lug bolt pattern and 12.756 inch (324 mm) outside diameter

Detailed Product Features and Specifications

This disc brake rotor features a nominal thickness of 1.181 inches (30.000 mm) and a discard thickness of 1.118 inches (28.400 mm), ensuring precise wear limits for safe operation. The rotor’s overall height measures 3.039 inches (77.200 mm), with a center hole diameter of 3.110 inches (79.000 mm) to fit the specified BMW models accurately. The rotor is vented with straight vanes to optimize airflow and cooling, which helps maintain consistent braking performance under demanding conditions. The floating disc mounting design allows for slight movement between the rotor and hub, reducing stress and improving rotor longevity. The rotor weighs approximately 23 lbs (10.45 kgs), balancing durability and performance.

StopTech Sport Cross-Drilled & Slotted Disc Brake Rotors Product Line

The StopTech Sport Cross-Drilled & Slotted Disc Brake Rotors line is designed to enhance braking efficiency through advanced rotor surface technology. The combination of cross-drilled holes and slots improves heat dissipation and helps remove brake dust and gases from the pad surface. This product line is suitable for drivers seeking improved brake response and reduced fade without altering the original braking system architecture.

Applications and Problem Solving

• Reduces brake fade during aggressive driving or extended braking
• Improves wet weather braking by channeling water away from the rotor surface
• Minimizes brake dust buildup on pads for consistent braking feel
• Helps prevent rotor warping through enhanced heat dissipation
• Maintains braking performance on BMW 5 Series models with 5-lug bolt pattern

Installation Notes and Tips

• Ensure rotor discard thickness is checked before installation to confirm suitability
• Use proper torque specifications for the 5-lug mounting bolts on BMW 525i, 528i, 530i, and 535i models
• Verify compatibility with ABS systems as this rotor does not include an ABS tone ring
• Inspect brake pads and hardware during rotor replacement for optimal performance
• Follow manufacturer guidelines for bedding-in new rotors and pads

Quality Assurance and Warranty

StopTech disc brake rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The coated hat finish provides corrosion resistance to extend rotor life. While specific warranty details are not provided here, StopTech products typically come with a limited warranty against defects in materials and workmanship. Always consult the product documentation or manufacturer for exact warranty terms.
