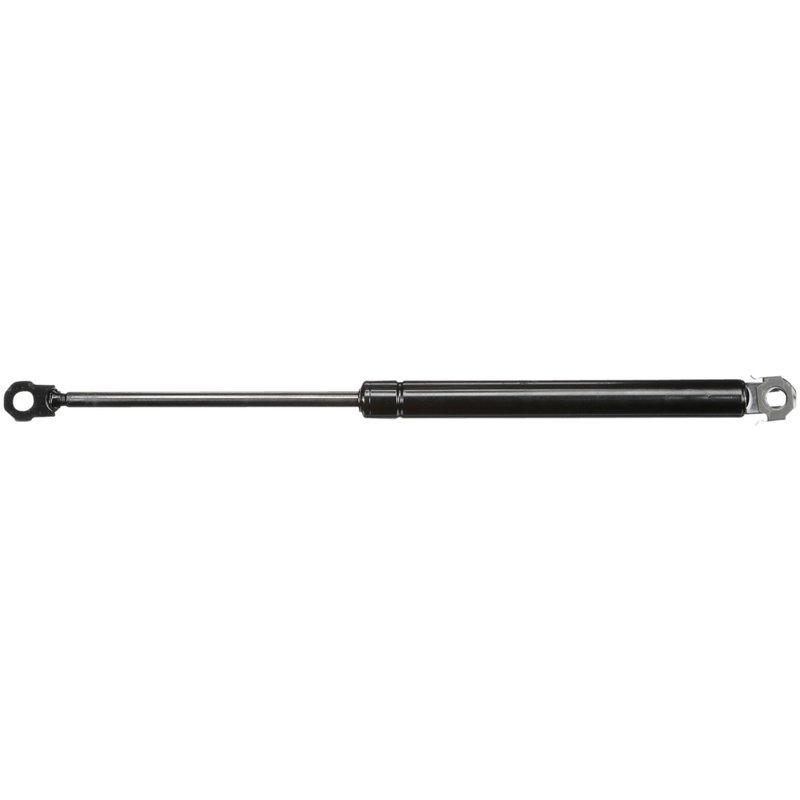

StrongArm 4134 Hood Lift Support

StrongArm Hood Lift Support for Chevrolet Camaro and Pontiac Firebird

The StrongArm 4134 Hood Lift Support is engineered specifically for Chevrolet Camaro and Pontiac Firebird models. Designed to provide reliable hood support, this part ensures smooth and controlled hood operation with precise fitment and durable materials.

• Compressed length: 7.99 inches for optimal fit
• Extended length: 12.87 inches to accommodate full hood travel
• Cylinder outside diameter: 19.0 mm for strength and stability
• Stroke length: 4.88 inches for smooth hood lifting
• Inner shaft diameter: 8.0 mm for durability
• Constructed from steel with a black outer cylinder finish
• Blade end fittings with .312 diameter holes for secure mounting
• Maximum force rating of 84.0 lbs to support hood weight
• Materials include rubber and Teflon components for wear resistance

Durable and Precise Hood Lift Support Design

The StrongArm 4134 hood lift support is a specific fit part designed to replace factory components on Chevrolet Camaro and Pontiac Firebird vehicles. Its steel outer cylinder and black finish provide corrosion resistance and long service life. The blade-type ends with retainer ensure a secure connection to the hood and frame, minimizing movement and noise. With a stroke length of 4.88 inches and a maximum force of 84 pounds, this lift support offers consistent performance during hood opening and closing.

Compatible Applications and Use Cases

This hood lift support is compatible with Chevrolet Camaro and Pontiac Firebird models requiring a specific fit replacement part. It addresses common issues such as:

• Difficulty holding the hood open safely
• Hood closing abruptly or without smooth control
• Worn or leaking original lift supports
• Corrosion or damage to existing hood struts
• Noise or rattling during hood operation

Installation Notes and Tips

• Verify vehicle make, model, and year compatibility before installation
• Use appropriate tools to remove old lift supports carefully
• Ensure blade ends align properly with mounting points and retainers
• Test hood operation after installation to confirm smooth movement
• Lubricate pivot points if necessary for quieter operation

Quality Assurance and Warranty Information

The StrongArm 4134 hood lift support is manufactured with high-quality steel and durable materials such as rubber and Teflon to ensure long-lasting performance. While no internal rebound spring is included, the design meets OEM specifications for strength and reliability. This part is backed by StrongArm's quality standards, providing confidence in fit and function for Chevrolet Camaro and Pontiac Firebird owners.
