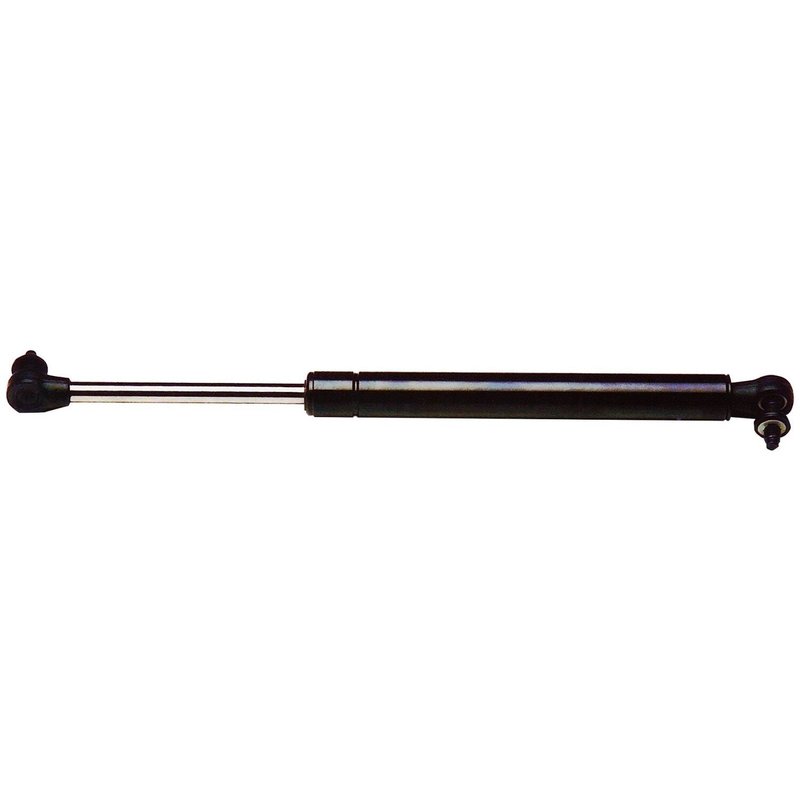

StrongArm 4135 Hatch Lift Support

StrongArm 4135 Gas Strut for Mitsubishi Eclipse

The StrongArm 4135 gas strut is engineered specifically for Mitsubishi Eclipse models, providing reliable support and smooth operation. Designed with durable steel construction and precise dimensions, this gas strut ensures consistent performance for your vehicle's needs.

• Compressed length: 10.13 inches
• Extended length: 14.25 inches
• Stroke length: 4.12 inches
• Cylinder outside diameter: 22.0 mm
• Inner shaft diameter: 10.0 mm
• Outer cylinder color: Black
• Material: Steel cylinder with rubber and Teflon components
• End fittings: Captive ball with nylon socket on both ends
• Maximum force: 220 Newtons
• Specific fit for Mitsubishi Eclipse

This StrongArm 4135 gas strut is constructed with a steel outer cylinder finished in black for corrosion resistance and durability. The internal components include rubber and Teflon materials to reduce friction and wear, while the captive ball nylon socket ends provide secure attachment points. With a stroke length of 4.12 inches and a maximum force rating of 220 Newtons, this gas strut offers reliable support for applications requiring controlled motion and damping.

Applications and Problem Solving

• Supports hatchback or trunk lids on Mitsubishi Eclipse vehicles
• Replaces worn or weak gas struts causing difficulty in opening or holding lids
• Eliminates rattling or loose movement in supported panels
• Restores smooth and controlled lifting and closing action
• Prevents sudden drops or unsafe lid closures

Installation Notes and Tips

Installation of the StrongArm 4135 gas strut requires matching the compressed and extended lengths to the original part. Ensure the captive ball nylon sockets align with the mounting points on the Mitsubishi Eclipse. Use appropriate tools to safely remove the old strut and install the new one without damaging the ball sockets. Verify smooth operation after installation and check for secure attachment at both ends.

Quality Assurance and Warranty

The StrongArm 4135 gas strut is manufactured to meet OEM specifications for fit and function on Mitsubishi Eclipse models. Constructed with high-quality steel and engineered materials, it provides consistent performance under normal operating conditions. While no internal rebound spring is included, the design ensures reliable damping and support. Warranty coverage details should be confirmed with the distributor or manufacturer.
