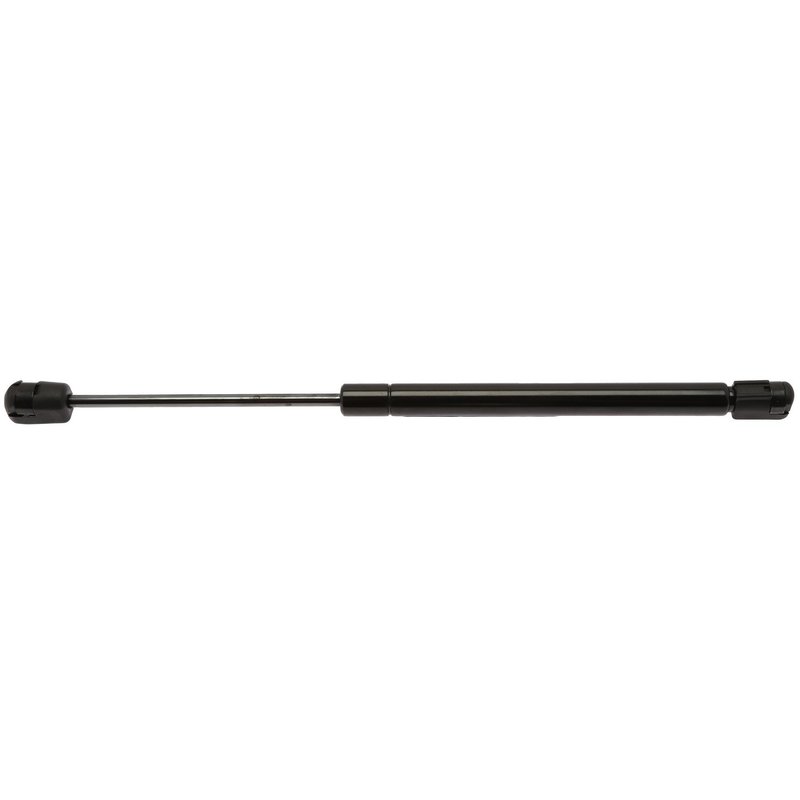

StrongArm 4142 Hood Lift Support

StrongArm Hood Lift Support for Ford Explorer and Explorer Sport Trac

The StrongArm Hood Lift Support part number 4142 is designed specifically for Ford Explorer and Explorer Sport Trac models. This hood lift support provides reliable assistance when opening and holding the hood securely in place during maintenance or inspection.

• Compressed length: 8.9 inches
• Extended length: 13.1 inches
• Cylinder outside diameter: 15.0 mm
• Stroke length: 4.2 inches
• Inner shaft diameter: 6.0 mm
• Steel outer cylinder with black finish
• Ball socket ends with nylon construction (10mm and 8mm)
• Maximum force rating of 61.0 lbs
• Materials include rubber and Teflon components for durability

Technical Details and Construction

The StrongArm 4142 hood lift support features a steel outer cylinder finished in black for corrosion resistance and durability. The gas strut has a compressed length of 8.9 inches and extends up to 13.1 inches, providing a stroke length of 4.2 inches. The inner shaft diameter measures 6.0 mm, ensuring smooth operation. Both ends are equipped with nylon ball sockets sized 10mm and 8mm, designed for secure attachment points on the hood and vehicle frame. The internal rebound spring is not included, focusing on consistent lift force rated at 61 pounds. Rubber and Teflon materials are used in seals and components to reduce wear and maintain performance over time.

Compatible Vehicles and Applications

This hood lift support is a specific fit for Ford Explorer and Explorer Sport Trac models. It is engineered to replace worn or failing hood struts, restoring proper hood operation and safety. The part number 4142 ensures compatibility with these vehicles, providing a direct replacement without modification.

• Supports smooth and controlled hood opening
• Holds hood securely in raised position
• Prevents hood from slamming or falling unexpectedly
• Eliminates difficulty in lifting heavy hood panels
• Reduces wear on hood hinges and latch mechanisms

Installation Notes and Tips

Installation of the StrongArm 4142 hood lift support requires removal of the old strut and attachment of the new unit using the ball socket ends. Ensure the correct orientation of the 10mm and 8mm nylon ball sockets to match the vehicle’s mounting points. It is recommended to support the hood safely during installation to prevent injury. No special tools are typically required beyond standard hand tools for removing retaining clips or bolts. Verify smooth operation after installation and check for secure attachment at both ends.

Quality Assurance and Warranty

StrongArm hood lift supports are manufactured to meet OEM specifications for fit and function. The use of steel cylinders and durable materials like rubber and Teflon ensures long service life under normal operating conditions. While specific warranty details are not provided here, StrongArm products generally come with a limited warranty against defects in materials and workmanship. For warranty information, consult the product packaging or manufacturer documentation.
