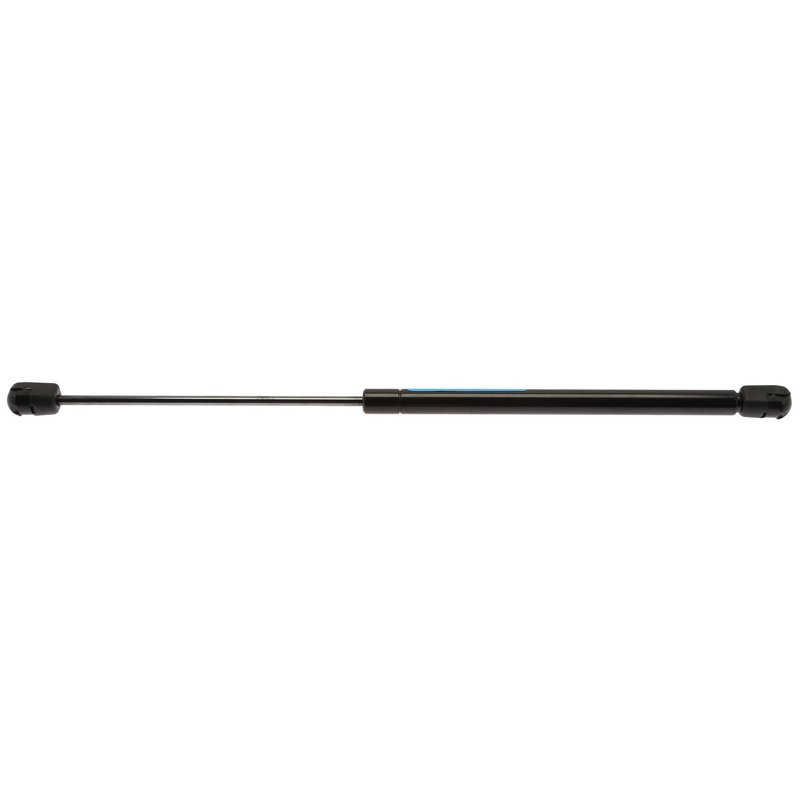

StrongArm 4193 Back Glass Lift Support
| Brand | StrongArm 4193 |
|---|---|
| Compressed Length | 10.45 |
| Cylinder Outside Diameter | 15.0 |
| End 1 Type | Ball Socket (Nylon) 10mm |
| End 2 Type | Ball Socket (Nylon) 10mm |
| Extended Length | 17.05 |
| Inner Shaft Diameter | 6.0 |
| Internal Rebound Spring | No |
| Materials | Rubber |
| Materials | Teflon |
| Maximum Force | 37.0 |
| Outer Cylinder Color | Black |
| Outer Cylinder Material | Steel |
| Stroke Length | 6.6 |
| Universal Or Specific Fit | Specific |
| Fits | Mitsubishi · 5 vehicles |
Specific fit. Custom engineered for a precise replacement.
Steel cylinder. Durable construction with a black finish.
Smooth operation. Built for reliable, longer lasting support.
Cross-references AMS Automotive 4193, 819-6213 and 901801 for the same application. See all 8.
Back Glass Lift Support for Mitsubishi Endeavor
Restore controlled rear glass movement with this StrongArm back glass lift support, part number 4193. It is a specific-fit pressurized cylinder engineered for the 2004-2008 Mitsubishi Endeavor rear window glass, with smooth operation and consistent support for daily use.
Key Features
- Specific-fit back glass lift support for the Mitsubishi Endeavor
- Extended length: 17.05 in.; compressed length: 10.45 in.
- Stroke length: 6.6 in. for rear glass lift travel
- Maximum force rating: 37.0
- Steel outer cylinder with black finish
- 10 mm nylon ball socket ends on both sides
- Rubber and Teflon materials for operating consistency
Product Details
StrongArm 4193 is built as a rear window glass lift support for 2004-2008 Mitsubishi Endeavor models. The pressurized cylinder helps hold the back glass in the open position and provides controlled movement when opening or closing the liftglass. With a specific fit design, this part number 4193 matches the application requirements for the Mitsubishi Endeavor rear glass support system.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems It Can Help Solve
- Rear glass that drops instead of staying open
- Weak or slow liftgate glass movement
- Uneven support when opening the back window glass
- Loss of pressure in the original lift support
- Difficulty holding the rear glass in the raised position
Installation Notes and Tips
Compatible With 2004-2008 Mitsubishi Endeavor rear glass applications. Verify the 10 mm ball socket attachment points and compare compressed and extended length before installation. Replace lift supports in pairs when the vehicle uses matching supports on both sides of the rear glass for balanced operation.
Quality Assurance
StrongArm states that each lift support is custom engineered and manufactured beyond industry standards for smoother operation and longer service life. Part number 4193 is built for specific-fit use on the Mitsubishi Endeavor rear glass application.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2008 | Mitsubishi | Endeavor | N/A | — |
| 2007 | Mitsubishi | Endeavor | N/A | — |
| 2006 | Mitsubishi | Endeavor | N/A | — |
| 2005 | Mitsubishi | Endeavor | N/A | — |
| 2004 | Mitsubishi | Endeavor | N/A | — |
