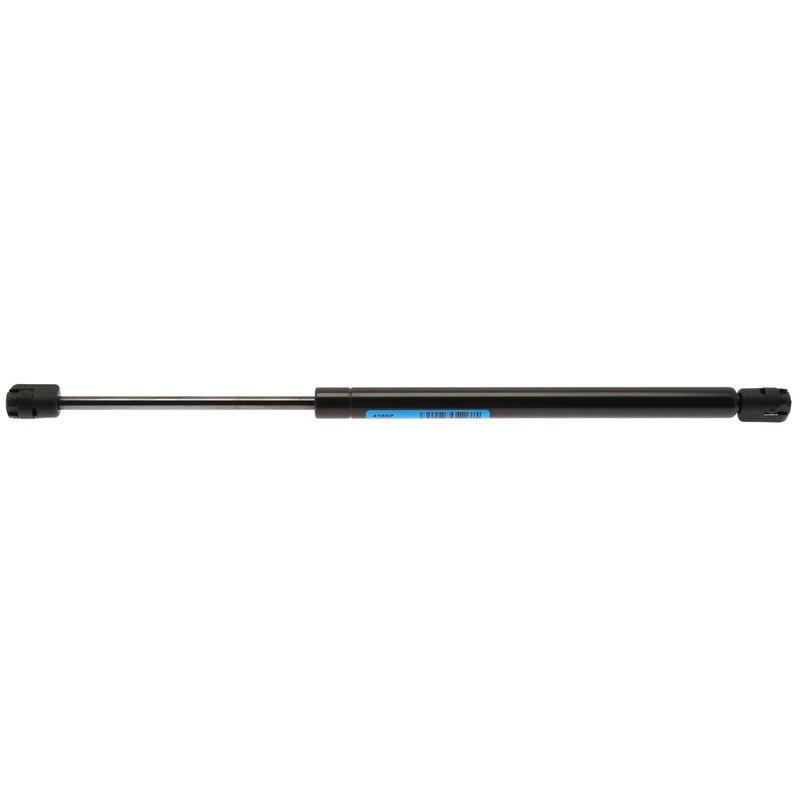

StrongArm 4196 Hatch Lift Support
StrongArm 4196 Lift Support for Toyota Celica
StrongArm 4196 is a specific-fit lift support for the rear hatch on select 2000-2005 Toyota Celica models with a spoiler or rear wiper. It is built as a pressurized gas cylinder to restore controlled hatch movement and steady open-position support.
Key Features
- Specific-fit replacement for select Toyota Celica hatch applications
- Compressed length: 10.88 in.; extended length: 16.48 in.; stroke length: 5.6 in.
- Black steel outer cylinder with rubber and Teflon materials
- 10 mm nylon ball socket ends on both sides
- Maximum force rating: 129.0
- Cross-references Monroe Shocks & Struts 172286 for the same application
Product Details
This StrongArm lift support is engineered for the 2000-2005 Toyota Celica hatch lift support application with spoiler or wiper equipment. Part number 4196 uses a 19.0 mm cylinder outside diameter and a 10.0 mm inner shaft diameter, with a specific-fit design that matches the original mounting style. StrongArm manufactures its lift supports beyond standard industry requirements to deliver consistent operation and long service life. The 4196 is also referenced by interchange numbers including D4196 and 510-1055.
Common Issues It Can Help Solve
- Hatch that drops instead of staying open
- Slow or uneven hatch lift action
- Weak support when opening the rear glass or hatch
- Excess effort needed to raise the hatch
- Worn gas strut performance on a Toyota Celica hatch
Installation Notes
Fits 2000-2005 Toyota Celica, hatch lift support for vehicles with spoiler or wiper. Verify the 10 mm ball socket ends and overall length before installation. Lift supports should be replaced in pairs to maintain balanced hatch support and consistent operation. Confirm the application matches your Toyota Celica before ordering StrongArm 4196.
Quality Assurance
StrongArm custom engineers its lift supports and manufactures them to exceed industry standards for smoother operation and longer-lasting performance.
| Brand | StrongArm |
|---|---|
| Part Number | 4196 |
| Compressed Length | 10.88 |
| Cylinder Outside Diameter | 19.0 |
| End 1 Type | Ball Socket (Nylon) 10mm |
| End 2 Type | Ball Socket (Nylon) 10mm |
| Extended Length | 16.48 |
| Inner Shaft Diameter | 10.0 |
| Internal Rebound Spring | No |
| Materials | Rubber |
| Materials | Teflon |
| Maximum Force | 129.0 |
| Outer Cylinder Color | Black |
| Outer Cylinder Material | Steel |
| Stroke Length | 5.6 |
| Universal Or Specific Fit | Specific |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Toyota | Celica | N/A | Hatch Lift Support for vehicles with Spoiler or Wiper |
| 2004 | Toyota | Celica | N/A | Hatch Lift Support for vehicles with Spoiler or Wiper |
| 2003 | Toyota | Celica | N/A | Hatch Lift Support for vehicles with Spoiler or Wiper |
| 2002 | Toyota | Celica | N/A | Hatch Lift Support for vehicles with Spoiler or Wiper |
| 2001 | Toyota | Celica | N/A | Hatch Lift Support for vehicles with Spoiler or Wiper |
| 2000 | Toyota | Celica | N/A | Hatch Lift Support for vehicles with Spoiler or Wiper |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
