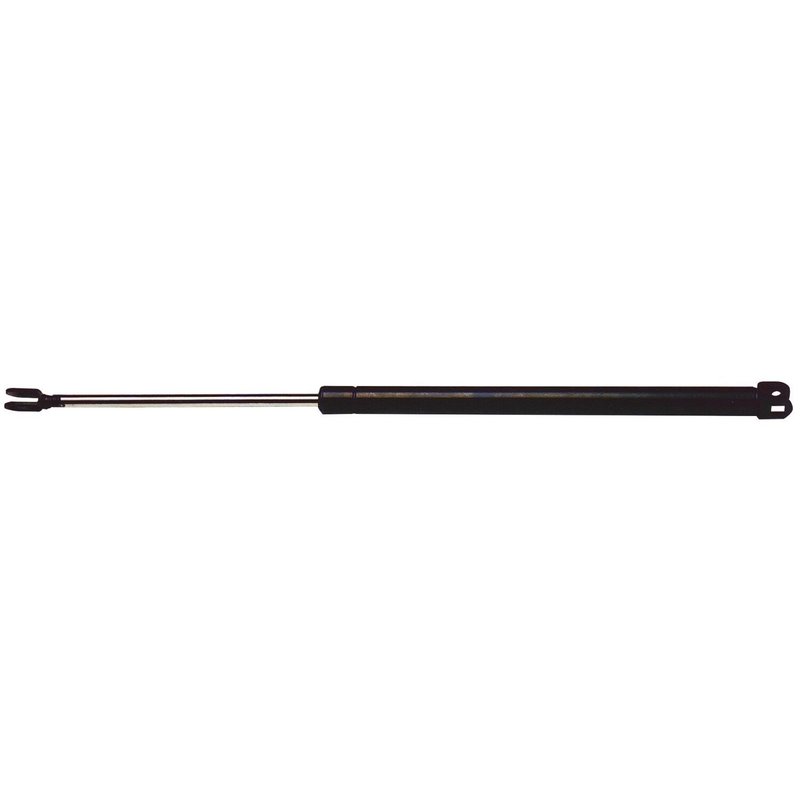

StrongArm 4286 Hatch Lift Support
| Brand | StrongArm 4286 |
|---|---|
| Compressed Length | 16.07 |
| Cylinder Outside Diameter | 22.0 |
| End 1 Type | U-Blade |
| End 2 Type | U-Blade |
| Extended Length | 23.94 |
| Inner Shaft Diameter | 10.0 |
| Internal Rebound Spring | No |
| Materials | Rubber |
| Materials | Teflon |
| Maximum Force | 169.0 |
| Outer Cylinder Color | Black |
| Outer Cylinder Material | Steel |
| Stroke Length | 7.87 |
| Universal Or Specific Fit | Specific |
| Fits | Toyota · 7 vehicles |
Specific fit. Custom engineered for a precise replacement.
Steel cylinder. Built with a black steel body for durable support.
U-blade ends. Uses U-blade connections for straightforward installation.
Cross-references AMS Automotive 4286, Dorman - First Stop C95768 and 510-707 for the same application. See all 8.
StrongArm 4286 Lift Support for Toyota 4Runner
StrongArm 4286 is a specific-fit lift support for the hood, hatch, or rear glass application listed for 1996-2002 Toyota 4Runner. It uses a pressurized cylinder design to provide controlled opening and holding force, with dimensions and end fittings matched to the application for consistent operation.
Key Features
- Specific-fit lift support for 1996-2002 Toyota 4Runner
- Extended length: 23.94 in.; compressed length: 16.07 in.
- Stroke length: 7.87 in. with maximum force rated at 169.0
- Steel outer cylinder with black finish
- U-blade end fittings on both ends
- Rubber and Teflon materials used in the support construction
Detailed Description
StrongArm 4286 is engineered as a direct replacement lift support for the Toyota 4Runner platform listed in the fitment data. The pressurized cylinder helps maintain steady support during opening and closing, while the specific-fit design and U-blade ends simplify matching the original application. This part cross-references Dorman - First Stop C95768 for the same application.
For buyers searching for a 1996-2002 Toyota 4Runner hood lift support, rear hatch strut, or rear window glass support, StrongArm 4286 provides the dimensions and force rating needed for a proper OE-style replacement. The steel cylinder body and internal sealing materials are selected for smooth movement and consistent support performance.
What It Helps Solve
- Weak or failing hood support on a Toyota 4Runner
- Rear hatch that drops instead of staying open
- Rear glass support that no longer holds position
- Uneven or inconsistent lift assist during opening
- Noise or rough movement from worn gas struts
Installation Notes and Tips
Verify the vehicle year and application before ordering. StrongArm recommends replacing lift supports in pairs to maintain balanced operation and reliable holding force. Confirm the compressed length, extended length, stroke, and U-blade end style against the original part before installation on your 1996-2002 Toyota 4Runner.
Quality Assurance
StrongArm states that each lift support is custom engineered and manufactured beyond industry standards for smoother operation and longer service life. Part number 4286 is built to match the listed fitment and application requirements for the Toyota 4Runner.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2002 | Toyota | 4Runner | N/A | — |
| 2001 | Toyota | 4Runner | N/A | — |
| 2000 | Toyota | 4Runner | N/A | — |
| 1999 | Toyota | 4Runner | N/A | — |
| 1998 | Toyota | 4Runner | N/A | — |
| 1997 | Toyota | 4Runner | N/A | — |
| 1996 | Toyota | 4Runner | N/A | — |
| No rows match your filter. | ||||
