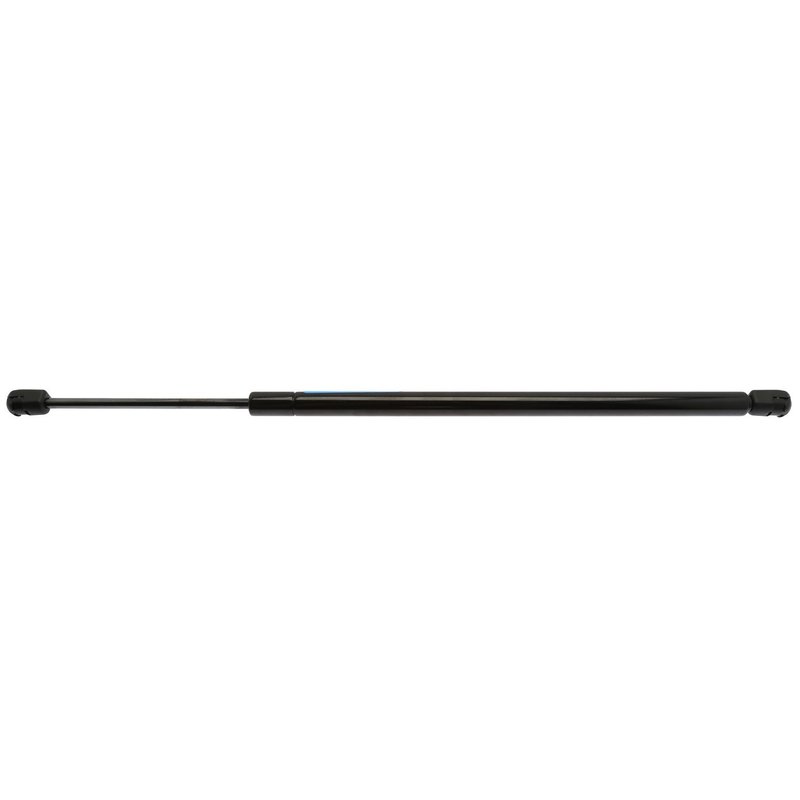

StrongArm 4294 Back Glass Lift Support

StrongArm Back Glass Lift Support for Honda CR-V

The StrongArm 4294 Back Glass Lift Support is engineered specifically for Honda CR-V models, providing reliable support and smooth operation for your vehicle's rear window. Designed with durable materials and precise dimensions, this lift support ensures consistent performance and longevity.

Key Features of StrongArm 4294 Back Glass Lift Support

• Compressed length: 16.25 inches for accurate fitment
• Extended length: 21.25 inches with a 5.0-inch stroke length
• Outer cylinder diameter: 19.0 mm made from steel with a black finish
• Inner shaft diameter: 8.0 mm for strength and durability
• Ball socket ends (nylon) 10mm on both sides for secure attachment
• Materials include rubber and Teflon components for smooth operation
• Maximum force rating of 42.0 lbs to support rear glass weight
• Specific fit designed exclusively for Honda CR-V models

Detailed Description

The StrongArm 4294 Back Glass Lift Support is a vehicle-specific component designed to replace the factory lift support on Honda CR-V models. Its steel outer cylinder with a black finish offers corrosion resistance and structural integrity. The 16.25-inch compressed length and 21.25-inch extended length with a 5-inch stroke ensure proper fit and function. Both ends feature 10mm nylon ball sockets that provide secure mounting points while reducing wear and noise. The internal construction includes rubber and Teflon materials to facilitate smooth movement without an internal rebound spring, maintaining consistent pressure and support. Rated for a maximum force of 42 lbs, this lift support is engineered to handle the weight of the rear glass reliably.

Common Applications and Issues Addressed

• Supports the rear lift glass on Honda CR-V models for smooth opening and closing
• Replaces worn or failing lift supports that cause the rear window to sag or close abruptly
• Eliminates rattling or loose rear glass due to weakened gas struts
• Restores proper lift assist function for safe and controlled rear window operation
• Prevents damage to rear glass hinges caused by insufficient support

Installation Notes and Tips

• Ensure vehicle is parked on a level surface and rear glass is supported during installation
• Remove old lift support by detaching ball socket ends carefully to avoid damage
• Install StrongArm 4294 by snapping ball socket ends onto mounting studs securely
• Verify full range of motion and proper support after installation
• Use gloves and safety glasses to protect hands and eyes during replacement

Quality Assurance and Warranty

StrongArm lift supports are manufactured to meet OEM specifications for fit and function. The 4294 Back Glass Lift Support undergoes rigorous quality control to ensure durability and consistent performance. While specific warranty details are not provided, StrongArm products typically come with a limited warranty against defects in materials and workmanship. For exact warranty terms, consult the product documentation or manufacturer.
