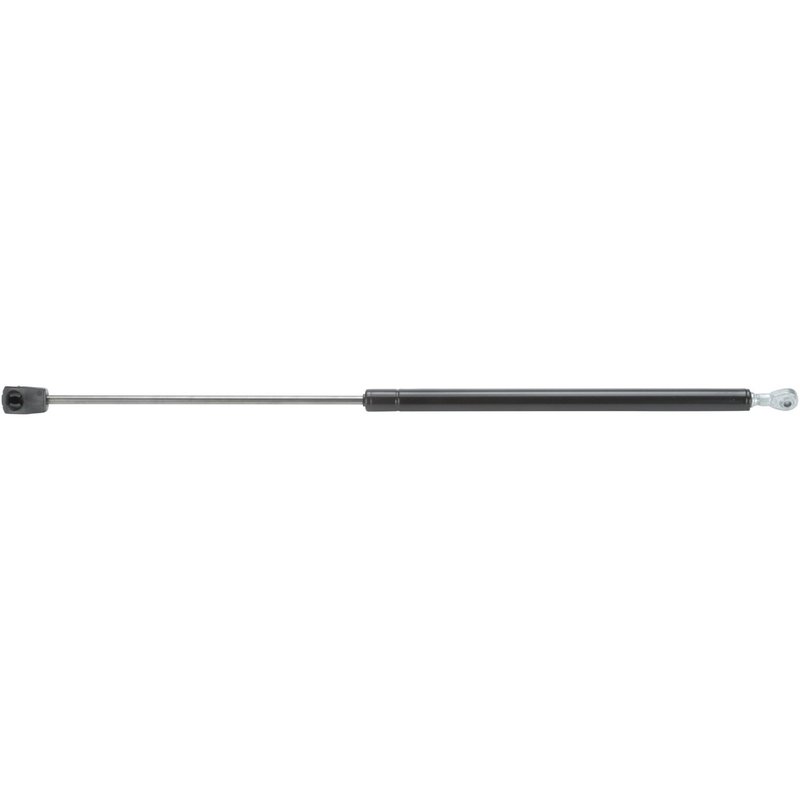

StrongArm 4316 Back Glass Lift Support

Back Glass Lift Support for Dropgate Applications

StrongArm 4316 is a specific-fit back glass lift support for select Chevrolet Blazer, GMC Jimmy, and Oldsmobile Bravada models with a dropgate. It uses a pressurized cylinder design to help hold rear window glass in the open position and deliver controlled movement during operation.

Key Features

• Specific-fit rear glass lift support for targeted vehicle applications
• Extended length: 19.01 in; compressed length: 11.45 in
• Stroke length: 7.56 in for measured opening and closing travel
• Maximum force rating: 42.0
• Steel outer cylinder with black finish
• Ball socket (nylon) 16 degree end and swivel eyelet end
• Rubber and Teflon materials for smooth operation and wear resistance
• No internal rebound spring

Detailed Description

StrongArm 4316 back glass lift support is engineered for rear window glass service on 1995-2005 Chevrolet Blazer with dropgate, 1995-2001 GMC Jimmy with dropgate, and 1996-2001 Oldsmobile Bravada with dropgate. This part number 4316 is built as a specific-fit replacement, with dimensions and end fittings matched to the application for consistent rear glass support. StrongArm manufactures its lift supports to exceed typical industry standards for smoother operation and longer service life. This part cross-references Monroe Shocks & Struts 172286 for the same application.

What It Helps Address

• Rear glass that will not stay open on a Chevrolet Blazer, GMC Jimmy, or Oldsmobile Bravada
• Slow, weak, or uneven lift support movement at the back glass
• Dropping rear window glass during loading or unloading
• Excess effort needed to raise or lower the dropgate glass
• Wear-related loss of pressure in the original lift support

Installation Notes and Tips

Verify the vehicle’s year, make, model, and dropgate configuration before ordering. Confirm the end fittings and measured lengths against the original support to ensure proper alignment. For rear glass service, replace the support in pairs to maintain balanced operation and reliable holding force. Part number 4316 is a direct-fit style replacement for the listed applications.

Quality Assurance

StrongArm lift supports are custom engineered and manufactured to support smooth operation and long-lasting performance in automotive use. The pressurized cylinder construction, steel outer body, and application-specific fitment help deliver consistent rear glass support for the listed vehicles.
