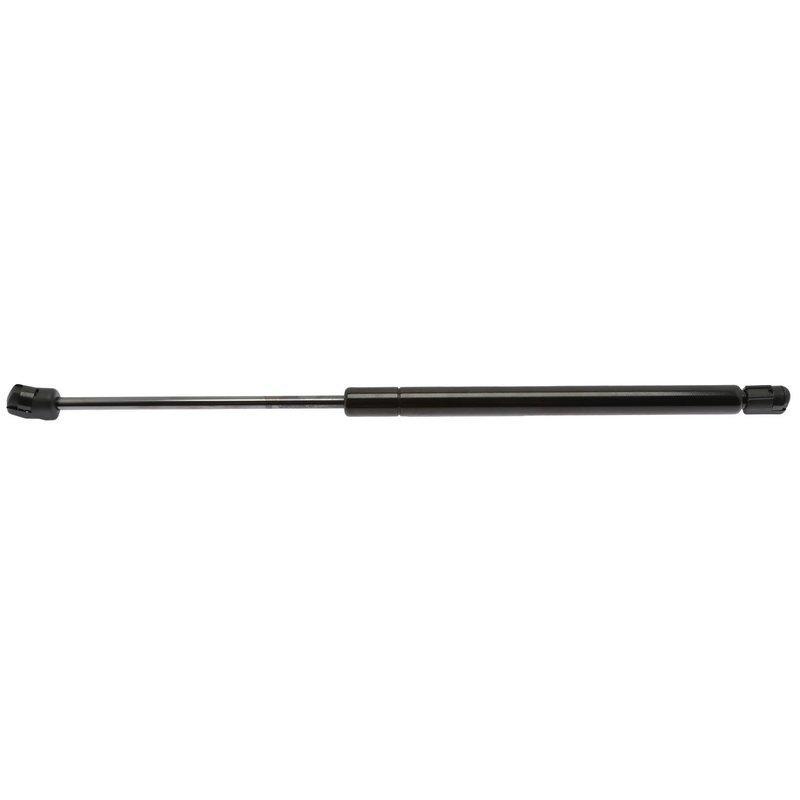

StrongArm 4339 Hood Lift Support

StrongArm Hood Lift Support for Ford Excursion and Super Duty Trucks

The StrongArm 4339 Hood Lift Support is engineered specifically for Ford Excursion, F-250, F-250 Super Duty, F-350, and F-350 Super Duty models. Designed to provide reliable hood support, this part ensures smooth and controlled hood lifting and holding for your heavy-duty Ford trucks.

• Compressed length: 11.57 inches
• Extended length: 17.32 inches
• Cylinder outside diameter: 19.0 mm
• Stroke length: 5.75 inches
• Inner shaft diameter: 8.0 mm
• Steel outer cylinder with black finish
• Ball socket nylon ends (16° and 8mm)
• Maximum force rating: 98.0 lbs
• Materials include rubber and Teflon components for durability

Technical Details and Construction

The StrongArm 4339 hood lift support features a robust steel outer cylinder finished in black for corrosion resistance and durability. The gas spring has a compressed length of 11.57 inches and extends to 17.32 inches, providing a stroke length of 5.75 inches. The cylinder’s outside diameter measures 19.0 mm, while the inner shaft diameter is 8.0 mm, ensuring a sturdy and reliable lift mechanism. Nylon ball socket ends at 16 degrees and 8 mm provide secure mounting points that reduce wear and allow smooth articulation. The internal design excludes a rebound spring, focusing on consistent force delivery up to 98 lbs to support the hood weight effectively.

Compatible Ford Models and Applications

This hood lift support is a specific fit for Ford Excursion, F-250, F-250 Super Duty, F-350, and F-350 Super Duty trucks. It is designed to replace factory lift supports that have lost pressure or functionality, restoring proper hood operation and safety during maintenance or inspection.

• Supports heavy hood weight on Ford Super Duty trucks
• Prevents hood slamming and accidental closure
• Eliminates difficulty in lifting or holding the hood open
• Reduces wear on hood hinges and latch mechanisms
• Improves safety during engine bay access

Installation Notes and Tips

Installation of the StrongArm 4339 hood lift support requires removal of the old lift support and attachment of the new unit using the ball socket ends. Ensure the mounting points on the hood and frame are clean and free of debris. The nylon ball sockets allow for slight angular movement, so alignment should be straightforward. Use appropriate tools to avoid damage to the ball sockets during installation. Verify the hood opens and closes smoothly after installation.

Quality Assurance and Warranty

StrongArm manufactures this hood lift support with high-quality steel and durable materials such as rubber and Teflon to ensure long service life. The part number 4339 is tested to meet force specifications and fitment requirements for the specified Ford models. While no specific warranty details are provided, StrongArm products typically adhere to industry standards for reliability and performance.
