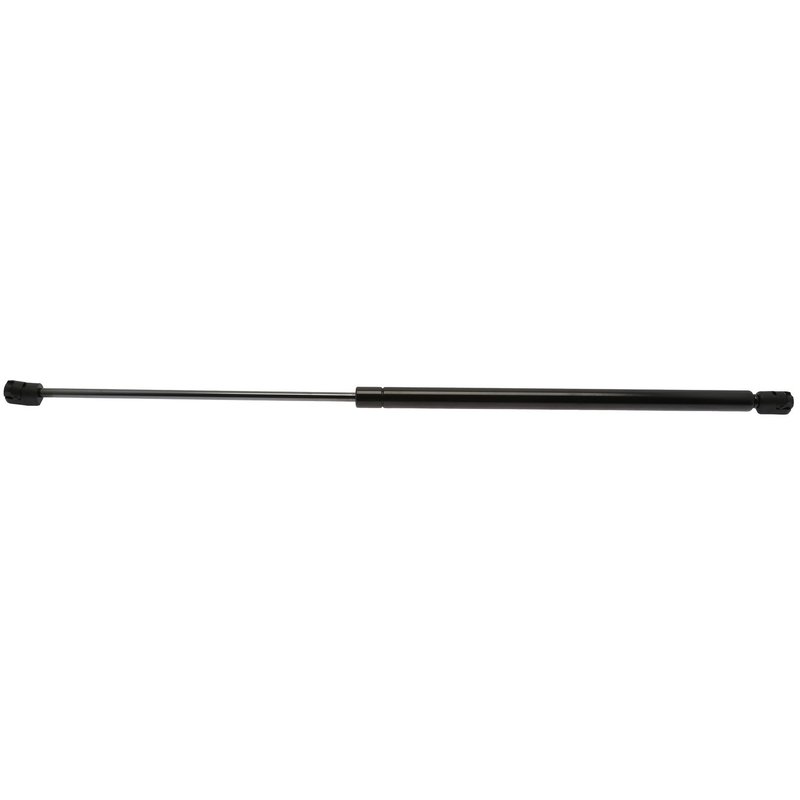

StrongArm 4398 Hood Lift Support

StrongArm Hood Lift Support for Cadillac SRX

The StrongArm Hood Lift Support part number 4398 is engineered specifically for Cadillac SRX models. Designed to provide reliable hood support, this hood lift support ensures smooth and controlled hood operation for your vehicle.

• Compressed length: 15.03 inches
• Extended length: 25.03 inches
• Cylinder outside diameter: 19.0 mm
• Stroke length: 10.0 inches
• Inner shaft diameter: 8.0 mm
• Outer cylinder made of durable black steel
• Ball socket nylon ends with 16-degree and 10mm fittings
• Maximum force rating of 30.0 lbs
• Materials include rubber and Teflon components for smooth operation

Technical Details and Construction

The StrongArm 4398 hood lift support is constructed with a steel outer cylinder finished in black for corrosion resistance and durability. It features a 19.0 mm outside diameter cylinder and an 8.0 mm inner shaft diameter, providing the necessary strength and stability for hood support. The lift support extends from 15.03 inches compressed to 25.03 inches fully extended, with a 10.0-inch stroke length to accommodate the hood’s range of motion. Nylon ball socket ends at both sides (16-degree and 10mm) ensure secure attachment points and smooth articulation. The internal design excludes a rebound spring, focusing on consistent force delivery up to 30 lbs to hold the hood firmly in place.

Compatible Vehicles and Applications

This hood lift support is specifically designed for Cadillac SRX models, ensuring precise fitment and reliable performance. The part number 4398 matches the OEM specifications for these vehicles, making it a suitable replacement for worn or failing hood supports. It is ideal for addressing issues related to hood stability and ease of opening.

• Supports the hood during maintenance and inspections
• Prevents hood from slamming shut unexpectedly
• Eliminates difficulty in lifting or holding the hood open
• Replaces worn or leaking original hood lift supports
• Improves safety when accessing the engine compartment

Installation Notes and Tips

Installation of the StrongArm hood lift support 4398 requires matching the ball socket ends to the vehicle’s hood and frame mounting points. Ensure the nylon ball sockets are properly seated to avoid binding or premature wear. It is recommended to replace both hood lift supports simultaneously for balanced hood operation. Use appropriate tools to remove the old supports and carefully align the new part during installation. Verify smooth extension and compression after installation to confirm proper fitment.

Quality Assurance and Warranty

StrongArm hood lift supports are manufactured to meet strict quality standards using durable materials such as steel, rubber, and Teflon. The part number 4398 undergoes rigorous testing to ensure consistent force output and long service life. While specific warranty details are not provided, StrongArm products typically adhere to industry standards for replacement automotive parts, offering reliable performance for Cadillac SRX owners.
