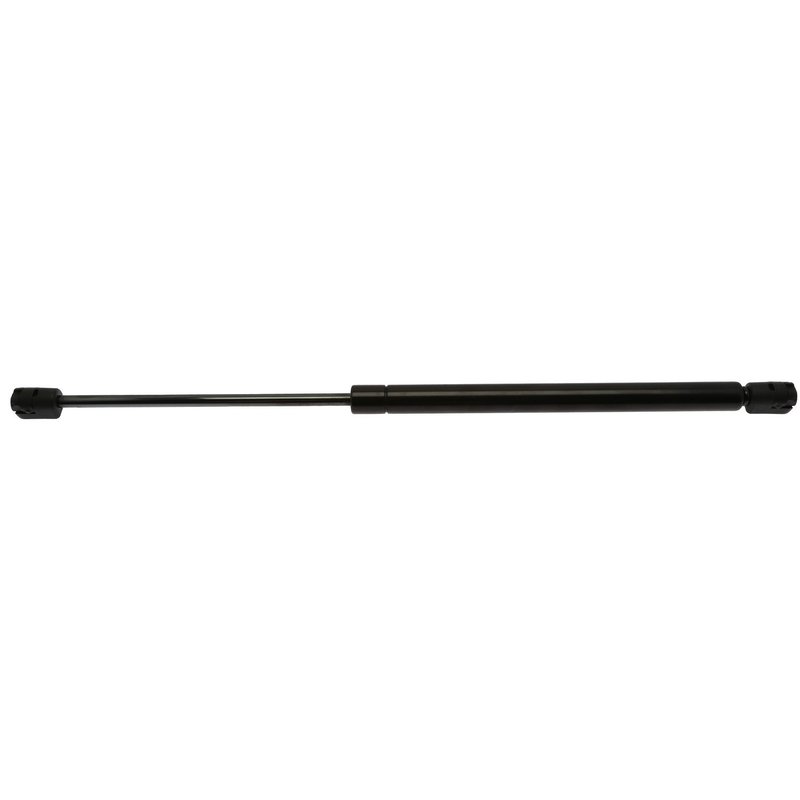

StrongArm 4404 Back Glass Lift Support
| Brand | StrongArm 4404 |
|---|---|
| Compressed Length | 11.39 |
| Cylinder Outside Diameter | 19.0 |
| End 1 Type | Ball Socket (Nylon) 10mm |
| End 2 Type | Ball Socket (Nylon) 10mm |
| Extended Length | 18.0 |
| Inner Shaft Diameter | 8.0 |
| Internal Rebound Spring | No |
| Materials | Rubber |
| Materials | Teflon |
| Maximum Force | 38.0 |
| Outer Cylinder Color | Black |
| Outer Cylinder Material | Steel |
| Stroke Length | 6.61 |
| Universal Or Specific Fit | Specific |
| Fits | Chevrolet, GMC, Buick, Oldsmobile, and Pontiac · 59 vehicles |
Specific fit. Custom engineered for a precise replacement.
Steel cylinder. Built with a black steel body for durable support.
Smooth operation. Pressurized design delivers steadier, longer-lasting lift support.
Cross-references AMS Automotive 4404, 510-538 and 819-5227 for the same application. See all 6.
Back Glass Lift Support for Specific Fit Applications
StrongArm 4404 is a specific-fit back glass lift support for rear window glass applications that need controlled opening and steady hold position. It is engineered as a pressurized cylinder with steel construction and nylon ball socket ends for consistent operation on supported vehicles.
Key Features
- Specific-fit back glass lift support for rear window glass
- Extended length: 18.0 in.; compressed length: 11.39 in.
- Stroke length: 6.61 in. for controlled lift travel
- Maximum force rating: 38.0
- Black steel outer cylinder with rubber and Teflon materials
- 10 mm nylon ball socket ends on both sides
- No internal rebound spring
Detailed Description
StrongArm 4404 is built for rear glass support on a range of GM and Buick/Pontiac applications, including Chevrolet S10 Blazer, GMC Jimmy, GMC S15 Jimmy, Buick Regal, Chevrolet Malibu, Oldsmobile Custom Cruiser, Pontiac Bonneville, Buick Century, Pontiac Grand LeMans, and Pontiac LeMans. This part number 4404 is engineered to match the specified application with the correct length, stroke, and end fittings for rear window glass operation. StrongArm manufactures its lift supports beyond standard industry requirements to deliver smooth movement and durable performance in daily use.
This part cross-references AMS Automotive 4404 for the same application.
What It Helps Address
- Rear glass that will not stay open
- Slow or uneven lift support movement
- Weak support force at the back glass
- Wear-related loss of pressure in the original support
- Difficulty opening or holding the rear window glass
Installation Notes and Tips
Compatible With 1983-1994 Chevrolet S10 Blazer, without Rear Defroster; 1983-1994 GMC Jimmy, without Rear Defroster; 1983-1991 GMC S15 Jimmy, without Rear Defroster; 1982-1983 Buick Regal; 1978-1983 Chevrolet Malibu; 1978-1983 Oldsmobile Custom Cruiser; 1982-1983 Pontiac Bonneville; 1978-1981 Buick Century; 1980-1981 Pontiac Grand LeMans; 1978-1981 Pontiac LeMans. Verify the vehicle’s rear glass configuration before ordering, especially on applications noted without rear defroster. For best results, inspect the mounting points and ball studs for wear before installing the replacement support. StrongArm 4404 should be matched to the correct application by year, make, model, and rear glass equipment.
Quality Assurance
StrongArm lift supports are custom engineered and manufactured to support smooth operation and long service life. The brand’s manufacturing approach focuses on consistent fit and controlled performance for automotive glass support applications.
| Year | Make | Model | Submodel | Body Type | # Doors | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1994 | Chevrolet | S10 Blazer | — | — | — | N/A | without Rear Defroster |
| 1994 | GMC | Jimmy | — | — | — | N/A | without Rear Defroster |
| 1993 | Chevrolet | S10 Blazer | — | — | — | N/A | without Rear Defroster |
| 1993 | GMC | Jimmy | — | — | — | N/A | without Rear Defroster |
| 1992 | Chevrolet | S10 Blazer | — | — | — | N/A | without Rear Defroster |
| 1992 | GMC | Jimmy | — | — | — | N/A | without Rear Defroster |
| 1991 | Chevrolet | S10 Blazer | — | — | — | N/A | without Rear Defroster |
| 1991 | GMC | Jimmy | — | — | — | N/A | without Rear Defroster |
| 1991 | GMC | S15 Jimmy | — | — | — | N/A | without Rear Defroster |
| 1990 | Chevrolet | S10 Blazer | — | — | — | N/A | without Rear Defroster |
| 1990 | GMC | Jimmy | — | — | — | N/A | without Rear Defroster |
| 1990 | GMC | S15 Jimmy | — | — | — | N/A | without Rear Defroster |
| 1989 | Chevrolet | S10 Blazer | — | — | — | N/A | without Rear Defroster |
| 1989 | GMC | Jimmy | — | — | — | N/A | without Rear Defroster |
| 1989 | GMC | S15 Jimmy | — | — | — | N/A | without Rear Defroster |
| 1988 | Chevrolet | S10 Blazer | — | — | — | N/A | without Rear Defroster |
| 1988 | GMC | Jimmy | — | — | — | N/A | without Rear Defroster |
| 1988 | GMC | S15 Jimmy | — | — | — | N/A | without Rear Defroster |
| 1987 | Chevrolet | S10 Blazer | — | — | — | N/A | without Rear Defroster |
| 1987 | GMC | Jimmy | — | — | — | N/A | without Rear Defroster |
| 1987 | GMC | S15 Jimmy | — | — | — | N/A | without Rear Defroster |
| 1986 | Chevrolet | S10 Blazer | — | — | — | N/A | without Rear Defroster |
| 1986 | GMC | Jimmy | — | — | — | N/A | without Rear Defroster |
| 1986 | GMC | S15 Jimmy | — | — | — | N/A | without Rear Defroster |
| 1985 | Chevrolet | S10 Blazer | — | — | — | N/A | without Rear Defroster |
| 1985 | GMC | Jimmy | — | — | — | N/A | without Rear Defroster |
| 1985 | GMC | S15 Jimmy | — | — | — | N/A | without Rear Defroster |
| 1984 | Chevrolet | S10 Blazer | — | — | — | N/A | without Rear Defroster |
| 1984 | GMC | Jimmy | — | — | — | N/A | without Rear Defroster |
| 1984 | GMC | S15 Jimmy | — | — | — | N/A | without Rear Defroster |
| 1983 | Buick | Regal | — | Wagon | 4 Door | N/A | — |
| 1983 | Chevrolet | Malibu | — | Wagon | 4 Door | N/A | — |
| 1983 | Chevrolet | S10 Blazer | — | — | — | N/A | without Rear Defroster |
| 1983 | GMC | Jimmy | — | — | — | N/A | without Rear Defroster |
| 1983 | GMC | S15 Jimmy | — | — | — | N/A | without Rear Defroster |
| 1983 | Oldsmobile | Custom Cruiser | — | Wagon | 4 Door | N/A | — |
| 1983 | Pontiac | Bonneville | — | Wagon | 4 Door | N/A | — |
| 1982 | Buick | Regal | — | Wagon | 4 Door | N/A | — |
| 1982 | Chevrolet | Malibu | — | Wagon | 4 Door | N/A | — |
| 1982 | Oldsmobile | Custom Cruiser | — | Wagon | 4 Door | N/A | — |
| 1982 | Pontiac | Bonneville | — | Wagon | 4 Door | N/A | — |
| 1981 | Buick | Century | — | Wagon | 4 Door | N/A | — |
| 1981 | Chevrolet | Malibu | — | Wagon | 4 Door | N/A | — |
| 1981 | Oldsmobile | Custom Cruiser | — | Wagon | 4 Door | N/A | — |
| 1981 | Pontiac | Grand LeMans | — | Wagon | 4 Door | N/A | — |
| 1981 | Pontiac | LeMans | Safari | Wagon | 4 Door | N/A | — |
| 1980 | Buick | Century | — | Wagon | 4 Door | N/A | — |
| 1980 | Chevrolet | Malibu | — | Wagon | 4 Door | N/A | — |
| 1980 | Oldsmobile | Custom Cruiser | — | Wagon | 4 Door | N/A | — |
| 1980 | Pontiac | Grand LeMans | — | Wagon | 4 Door | N/A | — |
| 1980 | Pontiac | LeMans | Safari | Wagon | 4 Door | N/A | — |
| 1979 | Buick | Century | — | Wagon | 4 Door | N/A | — |
| 1979 | Chevrolet | Malibu | — | Wagon | 4 Door | N/A | — |
| 1979 | Oldsmobile | Custom Cruiser | — | Wagon | 4 Door | N/A | — |
| 1979 | Pontiac | LeMans | Safari | Wagon | 4 Door | N/A | — |
| 1978 | Buick | Century | — | Wagon | 4 Door | N/A | — |
| 1978 | Chevrolet | Malibu | — | Wagon | 4 Door | N/A | — |
| 1978 | Oldsmobile | Custom Cruiser | — | Wagon | 4 Door | N/A | — |
| 1978 | Pontiac | LeMans | Safari | Wagon | 4 Door | N/A | — |
