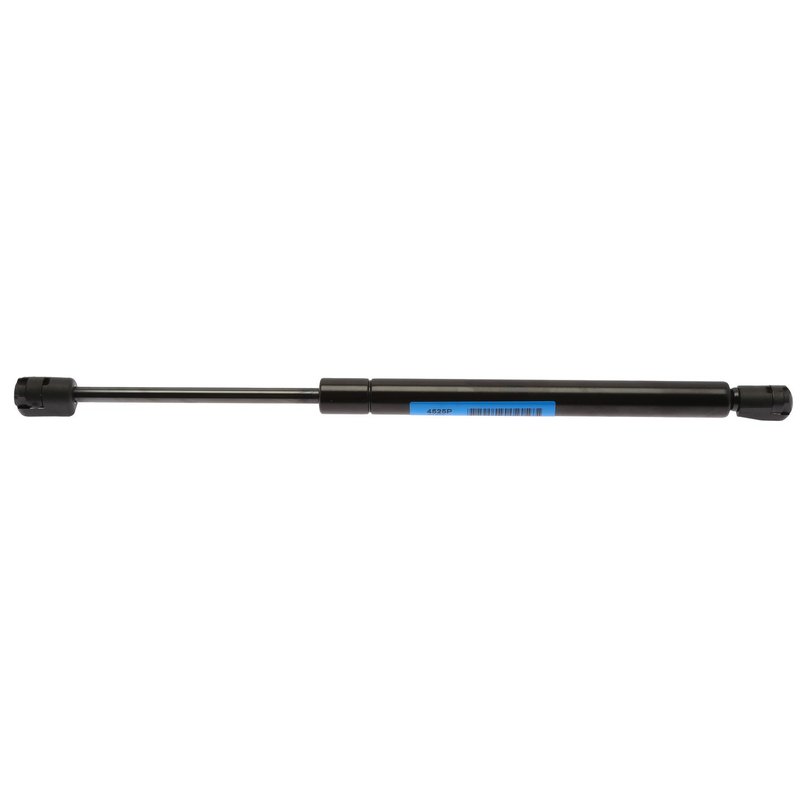

StrongArm 4525 Hood Lift Support

StrongArm Hood Lift Support for Chevrolet Corvette and Lincoln Navigator

The StrongArm Hood Lift Support part number 4525 is engineered specifically for Chevrolet Corvette and Lincoln Navigator models. Designed to provide reliable hood support, this component ensures smooth and controlled hood operation for your vehicle.

• Compressed length: 10.12 inches
• Extended length: 14.06 inches
• Cylinder outside diameter: 19.0 mm
• Stroke length: 3.94 inches
• Inner shaft diameter: 8.0 mm
• Outer cylinder material: Steel with black finish
• Ball socket ends: 10mm nylon on one end, 8mm nylon on the other
• Maximum force rating: 106 lbs
• Materials include rubber and Teflon components for durability

Technical Details and Construction

This hood lift support features a steel outer cylinder finished in black for corrosion resistance and durability. The 19.0 mm cylinder diameter and 8.0 mm inner shaft diameter provide the necessary strength to support the hood weight of Chevrolet Corvette and Lincoln Navigator vehicles. The stroke length of 3.94 inches allows for smooth extension and compression during hood operation. Nylon ball socket ends (10mm and 8mm) ensure secure attachment points while reducing wear. The absence of an internal rebound spring means the lift support operates with consistent force, rated up to 106 pounds.

Compatible Vehicles and Applications

This StrongArm hood lift support, part number 4525, is a specific fit for the Chevrolet Corvette and Lincoln Navigator. It is designed to replace original equipment and restore proper hood lift functionality. This part is ideal for addressing issues such as:

• Hood not staying open or closing unexpectedly
• Difficulty lifting the hood smoothly
• Worn or leaking original hood lift supports
• Corrosion or damage to existing hood struts
• Loose or noisy hood operation

Installation Notes and Tips

Installation of the StrongArm 4525 hood lift support requires removal of the old lift support and attachment of the new unit using the ball socket ends. Ensure the nylon ball sockets are properly seated on the mounting points to avoid premature wear. It is recommended to replace lift supports in pairs to maintain balanced hood operation. Use appropriate tools to avoid damage to the ball sockets or mounting hardware during installation.

Quality Assurance and Warranty

StrongArm hood lift supports are manufactured to meet OEM specifications for fit and function. The steel construction and durable materials provide long service life under normal operating conditions. While specific warranty details are not provided, StrongArm products typically undergo quality control testing to ensure reliability and performance for Chevrolet Corvette and Lincoln Navigator applications.
