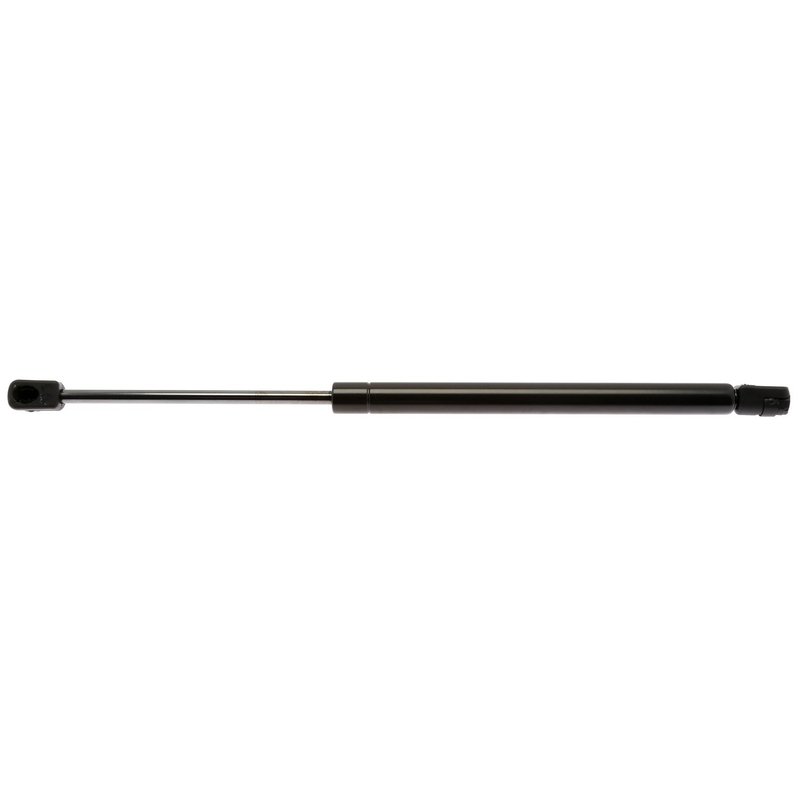

StrongArm 4526 Tailgate Lift Support

StrongArm Tailgate Lift Support for Lexus Land Cruiser and Toyota LX450

The StrongArm Tailgate Lift Support part number 4526 is engineered specifically for Lexus Land Cruiser and Toyota LX450 models. Designed to provide reliable tailgate assistance, this lift support ensures smooth and controlled opening and closing of your vehicle's tailgate.

• Compressed length: 10.9 inches
• Extended length: 16.25 inches
• Cylinder outside diameter: 19.0 mm
• Stroke length: 5.35 inches
• Inner shaft diameter: 8.0 mm
• Steel outer cylinder with black finish
• Ball socket (nylon) 10mm ends on both sides
• Maximum force rating of 84.0 N
• Materials include rubber and Teflon components for durability

Technical Details and Construction

This StrongArm tailgate lift support (part number 4526) features a steel outer cylinder finished in black for corrosion resistance and durability. The lift support uses ball socket nylon ends measuring 10mm on both sides, providing secure attachment points for the tailgate and vehicle frame. With a compressed length of 10.9 inches and an extended length of 16.25 inches, it offers a stroke length of 5.35 inches to accommodate the tailgate's range of motion. The internal components include rubber and Teflon materials to reduce friction and wear, although this model does not include an internal rebound spring. The maximum force output of 84.0 Newtons ensures consistent support during tailgate operation.

Compatible Vehicles and Applications

This tailgate lift support is designed specifically for use with Lexus Land Cruiser and Toyota LX450 models. It is a direct replacement part, ensuring proper fit and function without modification. The StrongArm 4526 lift support is ideal for restoring smooth tailgate operation and preventing sagging or difficulty in opening and closing the tailgate on these vehicles.

• Supports smooth tailgate lifting and lowering
• Prevents tailgate sag and uneven movement
• Replaces worn or damaged lift supports
• Reduces strain on tailgate hinges
• Maintains proper tailgate positioning when open

Installation Notes and Tips

Installation of the StrongArm tailgate lift support 4526 requires removal of the old lift support and attachment of the new unit using the ball socket nylon ends. Ensure the vehicle is parked on a level surface and the tailgate is supported during replacement to avoid injury. The 10mm ball socket ends should snap securely into place on the tailgate and vehicle mounting points. No special tools are typically required, but a flathead screwdriver or trim tool may assist in removing retaining clips.

Quality Assurance and Warranty

StrongArm manufactures this tailgate lift support with steel and durable materials to meet OEM specifications for Lexus Land Cruiser and Toyota LX450 vehicles. While no internal rebound spring is included, the design provides consistent force and reliable performance. Warranty information should be confirmed with the distributor or manufacturer, as it may vary by region.
