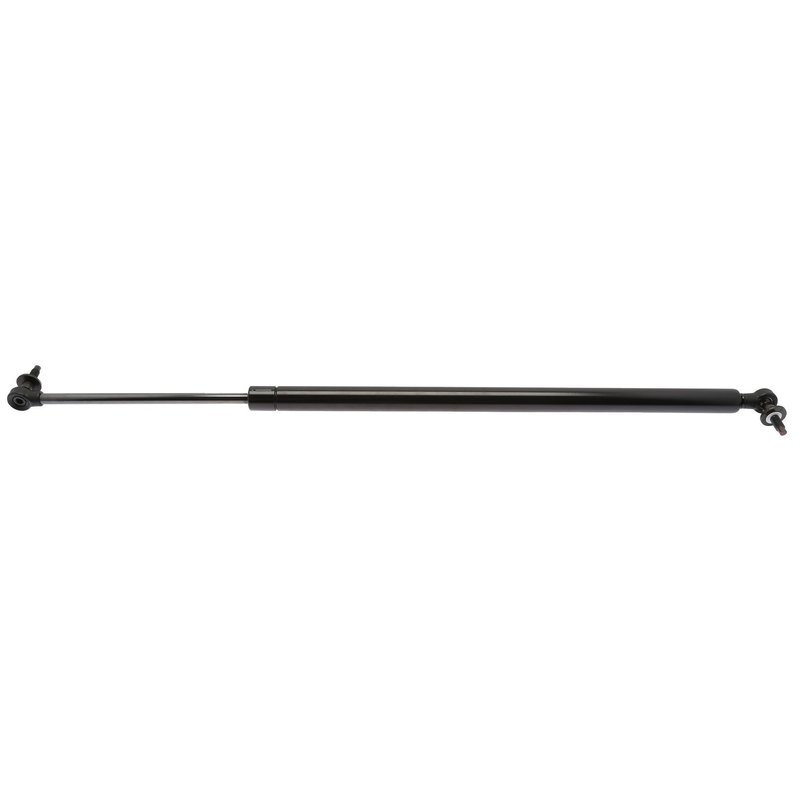

StrongArm 4535 Liftgate Lift Support

StrongArm Liftgate Lift Support Overview

The StrongArm 4535 Liftgate Lift Support is engineered specifically for Chrysler and Dodge minivans, including the Caravan, Grand Caravan, Town & Country, and Voyager models. Designed to provide reliable liftgate assistance, this part ensures smooth and controlled opening and closing of your vehicle's rear door.

• Compressed length: 18.75 inches
• Extended length: 25.85 inches
• Cylinder outside diameter: 22.0 mm
• Stroke length: 7.1 inches
• Inner shaft diameter: 10.0 mm
• Outer cylinder made of durable black steel
• Captive ball nylon socket ends for secure fitment
• Maximum force rating of 212 lbs
• Materials include rubber and Teflon for smooth operation

Technical Details and Specifications

The StrongArm 4535 liftgate lift support features a steel outer cylinder finished in black, providing strength and corrosion resistance. Its 18.75-inch compressed length and 25.85-inch extended length accommodate the specific dimensions required for Chrysler and Dodge minivan liftgates. The 7.1-inch stroke length allows for controlled movement, while the 22.0 mm cylinder diameter and 10.0 mm inner shaft diameter contribute to the part's durability and performance. Both ends utilize captive ball nylon sockets, ensuring a secure and vibration-resistant connection to the vehicle's liftgate and body. The internal design excludes a rebound spring, focusing on consistent force application up to 212 pounds.

Compatible Vehicles and Applications

This liftgate lift support is compatible with the following vehicles:

• Chrysler Caravan
• Chrysler Grand Caravan
• Chrysler Town & Country
• Dodge Voyager

Part number 4535 is a specific fit for these models, ensuring proper fit and function without modification.

Common Issues Addressed by Liftgate Lift Support

• Difficulty holding the liftgate open
• Liftgate closing unexpectedly or slamming shut
• Liftgate opening too slowly or with jerky motion
• Worn or leaking original lift supports
• Noise or vibration during liftgate operation

Installation Notes and Tips

Installation of the StrongArm 4535 liftgate lift support requires removal of the old lift support and attachment of the new unit using the captive ball nylon socket ends. It is recommended to support the liftgate securely during replacement to prevent injury or damage. No special tools are required beyond standard automotive hand tools. Verify the compressed and extended lengths match the original part to ensure proper fitment.

Quality Assurance and Warranty

StrongArm lift supports are manufactured with high-quality steel and durable materials such as rubber and Teflon to provide consistent performance. The part number 4535 meets OEM specifications for Chrysler and Dodge minivans. While specific warranty details are not provided, StrongArm products typically undergo rigorous quality control to ensure reliability and longevity.
