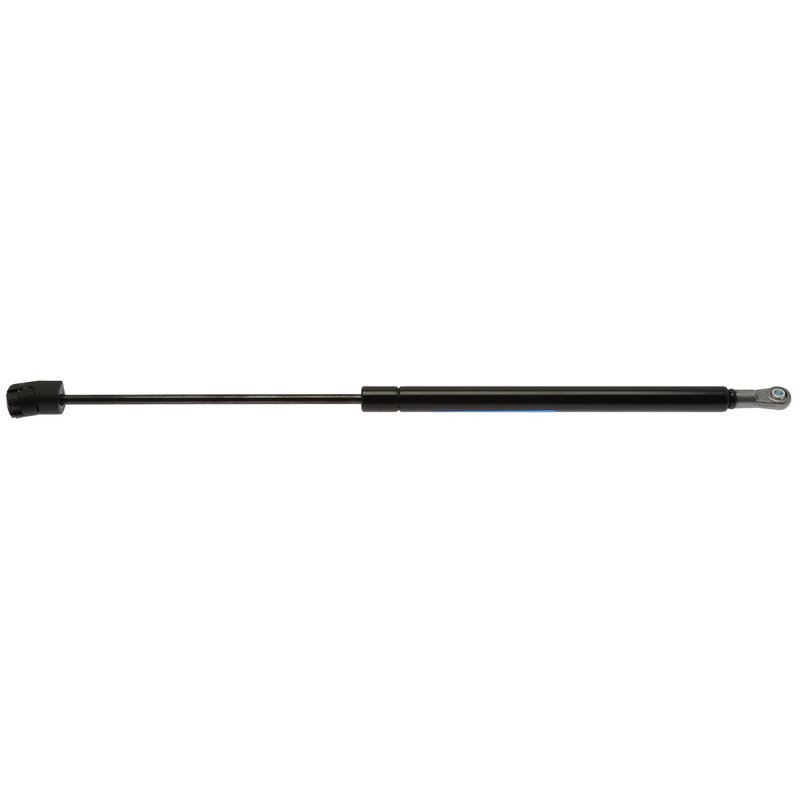

StrongArm 4646 Back Glass Lift Support

StrongArm Back Glass Lift Support Overview

The StrongArm 4646 Back Glass Lift Support is engineered specifically for Ford and Mercury vehicles, including the Sable and Taurus models. Designed to provide reliable support and smooth operation, this lift support ensures your back glass opens and closes with ease.

• Compressed length: 10.46 inches
• Extended length: 16.79 inches
• Stroke length: 6.33 inches
• Cylinder outside diameter: 15.0 mm
• Inner shaft diameter: 6.0 mm
• Outer cylinder material: durable black steel
• End 1: Ball socket (nylon) with 16-degree angle
• End 2: Swivel eyelet for secure attachment
• Materials include rubber and Teflon for smooth operation
• Maximum force rating: 34.0 lbs

Technical Details and Compatibility

This back glass lift support is a specific fit part designed to match the original equipment specifications for Ford Sable and Taurus, as well as Mercury models. The steel outer cylinder with a black finish offers corrosion resistance and strength, while the nylon ball socket and swivel eyelet ends provide precise movement and secure mounting points. The 6.33-inch stroke length allows for smooth lifting and lowering of the back glass, maintaining proper tension and control.

Common Applications and Problem Solving

• Supports the rear glass hatch or window for smooth opening and closing
• Replaces worn or weak lift supports that cause sagging or difficulty in operation
• Prevents back glass from slamming shut unexpectedly
• Eliminates rattling or loose glass movement during driving
• Restores proper lift force to maintain vehicle safety and convenience

Installation Notes and Tips

Installation of the StrongArm 4646 lift support requires matching the compressed and extended lengths to the original part. Ensure the ball socket and swivel eyelet ends align correctly with the mounting points on the vehicle. Use appropriate tools to avoid damage to the nylon socket or rubber components. It is recommended to replace lift supports in pairs to maintain balanced operation.

Quality Assurance and Warranty

Manufactured with steel, rubber, and Teflon materials, the StrongArm 4646 lift support is built to meet OEM standards for durability and performance. While specific warranty details are not provided, StrongArm products typically undergo quality control testing to ensure reliable function in Ford and Mercury Sable and Taurus vehicles.
