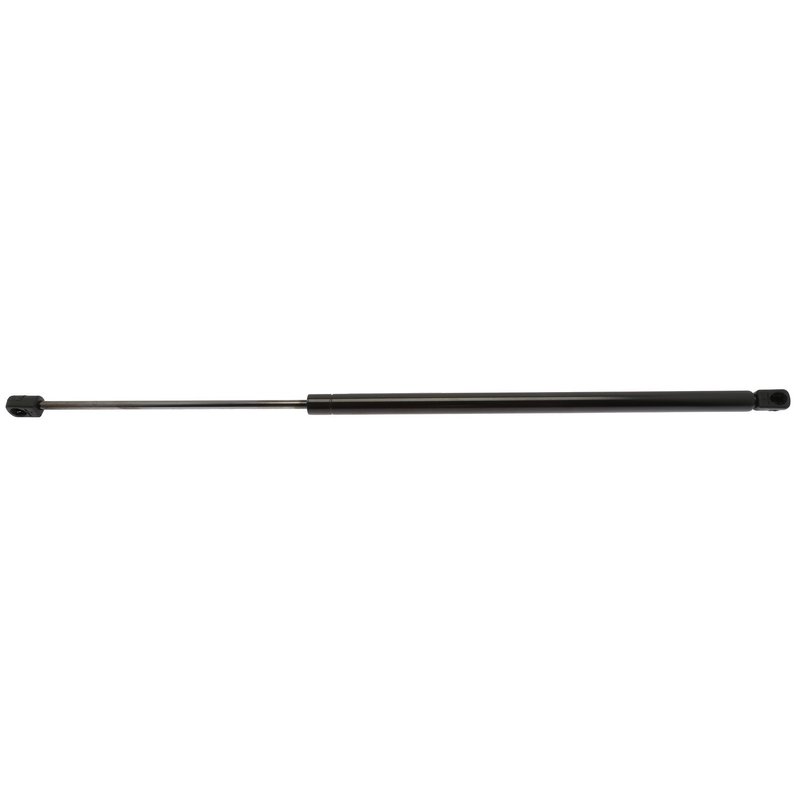

StrongArm 4702 Hatch Lift Support

StrongArm 4702 Lift Support for Rear Wiper Applications

StrongArm 4702 is a specific-fit lift support for rear glass applications on select Toyota Corolla and Toyota Celica models with a rear wiper. It uses a pressurized cylinder design to provide controlled lift and hold for hoods, hatches, and rear window glass, with dimensions and end fittings matched to the listed applications.

Key Features

• Specific-fit lift support for select Toyota rear glass applications
• Extended length: 25.39 in; compressed length: 16.75 in
• Stroke length: 8.64 in for controlled opening travel
• Black steel outer cylinder with rubber and Teflon materials
• Ball socket nylon 10 mm ends on both sides
• Maximum force rating: 52.0
• Cross-reference part numbers include Monroe 510-550 and Stabilus SG229001

Detailed Description

StrongArm 4702 is engineered as a direct replacement lift support for rear wiper-equipped Toyota Corolla and Toyota Celica models. The pressurized cylinder construction helps maintain steady support and smoother operation for rear glass movement, while the specific-fit design and 10 mm nylon ball socket ends match the listed vehicle applications. This part number, 4702, is built to the stated dimensions and force rating for accurate replacement service on the correct Toyota hatch and rear window configurations.

Compatible With 1976-1986 Toyota Corolla, with Rear Wiper, and 1976-1985 Toyota Celica, with Rear Wiper. The fitment data covers 1976-1986 Toyota Corolla and 1976-1985 Toyota Celica applications, making StrongArm 4702 a targeted replacement for rear hatch or rear glass support service on these vehicles.

Common Replacement Symptoms

• Rear glass or hatch drops instead of staying open
• Weak or slow lift action when opening the rear window
• Uneven support or inconsistent holding force
• Visible wear at the ball socket ends or cylinder body
• Loss of pressure in the original lift support

Installation Notes

Verify the vehicle year, model, and rear wiper configuration before ordering. Match the compressed length, extended length, stroke, and 10 mm ball socket ends to the original support for proper fitment. Lift supports should be replaced in pairs to maintain balanced operation and reliable support of the hood, hatch, or liftgate.

Quality Assurance

StrongArm lift supports are custom engineered and manufactured beyond industry standards for smoother operation and longer service life. Part number 4702 is built to the listed specifications for the confirmed Toyota applications.
