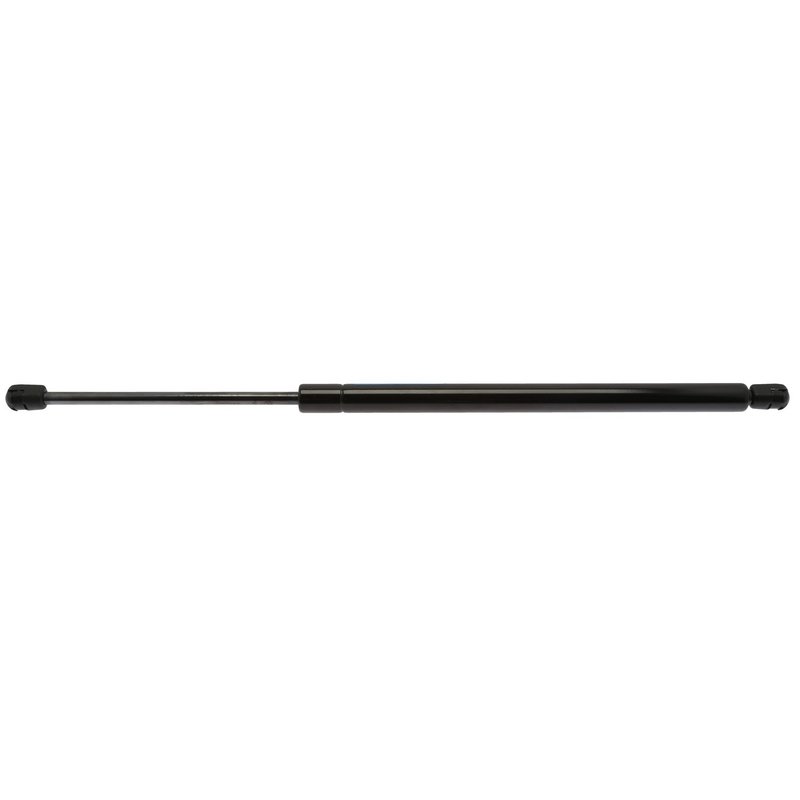

StrongArm 4755 Hood Lift Support

StrongArm Hood Lift Support for Buick, Chevrolet, Oldsmobile

The StrongArm 4755 Hood Lift Support is engineered specifically for select Buick, Chevrolet, and Oldsmobile models including Caprice, Commercial Chassis, Custom Cruiser, Impala, and Roadmaster. Designed to provide reliable hood support, this part ensures smooth and controlled hood operation for your vehicle.

• Compressed length: 15.32 inches
• Extended length: 22.22 inches
• Cylinder outside diameter: 22.0 mm
• Stroke length: 6.9 inches
• Inner shaft diameter: 8.0 mm
• Steel outer cylinder with black finish
• Ball socket nylon ends, 10mm size on both ends
• Maximum force rating: 142.0 N
• Materials include rubber and Teflon components for durability

Technical Details and Construction

The StrongArm 4755 hood lift support features a robust steel outer cylinder finished in black to resist corrosion and wear. Its 22.0 mm diameter cylinder and 8.0 mm inner shaft diameter provide the strength needed for consistent hood support. The lift support extends from 15.32 inches compressed to 22.22 inches fully extended, with a stroke length of 6.9 inches, allowing precise fitment and smooth operation. Both ends are equipped with 10mm nylon ball socket connectors, ensuring secure attachment points that reduce noise and wear. The internal design excludes a rebound spring, focusing on steady force application rated at 142 Newtons. Rubber and Teflon materials are incorporated to enhance sealing and reduce friction during movement.

Compatible Vehicles and Applications

This hood lift support is specifically designed for use with Buick Caprice, Chevrolet Commercial Chassis, Custom Cruiser, Impala, and Oldsmobile Roadmaster models. The part number 4755 corresponds to these applications, ensuring proper fit and function. It is not a universal fit but tailored to meet the exact specifications required by these vehicles.

• Supports hood opening and holding in place
• Replaces worn or weak hood lift supports
• Eliminates hood slamming or sudden closing
• Prevents hood from falling unexpectedly
• Improves safety during engine access and maintenance

Installation Notes and Tips

Installation of the StrongArm 4755 hood lift support requires removal of the old lift support and attachment of the new unit using the 10mm nylon ball sockets on each end. Ensure the ball sockets snap securely onto the hood and chassis mounting points. It is recommended to lubricate the ball sockets lightly with a silicone-based lubricant to ease installation and reduce noise. Verify the hood opens smoothly and remains stable in the raised position after installation.

Quality Assurance and Warranty

StrongArm manufactures the 4755 hood lift support with high-quality steel and durable materials to meet OEM standards. While no specific warranty information is provided, StrongArm products typically undergo rigorous quality control to ensure reliable performance and longevity. Using this part helps maintain the safety and functionality of your vehicle’s hood system.
