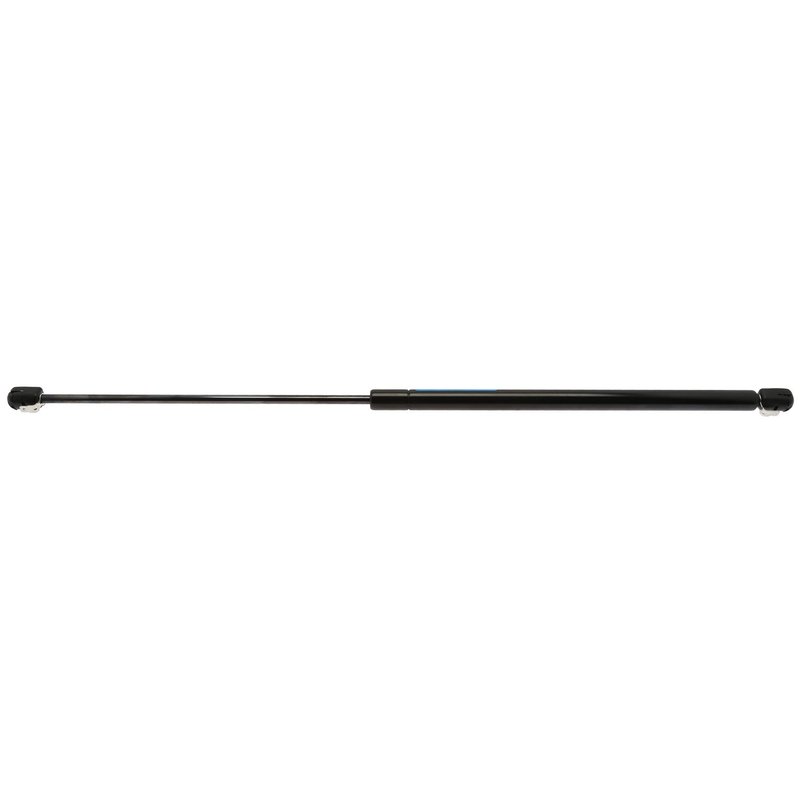

StrongArm 4761 Back Glass Lift Support
| Brand | StrongArm 4761 |
|---|---|
| Compressed Length | 14.68 |
| Cylinder Outside Diameter | 19.0 |
| End 1 Type | Ball Socket (Nylon, Elec.) |
| End 2 Type | Ball Socket (Nylon, Elec.) |
| Extended Length | 25.47 |
| Inner Shaft Diameter | 8.0 |
| Internal Rebound Spring | No |
| Materials | Rubber |
| Materials | Teflon |
| Maximum Force | 52.0 |
| Outer Cylinder Color | Black |
| Outer Cylinder Material | Steel |
| Stroke Length | 10.79 |
| Universal Or Specific Fit | Specific |
| Fits | Jeep · 9 vehicles |
Specific fit. Custom engineered for a precise replacement.
Steel cylinder. Black steel construction with durable rubber and Teflon materials.
Smooth operation. Pressurized design delivers reliable support and longer-lasting performance.
Cross-references AMS Automotive 4761, 2AML4761AA and 510-646 for the same application. See all 11.
Back Glass Lift Support for Jeep Wrangler
StrongArm 4761 is a specific-fit back glass lift support for 1987-1995 Jeep Wrangler models. It restores controlled rear window glass movement with a pressurized cylinder built for smooth operation and consistent support.
- Specific-fit rear glass lift support for 1987-1995 Jeep Wrangler
- Extended length: 25.47 in.; compressed length: 14.68 in.
- Stroke length: 10.79 in. with 52.0 maximum force
- Steel outer cylinder with black finish
- Ball socket ends with nylon electrical-style sockets at both ends
- Rubber and Teflon materials for operating durability
Product Details
StrongArm Part Number 4761 is engineered for the rear window glass on Jeep Wrangler applications from 1987 through 1995. This back glass lift support uses a pressurized cylinder design to hold the glass in position and provide controlled opening and closing action. The 19.0 mm cylinder outside diameter and 8.0 mm inner shaft diameter support stable operation, while the specific-fit design helps ensure proper alignment on the vehicle. This part cross-references AMS Automotive 4761 for the same application.
Common Problems It Can Help Solve
- Rear glass that drops instead of staying open
- Weak or inconsistent lift support pressure
- Hard-to-lift back glass on Jeep Wrangler rear hatch glass
- Excessive effort needed to open or hold the rear window glass
- Uneven or worn support action at the rear glass
Installation Notes and Tips
Compatible With 1987-1995 Jeep Wrangler rear glass applications. Verify ball socket attachment points and overall length before installation. For balanced operation and consistent support, replace lift supports in pairs when servicing the rear glass system. Confirm the existing support matches the compressed length, extended length, stroke length, and end type before ordering StrongArm 4761.
Quality Assurance
StrongArm states that each lift support is custom engineered and manufactured beyond industry standards to deliver smoother operation and longer service life. Part Number 4761 is built as a specific-fit replacement for Jeep Wrangler rear glass applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1995 | Jeep | Wrangler | N/A | — |
| 1994 | Jeep | Wrangler | N/A | — |
| 1993 | Jeep | Wrangler | N/A | — |
| 1992 | Jeep | Wrangler | N/A | — |
| 1991 | Jeep | Wrangler | N/A | — |
| 1990 | Jeep | Wrangler | N/A | — |
| 1989 | Jeep | Wrangler | N/A | — |
| 1988 | Jeep | Wrangler | N/A | — |
| 1987 | Jeep | Wrangler | N/A | — |
