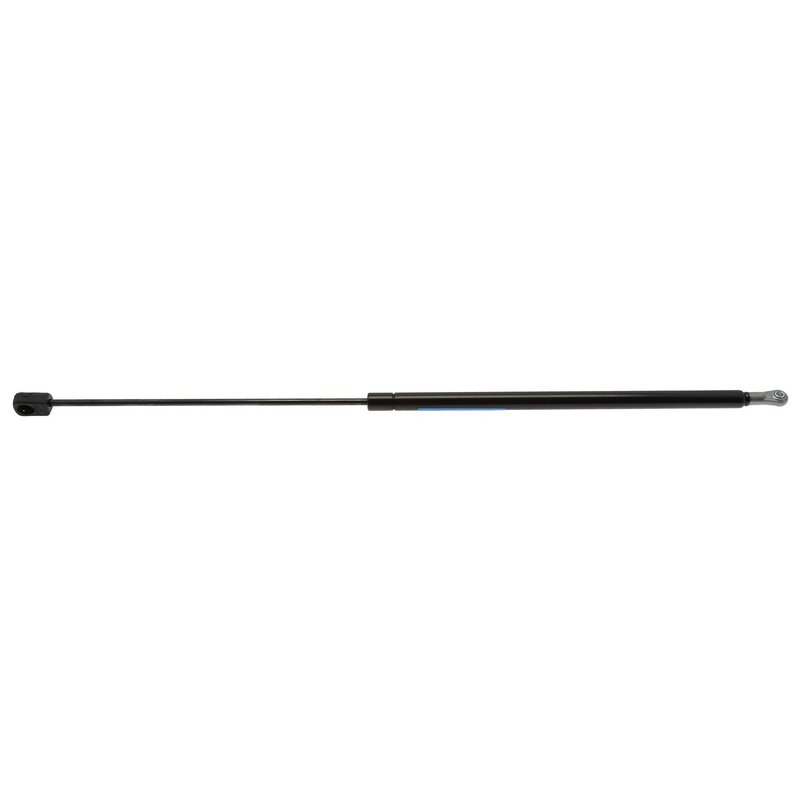

StrongArm 4799 Back Glass Lift Support

StrongArm Back Glass Lift Support Overview

The StrongArm Back Glass Lift Support part number 4799 is designed specifically for select Chevrolet, GMC, and Oldsmobile models. Engineered to provide reliable support and smooth operation, this lift support is an essential component for maintaining the functionality of your vehicle's rear glass.

• Compressed length: 14.18 inches
• Extended length: 23.93 inches
• Stroke length: 9.75 inches
• Cylinder outside diameter: 15.0 mm
• Inner shaft diameter: 6.0 mm
• Maximum force: 40.0 lbs
• Outer cylinder made of durable black steel
• End fittings include a 10mm nylon ball socket and swivel eyelet
• Materials include rubber and Teflon for smooth operation and durability

Detailed Product Description

The StrongArm 4799 Back Glass Lift Support is a specific fit part designed for Chevrolet Blazer, GMC Jimmy, and Oldsmobile Bravada models. Constructed with a steel outer cylinder finished in black, this lift support offers strength and corrosion resistance. The 15.0 mm cylinder diameter and 6.0 mm inner shaft diameter provide the necessary rigidity and smooth movement. The 9.75-inch stroke length allows for proper lift and support of the back glass, while the maximum force rating of 40 lbs ensures reliable performance under normal operating conditions. The end fittings feature a 10mm nylon ball socket on one end and a swivel eyelet on the other, facilitating secure attachment and ease of installation. Rubber and Teflon materials are incorporated to reduce friction and wear, extending the service life of the lift support.

Common Applications and Problem Solving

• Supports the rear glass lift mechanism on Chevrolet Blazer, GMC Jimmy, and Oldsmobile Bravada
• Replaces worn or failing lift supports that cause difficulty in opening or holding the back glass
• Eliminates rattling or loose rear glass due to weakened or broken lift supports
• Restores smooth and controlled lift operation for rear glass panels
• Prevents sudden closing or dropping of the back glass for safety and convenience

Installation Notes and Tips

• Ensure compatibility with Chevrolet Blazer, GMC Jimmy, or Oldsmobile Bravada before installation
• Use appropriate tools to remove old lift supports carefully to avoid damage to mounting points
• Verify that the ball socket and swivel eyelet ends align correctly with vehicle mounting hardware
• Lubricate pivot points if necessary to maintain smooth operation
• Test the lift support operation after installation to confirm proper fit and function

Quality Assurance and Warranty

The StrongArm Back Glass Lift Support 4799 is manufactured to meet OEM specifications for fit and function. The use of steel, rubber, and Teflon materials ensures durability and resistance to wear. While specific warranty details are not provided, StrongArm products typically adhere to industry standards for quality and reliability. It is recommended to consult the product documentation or supplier for warranty information related to this part.
