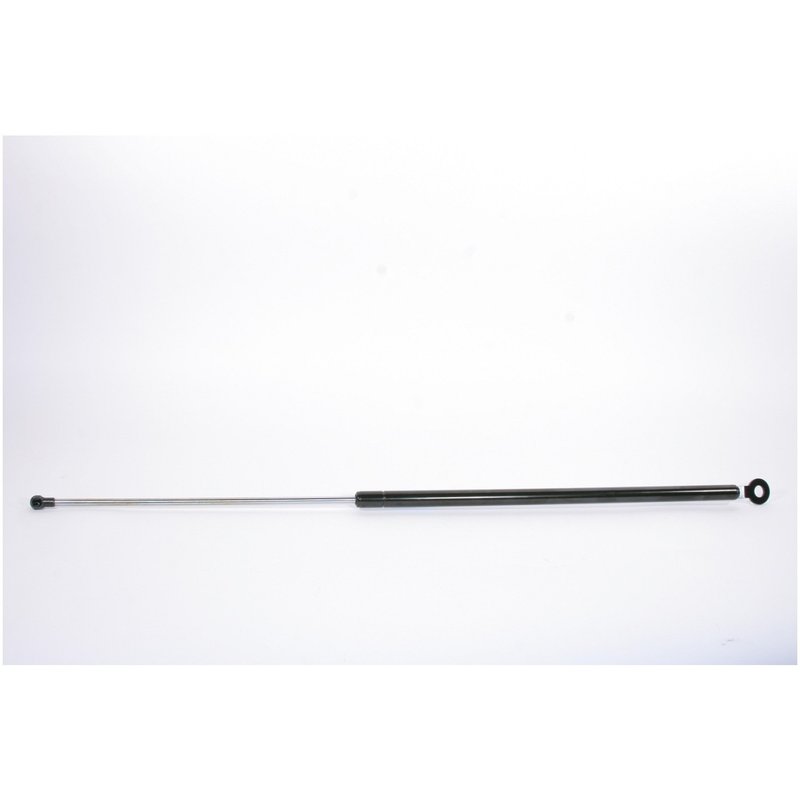

StrongArm 4808 Hatch Lift Support
StrongArm 4808 Lift Support for Acura Integra
StrongArm 4808 is a specific-fit lift support for the 1986-1989 Acura Integra. It is built as a pressurized cylinder for hood, hatch, or rear glass support applications, with dimensions and end fittings matched to the listed vehicle fitment.
Key Features
- Specific-fit lift support for 1986-1989 Acura Integra
- Extended length: 33.12 in.; compressed length: 20.81 in.
- Stroke length: 12.31 in. for controlled opening and closing travel
- 58.0 maximum force rating
- Black steel outer cylinder with rubber and Teflon materials
- End 1: Ball socket (nylon) 10mm
- End 2: Off-set blade with .562 in. hole
Detailed Description
StrongArm 4808 is engineered as a direct-fit lift support for the Acura Integra, 1986-1989. The pressurized cylinder design helps maintain steady support for the hood, hatch, or rear window glass, while the steel outer cylinder and Teflon-based internal materials support smooth operation. With a 33.12-inch extended length, 20.81-inch compressed length, and 12.31-inch stroke, this part is sized for the listed application and uses a 10mm nylon ball socket on one end and an off-set blade on the other. This part cross-references AMS Automotive 4808 for the same application.
StrongArm lift supports are custom engineered and manufactured to exceed industry standards for consistent operation and longer service life. Part number 4808 is a practical replacement choice when the original support no longer holds position or opens with the correct resistance.
Common Replacement Reasons
- Hood, hatch, or rear glass drops after being opened
- Weak or inconsistent lift support pressure
- Slow, uneven, or noisy opening action
- Loss of holding force in cold or warm conditions
- Visible wear at the end fittings or cylinder body
Installation Notes
Verify the vehicle year and application before installation. Match the end fittings and overall length to the original support on the 1986-1989 Acura Integra. Lift supports should be replaced in pairs to maintain balanced support and consistent operation across the opening.
Quality Assurance
StrongArm manufactures this lift support beyond industry standards for smoother operation and longer-lasting performance. The part number 4808 is built for the specified Acura Integra fitment and is engineered for dependable support in automotive lift applications.
| Brand | StrongArm |
|---|---|
| Part Number | 4808 |
| Compressed Length | 20.81 |
| Cylinder Outside Diameter | 19.0 |
| End 1 Type | Ball Socket (Nylon) 10mm |
| End 2 Type | Off-Set Blade (.562 dia. Hole) |
| Extended Length | 33.12 |
| Inner Shaft Diameter | 8.0 |
| Internal Rebound Spring | No |
| Materials | Rubber |
| Materials | Teflon |
| Maximum Force | 58.0 |
| Outer Cylinder Color | Black |
| Outer Cylinder Material | Steel |
| Stroke Length | 12.31 |
| Universal Or Specific Fit | Specific |
This part fits 4 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1989 | Acura | Integra | N/A | |
| 1988 | Acura | Integra | N/A | |
| 1987 | Acura | Integra | N/A | |
| 1986 | Acura | Integra | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
