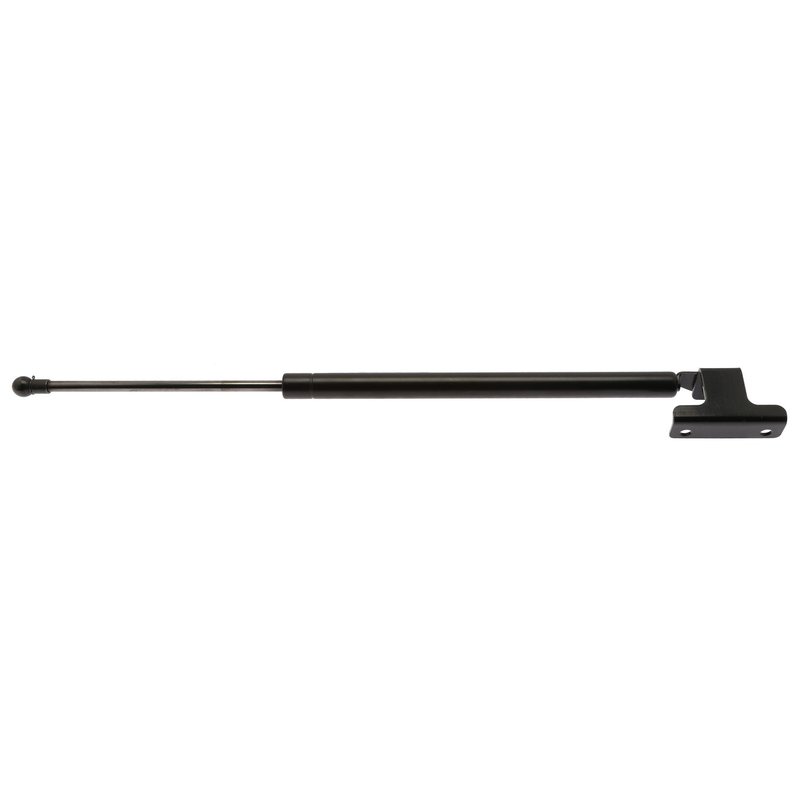

StrongArm 4815 Back Glass Lift Support - Left

Back Glass Lift Support for Pathfinder

StrongArm 4815 is a specific-fit back glass lift support for the 1987-1995 Nissan Pathfinder, left position. It uses a pressurized cylinder design to help hold rear window glass in the open position with controlled movement and consistent support.

• Specific fit for 1987-1995 Nissan Pathfinder, left
• Compressed length: 12.54 in.
• Extended length: 18.64 in.
• Stroke length: 6.1 in.
• Maximum force: 34.0
• Black steel outer cylinder with rubber and Teflon materials
• End fittings: 10 mm nylon ball socket and off-set blade with bracket

Product Details

StrongArm Part Number 4815 is engineered as a back glass lift support for rear window glass applications on the Nissan Pathfinder. The cylinder measures 12.54 inches compressed and 18.64 inches extended, with a 6.1-inch stroke and 34.0 maximum force. Its steel outer cylinder, nylon ball socket end, and off-set blade bracket end are built for a specific fit on the left side of the vehicle. This part cross-references AMS Automotive 4815 for the same application.

Common Uses

• Rear glass that will not stay open
• Slow or weak lift support action
• Uneven support at the back window glass
• Loss of controlled opening or closing movement
• Noise or instability from a worn lift support

Installation Notes

Verify left-side placement before installation and match the end fittings to the original mounting points on the vehicle. For safe operation and balanced support, lift supports are commonly replaced in the same position when wear is present on the opposite side. Confirm fitment for 1987-1995 Nissan Pathfinder, left, before ordering.

Quality Assurance

StrongArm lift supports are custom engineered and manufactured beyond industry standards for smoother operation and longer service life. Part 4815 is built for specific-fit rear glass support on the Nissan Pathfinder and is backed by StrongArm’s manufacturing standards.
