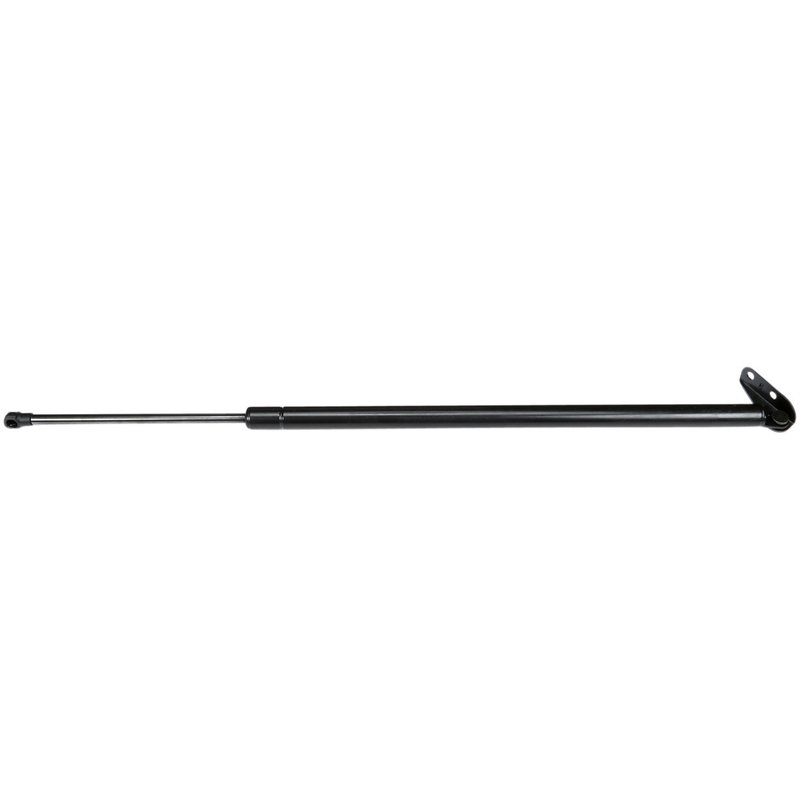

StrongArm 4822 Liftgate Lift Support - Right

StrongArm Liftgate Lift Support for Toyota Van

The StrongArm 4822 liftgate lift support is engineered specifically for Toyota Van models, providing reliable and precise lift assistance. Designed with durable steel construction and specialized end fittings, this lift support ensures smooth operation and secure fitment.

• Compressed length: 20.95 inches
• Extended length: 28.2 inches
• Cylinder outside diameter: 22.0 mm
• Stroke length: 7.25 inches
• Inner shaft diameter: 10.0 mm
• Outer cylinder color: Black
• Outer cylinder material: Steel
• End 1 type: Ball socket (nylon) 10mm
• End 2 type: Off-set blade with bracket
• Maximum force: 157.0 N
• Materials include rubber and Teflon components

The StrongArm 4822 liftgate lift support is a specific fit part designed to replace the original lift support on Toyota Van models. Its steel outer cylinder and black finish provide durability and corrosion resistance, while the nylon ball socket and offset blade bracket ensure secure attachment points. The 7.25-inch stroke length and 157 Newton maximum force deliver consistent lift assistance for smooth and controlled opening and closing of the liftgate.

Purpose and Common Applications

• Supports liftgate weight for easier opening and closing
• Prevents liftgate from slamming shut
• Eliminates liftgate sagging or failure to stay open
• Replaces worn or damaged factory lift supports
• Restores proper liftgate function and safety

Installation Notes and Tips

• Ensure compatibility with Toyota Van models before installation
• Use appropriate tools to remove old lift support and install new one
• Check that ball socket and offset blade bracket securely engage mounting points
• Test liftgate operation after installation for smooth movement
• Follow vehicle manufacturer guidelines for liftgate support replacement

Quality Assurance and Warranty

The StrongArm 4822 liftgate lift support is manufactured with high-quality steel and engineered components to meet OEM specifications for Toyota Van vehicles. While no internal rebound spring is included, the design focuses on reliable mechanical performance. This part is backed by StrongArm's quality standards to ensure durability and consistent function. Please refer to StrongArm's warranty policy for specific coverage details.
