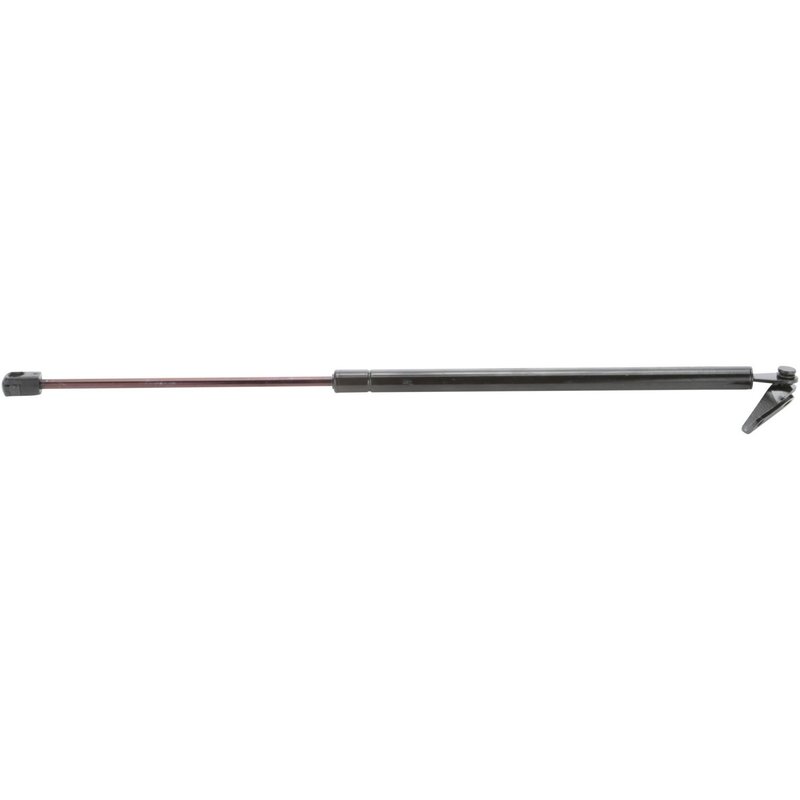

StrongArm 4866R Hatch Lift Support - Right

StrongArm 4866R Gas Strut Overview

The StrongArm 4866R gas strut is engineered for specific vehicle applications requiring reliable lift support. Designed with a steel outer cylinder and a black finish, this gas spring offers precise dimensions and durable materials to meet automotive standards.

• Compressed length: 14.53 inches
• Extended length: 22.63 inches
• Stroke length: 8.1 inches
• Cylinder outside diameter: 19.0 mm
• Inner shaft diameter: 8.0 mm
• Maximum force: 70.0 N
• End 1: Ball socket (nylon) 10mm
• End 2: Blade with bracket
• Outer cylinder material: Steel with black finish
• Materials include rubber and Teflon components
• No internal rebound spring

Technical Details and Construction

The StrongArm 4866R gas strut features a robust steel cylinder with a 19.0 mm outside diameter, providing strength and resistance to wear. The 8.1-inch stroke length allows for smooth extension and compression between the compressed length of 14.53 inches and extended length of 22.63 inches. The inner shaft diameter measures 8.0 mm, ensuring compatibility with specific mounting points. The ball socket end (10mm nylon) and blade with bracket on the opposite end facilitate secure attachment to designated vehicle components. Rubber and Teflon materials are incorporated to reduce friction and enhance durability during operation.

Applications and Problem Solving

This gas strut is designed for specific fitment applications, commonly used in automotive lift supports such as hoods, trunks, or tailgates. It addresses issues including:

• Difficulty in lifting or holding open heavy panels
• Worn or leaking original gas springs causing sagging
• Unstable or jerky motion during panel operation
• Corrosion or damage to existing lift supports
• Need for precise fitment with specific mounting ends

Installation Notes and Tips

When installing the StrongArm 4866R gas strut, ensure the ball socket end (10mm nylon) and blade with bracket are correctly aligned with the vehicle’s mounting points. Verify the compressed and extended lengths match the original equipment specifications. Lubricate mounting points if necessary to prevent noise and wear. Avoid compressing the strut beyond its specified limits to maintain performance and longevity.

Quality Assurance and Warranty

StrongArm gas struts are manufactured to meet automotive quality standards, utilizing steel cylinders and durable materials such as rubber and Teflon for reliable operation. The 4866R part number is subject to quality control inspections to ensure consistent force output of 70.0 N. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary based on application and usage.
