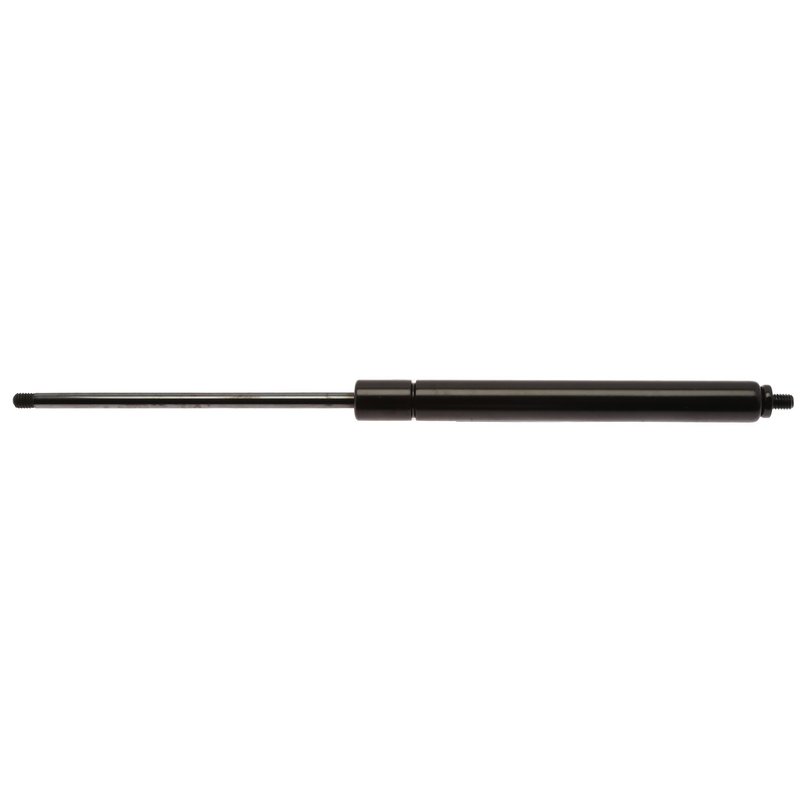

StrongArm 4956 Trunk Lid Lift Support

StrongArm Trunk Lid Lift Support Overview

The StrongArm 4956 trunk lid lift support is engineered specifically for Chrysler Concorde and LHS models. Designed to provide reliable and consistent support, this trunk lid lift support ensures smooth opening and secure holding of the trunk lid.

• Compressed length: 7.53 inches
• Extended length: 11.84 inches
• Cylinder outside diameter: 15.0 mm
• Stroke length: 4.31 inches
• Inner shaft diameter: 6.0 mm
• Steel outer cylinder with black finish
• Ball socket nylon ends, 8mm on both sides
• Maximum force rating: 103 lbs
• Materials include rubber and Teflon components for durability

Technical Details of StrongArm 4956 Lift Support

This trunk lid lift support features a steel outer cylinder finished in black for corrosion resistance and durability. The 15.0 mm cylinder diameter and 6.0 mm inner shaft diameter provide the necessary strength to support the trunk lid weight. With a stroke length of 4.31 inches, it offers smooth and controlled motion. Both ends are equipped with 8mm nylon ball sockets, ensuring secure attachment points that reduce wear and noise. The lift support does not include an internal rebound spring, focusing on consistent force delivery up to 103 pounds.

Compatible Vehicles and Fitment

This StrongArm trunk lid lift support is a specific fit for Chrysler Concorde and Chrysler LHS models. The part number 4956 corresponds directly to these vehicles, ensuring proper fit and function without modification. Using the correct lift support helps maintain the factory trunk lid operation and safety.

Common Issues Addressed by This Lift Support

• Difficulty in opening or holding the trunk lid open
• Trunk lid falling unexpectedly or closing abruptly
• Worn or leaking original lift supports
• Noise or binding during trunk lid operation
• Corrosion or damage to existing lift support components

Installation Notes and Tips

Installation of the StrongArm 4956 trunk lid lift support requires removal of the old lift support by detaching the ball socket ends. The nylon ball sockets on both ends allow for easy snap-on installation without special tools. Ensure the lift support is installed in the correct orientation and fully seated on the ball studs. It is recommended to replace lift supports in pairs to maintain balanced trunk lid operation.

Quality Assurance and Warranty

StrongArm trunk lid lift supports are manufactured with high-quality steel and durable materials such as rubber and Teflon to ensure long service life. The part number 4956 meets OEM specifications for Chrysler Concorde and LHS models. While specific warranty details are not provided, StrongArm products typically adhere to industry standards for reliability and performance.
