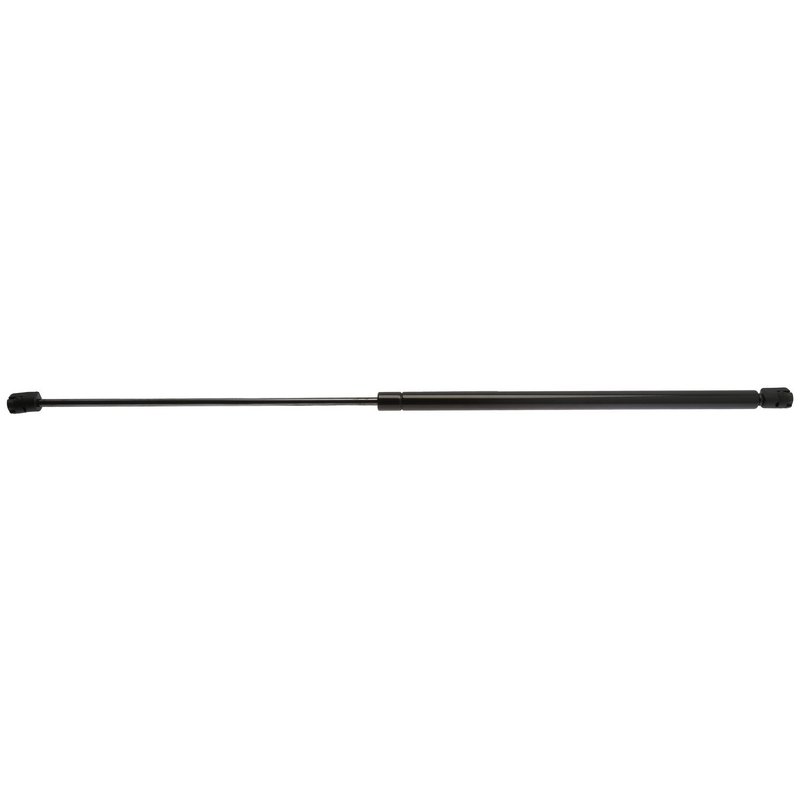

StrongArm 4989 Hood Lift Support

StrongArm Hood Lift Support for Audi and Volkswagen Models

The StrongArm 4989 Hood Lift Support is engineered specifically for select Audi and Volkswagen vehicles, including the A6, A6 Quattro, Allroad Quattro, Passat, RS6, and S6. Designed to provide reliable hood support, this part ensures smooth and controlled lifting and holding of the hood during maintenance or inspection.

• Specific fit for Audi and Volkswagen models: A6, A6 Quattro, Allroad Quattro, Passat, RS6, S6
• Compressed length: 16.83 inches; extended length: 28.43 inches
• Stroke length of 11.6 inches for optimal hood movement
• Durable black steel outer cylinder with 19.0 mm diameter
• Ball socket nylon ends (16-degree and 10mm) for secure attachment
• Maximum force rating of 70.0 lbs to support hood weight
• Materials include rubber and Teflon components for smooth operation

Technical Details and Construction

The StrongArm 4989 hood lift support features a steel outer cylinder finished in black for corrosion resistance and durability. The cylinder outside diameter measures 19.0 mm, while the inner shaft diameter is 8.0 mm, providing a robust structure to handle repeated use. The lift support extends from a compressed length of 16.83 inches to an extended length of 28.43 inches, with a stroke length of 11.6 inches, allowing for smooth and controlled hood movement. Both ends are equipped with ball socket nylon fittings—one at a 16-degree angle and the other sized at 10 mm—to ensure precise and secure mounting points. The internal design excludes a rebound spring, focusing on consistent force application up to 70 lbs. Rubber and Teflon materials are incorporated to reduce friction and wear during operation.

Compatible Vehicles and Applications

This hood lift support is specifically designed for the following vehicles:

• Audi A6 and A6 Quattro
• Audi Allroad Quattro
• Audi RS6 and S6
• Volkswagen Passat

It is intended to replace worn or failing hood lift supports that no longer hold the hood securely or cause difficulty when opening or closing the hood.

Common Issues Addressed by StrongArm 4989

• Hood failing to stay open or slowly closing unexpectedly
• Difficulty lifting the hood due to weak or broken support
• Excessive hood movement or rattling while driving
• Corroded or damaged lift support components
• Uneven hood alignment caused by faulty support

Installation Notes and Tips

Installation of the StrongArm 4989 hood lift support requires removal of the old lift support and attachment of the new unit using the ball socket nylon ends. Ensure the mounting points on the hood and frame are clean and free of debris before installation. The specific fitment for Audi and Volkswagen models means no modification is necessary. Use appropriate tools to avoid damage to the ball sockets during installation. Verify smooth operation by carefully opening and closing the hood after installation.

Quality Assurance and Warranty

StrongArm hood lift supports are manufactured to meet OEM specifications for fit and function. The 4989 part number undergoes quality control to ensure durability and consistent performance. While no internal rebound spring is included, the design provides reliable force up to 70 lbs. Warranty coverage details should be confirmed with the product provider, but StrongArm products typically come with a limited warranty against defects in materials and workmanship.
