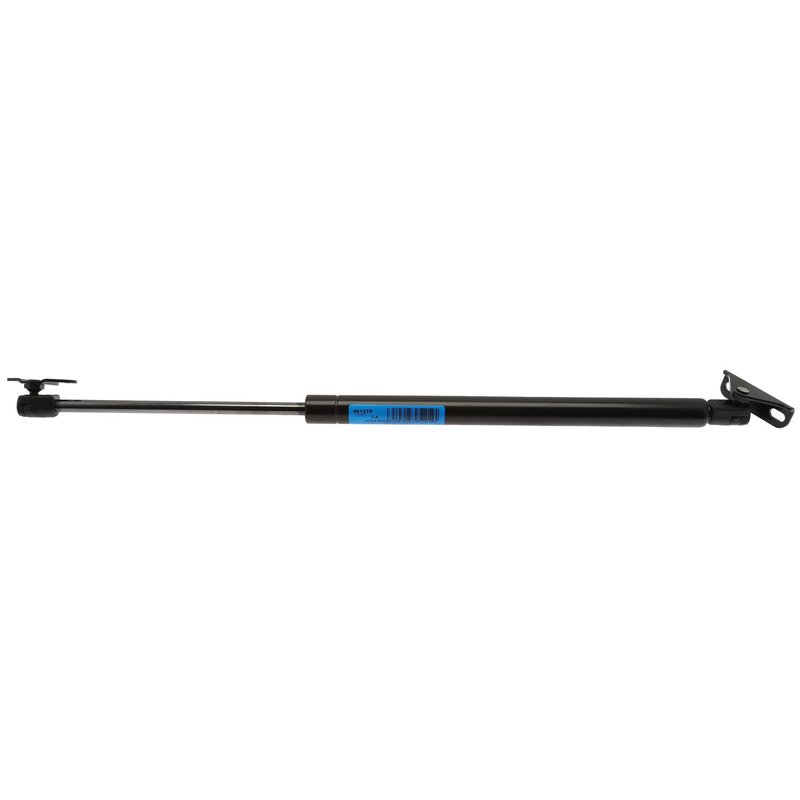

StrongArm 6127 Liftgate Lift Support

StrongArm Liftgate Lift Support for Lexus RX330

The StrongArm 6127 liftgate lift support is engineered specifically for the Lexus RX330, providing reliable and consistent performance. Designed to replace worn or failing lift supports, this part ensures smooth and controlled liftgate operation.

• Compressed length: 13.7 inches
• Extended length: 20.5 inches
• Cylinder outside diameter: 22.0 mm
• Stroke length: 6.8 inches
• Inner shaft diameter: 10.0 mm
• Steel outer cylinder with black finish
• Ball socket (nylon) 10mm ends on both sides
• Maximum force rating: 152.0 N
• Materials include rubber and Teflon components for durability

Technical Details and Specifications

The StrongArm 6127 liftgate lift support is a specific fit part designed for the Lexus RX330 model. It features a steel outer cylinder finished in black for corrosion resistance and durability. The lift support measures 13.7 inches when compressed and extends to 20.5 inches, with a stroke length of 6.8 inches, providing the necessary range of motion for proper liftgate operation. Both ends are equipped with 10mm nylon ball socket connectors, ensuring secure attachment and smooth pivoting action. The internal design excludes a rebound spring, focusing on consistent force delivery up to 152 Newtons. Rubber and Teflon materials are used in critical areas to reduce friction and wear.

Common Applications and Problem Resolution

• Replaces failing or weak lift supports on Lexus RX330 liftgates
• Eliminates liftgate sagging or difficulty in opening and closing
• Prevents sudden liftgate drops that can cause injury or damage
• Restores smooth and controlled liftgate motion
• Addresses noise or binding issues during liftgate operation

Installation Notes and Tips

Installation of the StrongArm 6127 liftgate lift support requires removal of the old lift support and attachment of the new unit using the ball socket ends. Ensure the liftgate is securely supported during replacement to avoid injury. The 10mm nylon ball sockets snap into place on the factory mounting points. Verify the compressed and extended lengths match the original part to confirm proper fitment. Lubrication of the ball sockets is generally not required due to the Teflon components but inspect for any debris before installation.

Quality Assurance and Warranty

StrongArm lift supports are manufactured to meet OEM specifications for fit and function. The 6127 liftgate lift support undergoes quality control testing to ensure consistent force output and durability. This part is backed by StrongArm's standard warranty coverage, providing assurance against defects in materials and workmanship under normal use conditions.
