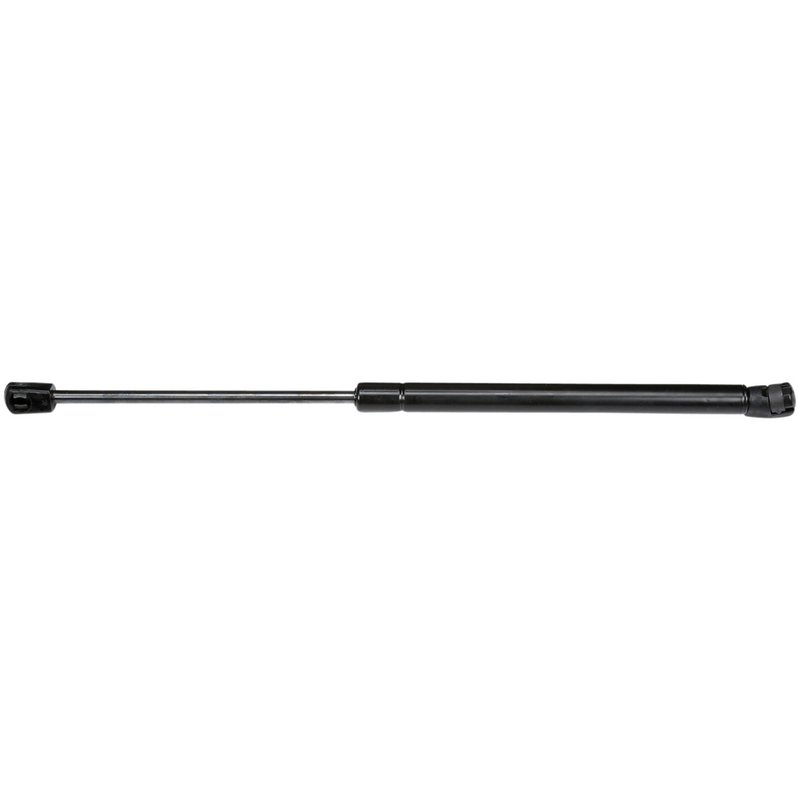

StrongArm 6184 Hood Lift Support

StrongArm Hood Lift Support for Hyundai Veracruz

The StrongArm 6184 Hood Lift Support is engineered specifically for the Hyundai Veracruz, providing reliable and consistent hood support. Designed with durable steel construction and precise dimensions, this hood lift support ensures smooth operation and secure hood positioning.

Key Features of StrongArm 6184 Hood Lift Support

• Compressed length: 10.93 inches for accurate fitment
• Extended length: 17.18 inches for full hood travel
• Cylinder outside diameter: 18.0 mm, made from steel with a black finish
• Stroke length of 6.25 inches for controlled hood movement
• Ball socket ends with nylon construction (10mm and 16-degree angle) for secure attachment
• Inner shaft diameter: 8.0 mm for strength and durability
• Materials include rubber and Teflon components for smooth operation
• Maximum force rating of 56.0 N to support hood weight effectively

Detailed Description of the StrongArm 6184 Hood Lift Support

This hood lift support is a specific fit part designed exclusively for the Hyundai Veracruz. The steel outer cylinder with a black finish offers corrosion resistance and long-lasting performance. The 10.93-inch compressed length and 17.18-inch extended length ensure the hood opens and closes smoothly without excess play. The ball socket ends, made from nylon, provide secure mounting points with a 10mm diameter on one end and a 16-degree angled 16mm socket on the other, allowing for precise alignment and easy installation. The internal components, including rubber and Teflon materials, reduce friction and wear, contributing to consistent operation over time. With a maximum force of 56 Newtons, this lift support is engineered to hold the hood firmly in place during maintenance or inspection.

Common Applications and Issues Resolved

• Supports the hood of Hyundai Veracruz models for safe and stable opening
• Replaces worn or weak hood lift supports that fail to hold the hood properly
• Eliminates hood slamming or sudden closing during vehicle servicing
• Prevents damage to hood hinges caused by inadequate support
• Restores smooth hood operation and reduces effort when lifting

Installation Notes and Tips

• Ensure the vehicle is parked on a level surface and the hood is securely propped before removal
• Remove the old lift support by detaching the ball socket ends carefully to avoid damage
• Align the new StrongArm 6184 lift support with the mounting points on the hood and frame
• Press the ball sockets firmly onto the mounting studs until they snap into place
• Test the hood operation to confirm smooth opening and secure holding

Quality Assurance and Warranty Information

The StrongArm 6184 Hood Lift Support is manufactured to meet strict quality standards with durable steel construction and precision components. While no internal rebound spring is included, the design ensures reliable performance under normal operating conditions. This part is backed by StrongArm's quality assurance protocols to provide consistent fit and function for Hyundai Veracruz vehicles. Please consult product documentation or manufacturer resources for specific warranty details.
