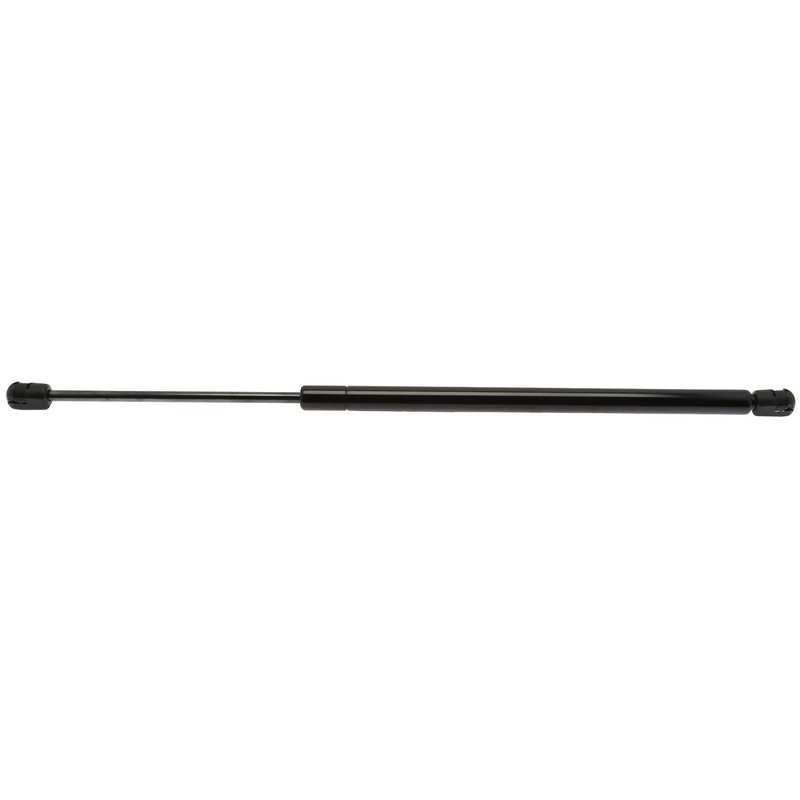

StrongArm 6187 Liftgate Lift Support

StrongArm Liftgate Lift Support for Jeep Compass and Patriot

The StrongArm 6187 liftgate lift support is engineered specifically for Jeep Compass and Patriot models. Designed to provide reliable and consistent lift assistance, this part ensures smooth and controlled opening and closing of your vehicle's liftgate.

• Compressed length: 14.45 inches
• Extended length: 20.75 inches
• Cylinder outside diameter: 19.0 mm
• Stroke length: 6.3 inches
• Inner shaft diameter: 8.0 mm
• Steel outer cylinder with black finish
• Ball socket nylon ends, 10mm size on both ends
• Maximum force rating: 132 lbs
• Materials include rubber and Teflon components for durability

Detailed Product Description

The StrongArm 6187 liftgate lift support is a specific fit part designed to match the exact specifications required for Jeep Compass and Patriot vehicles. Its steel outer cylinder, finished in black, offers strength and corrosion resistance. The lift support features a 14.45-inch compressed length and extends to 20.75 inches, providing a 6.3-inch stroke length for smooth liftgate operation. Both ends are equipped with 10mm nylon ball sockets, ensuring secure attachment and reduced wear. Internal components include rubber and Teflon materials to minimize friction and extend service life. With a maximum force capacity of 132 pounds, this lift support delivers consistent performance under normal operating conditions.

Common Applications and Problem Resolution

• Replaces worn or weak liftgate supports on Jeep Compass and Patriot models
• Eliminates liftgate sagging or difficulty in opening and closing
• Prevents sudden liftgate drops that can cause injury or damage
• Restores proper liftgate tension and balance
• Addresses noise or binding issues during liftgate operation

Installation Notes and Tips

Installation of the StrongArm 6187 liftgate lift support requires removal of the old lift support and attachment of the new unit using the existing ball socket mounts. Both ends feature 10mm nylon ball sockets that snap onto the vehicle’s mounting points. It is recommended to support the liftgate during replacement to prevent injury or damage. Verify the lift support is fully extended before installation to ease mounting. No special tools are required beyond standard hand tools for removal and installation.

Quality Assurance and Warranty

StrongArm lift supports are manufactured to meet OEM specifications for fit and function. The 6187 part number undergoes quality control testing to ensure durability and consistent performance. This lift support is backed by StrongArm’s standard warranty coverage, providing assurance against defects in materials and workmanship under normal use conditions.
