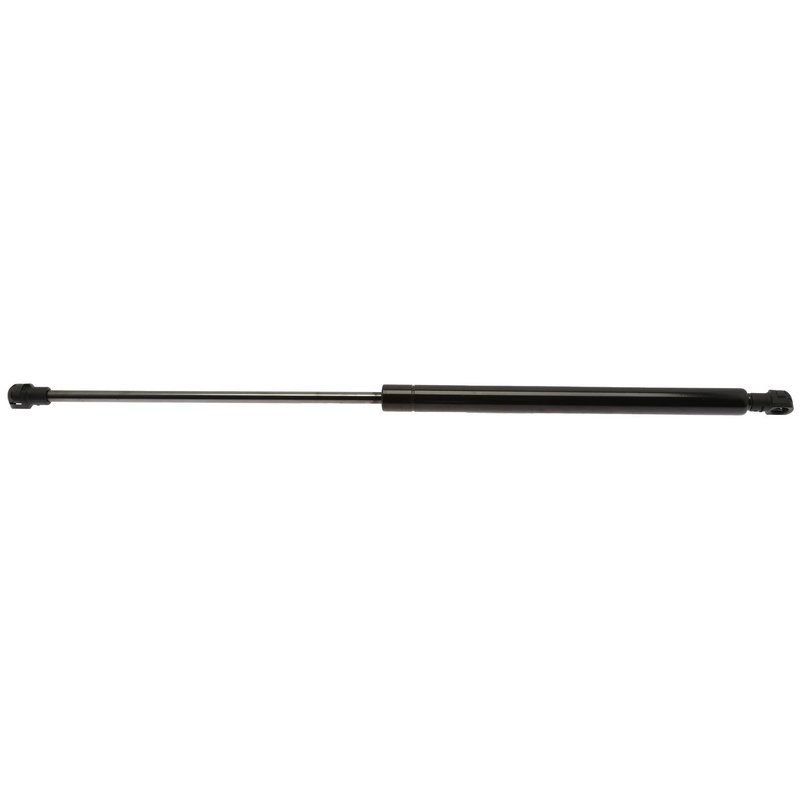

StrongArm 6244 Hatch Lift Support
| Brand | StrongArm 6244 |
|---|---|
| Compressed Length | 11.65 |
| Cylinder Outside Diameter | 18.0 |
| End 1 Type | Ball Socket (Nylon) 10mm |
| End 2 Type | Ball Socket (Steel) 10mm |
| Extended Length | 19.4 |
| Inner Shaft Diameter | 8.0 |
| Internal Rebound Spring | No |
| Materials | Rubber |
| Materials | Teflon |
| Maximum Force | 93.0 |
| Outer Cylinder Color | Black |
| Outer Cylinder Material | Steel |
| Stroke Length | 7.75 |
| Universal Or Specific Fit | Specific |
| Fits | Toyota · 4 vehicles |
Specific fit. Custom engineered for a precise replacement.
Steel cylinder. Durable construction with a black finish.
Smooth operation. Built for longer lasting performance.
Cross-references AMS Automotive 6244, 819-6643 and 68950-0W204 for the same application. See all 8.
StrongArm 6244 Lift Support for Prius
StrongArm 6244 is a specific-fit lift support for the rear hatch or hood application listed below. It uses a pressurized cylinder design to provide controlled opening and holding force, with a steel outer cylinder, nylon and steel ball socket ends, and a black finish for a clean OE-style appearance.
Built for 2010-2012 Toyota Prius and 2012 Toyota Prius Plug-In applications through 04/2012, this StrongArm lift support is engineered for smooth operation and consistent support. The 6244 part number is also referenced in aftermarket cross listings for the same application.
Key Features
- Specific-fit lift support for listed Toyota Prius applications
- Pressurized cylinder construction for controlled lift and hold
- Steel outer cylinder with black finish
- Nylon ball socket end and steel ball socket end, both 10 mm
- Rubber and Teflon materials for operating consistency
- Maximum force rating: 93.0
- StrongArm part number 6244
Detailed Description
StrongArm 6244 is a vehicle-specific lift support engineered for the 2010-2012 Toyota Prius and the 2012 Toyota Prius Plug-In built to 04/2012. As a pressurized gas strut, it helps control the movement of the hood, hatch, or rear glass area listed in the fitment data, reducing abrupt drop and improving opening support. The compressed length is 11.65 inches, extended length is 19.4 inches, and stroke length is 7.75 inches, which are important dimensions for proper fit and travel. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Hatch or hood that will not stay open
- Weak lift support with reduced holding force
- Slow or uneven opening action
- Drooping rear hatch or liftgate movement
- Loss of support in cold-weather operation
Installation Notes and Tips
Verify the vehicle build date before ordering, since the listed Prius and Prius Plug-In fitment applies through 04/2012. Match the 10 mm ball socket end types and confirm the compressed and extended lengths against the original support before installation. For safe, reliable operation, replace lift supports in pairs when servicing the same opening.
Quality Assurance
StrongArm lift supports are custom engineered and manufactured beyond industry standards to deliver smoother operation and longer service life. Part number 6244 is built to the specifications shown above for the listed Toyota Prius applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2012 | Toyota | Prius | N/A | To 04/2012 |
| 2012 | Toyota | Prius Plug-In | N/A | To 04/2012 |
| 2011 | Toyota | Prius | N/A | To 04/2012 |
| 2010 | Toyota | Prius | N/A | To 04/2012 |
