OE Quality
60-Day Returns

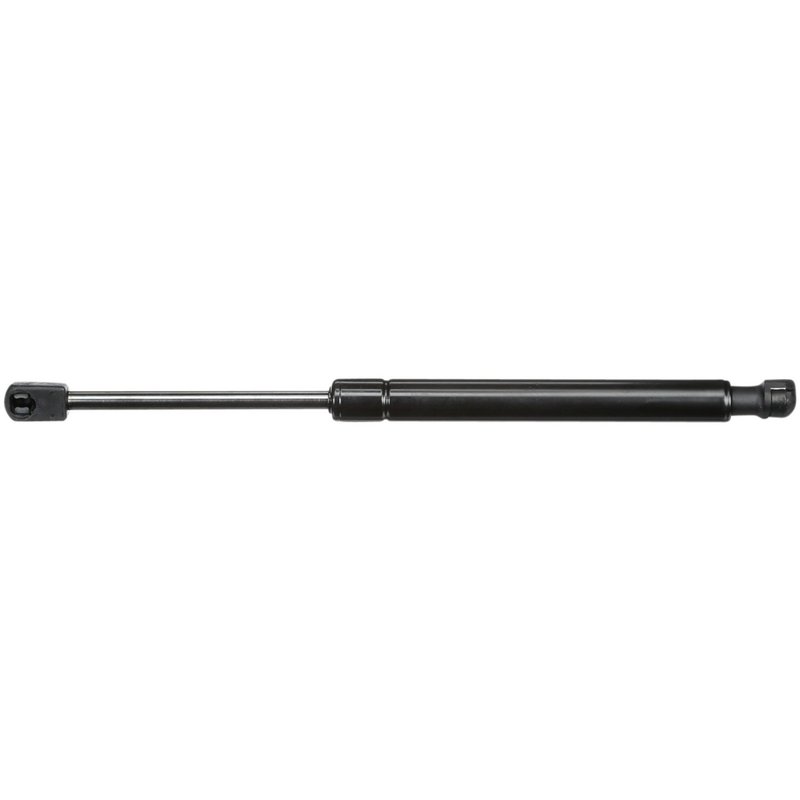

StrongArm 6254 Trunk Lid Lift Support
Trunk Lid Lift Support for Chrysler 200 and Sebring
StrongArm 6254 is a specific-fit trunk lid lift support engineered for select Chrysler applications. It uses a pressurized cylinder design to help hold the trunk lid or rear compartment open with controlled movement and consistent support.
Key Features
- Specific-fit trunk lid lift support for confirmed Chrysler applications
- Compressed length: 8.22 in.; extended length: 11.72 in.; stroke length: 3.5 in.
- Maximum force rating: 80.0
- Black steel outer cylinder with rubber and Teflon materials
- Ball socket ends: 8 mm nylon on one end and 10 mm nylon/steel on the other
- No internal rebound spring
Detailed Description
StrongArm Part Number 6254 is built for trunk lid and compartment use on 2011-2013 Chrysler 200, 2010 Chrysler Cirrus, and 2010 Chrysler Sebring. This lift support is custom engineered to match the application-specific mounting and travel requirements of these vehicles, helping the trunk lid open and stay positioned with smooth, controlled operation. The StrongArm 6254 is a direct replacement choice for Chrysler 200 and Sebring owners looking for a specific-fit trunk lid lift support with the correct compressed and extended dimensions.
This part cross-references AMS Automotive 6254 for the same application.
What It Helps Address
- Trunk lid that will not stay open
- Weak or slow lift support performance
- Uneven or inconsistent trunk opening motion
- Loss of support from worn pressurized cylinders
- Difficulty accessing the rear compartment safely
Installation Notes and Tips
Verify the ball socket end sizes and overall length before installation. Confirm the vehicle application by year and model: Fits 2011-2013 Chrysler 200, N/A; Fits 2010 Chrysler Cirrus, N/A; Fits 2010 Chrysler Sebring, N/A. Inspect the mounting points for wear or damage before attaching the new support. For proper operation and balanced lift, replace lift supports in pairs when servicing the trunk lid system.
Quality Assurance
StrongArm states that its lift supports are custom engineered and manufactured beyond industry standards for smoother operation and longer-lasting performance. Part Number 6254 is built to meet the dimensional and fit requirements of the listed Chrysler applications.
| Brand | StrongArm |
|---|---|
| Part Number | 6254 |
| Compressed Length | 8.22 |
| Cylinder Outside Diameter | 18.0 |
| End 1 Type | Ball Socket (Nylon) 8mm |
| End 2 Type | Ball Socket (Nylon - Steel) 10mm |
| Extended Length | 11.72 |
| Inner Shaft Diameter | 8.0 |
| Internal Rebound Spring | No |
| Materials | Rubber |
| Materials | Teflon |
| Maximum Force | 80.0 |
| Outer Cylinder Color | Black |
| Outer Cylinder Material | Steel |
| Stroke Length | 3.5 |
| Universal Or Specific Fit | Specific |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Body Type | # Doors | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2013 | Chrysler | 200 | Sedan | N/A | ||||
| 2012 | Chrysler | 200 | Sedan | N/A | ||||
| 2011 | Chrysler | 200 | Sedan | N/A | ||||
| 2010 | Chrysler | Cirrus | 2.4L | L4 | N/A | |||
| 2010 | Chrysler | Sebring | Sedan | 4 Door | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
