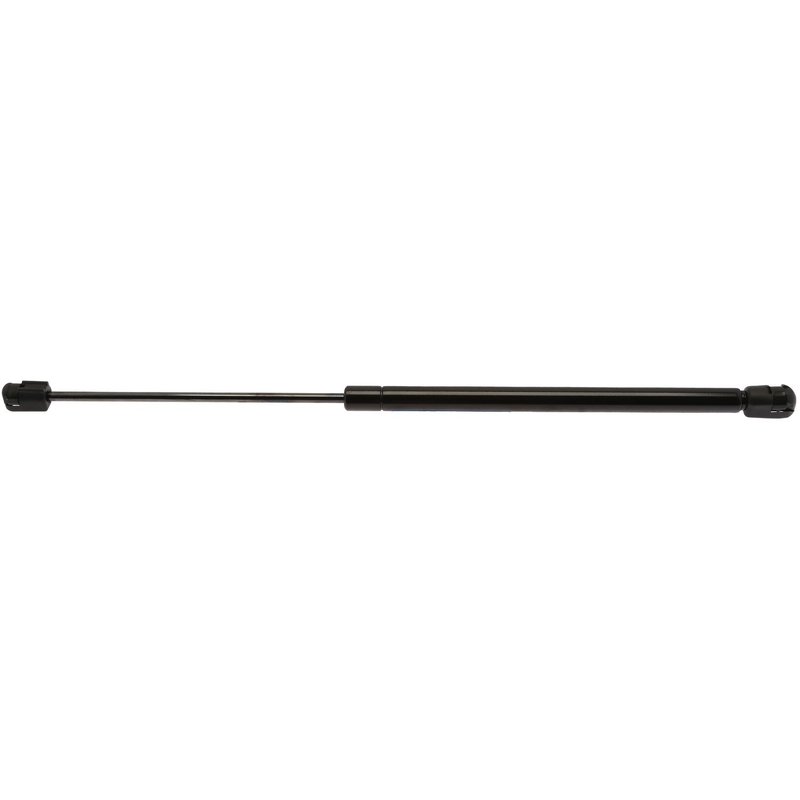

StrongArm 6260 Back Glass Lift Support
| Brand | StrongArm 6260 |
|---|---|
| Compressed Length | 11.17 |
| Cylinder Outside Diameter | 15.0 |
| End 1 Type | Ball Socket (Nylon) 8mm |
| End 2 Type | Ball Socket (Nylon) 10mm |
| Extended Length | 17.42 |
| Inner Shaft Diameter | 6.0 |
| Internal Rebound Spring | No |
| Materials | Rubber |
| Materials | Teflon |
| Maximum Force | 33.0 |
| Outer Cylinder Color | Black |
| Outer Cylinder Material | Steel |
| Stroke Length | 6.25 |
| Universal Or Specific Fit | Specific |
| Fits | Ford, Mazda, and Mercury · 13 vehicles |
Specific fit. Custom engineered for a precise replacement.
Steel cylinder. Black steel construction with nylon ball sockets.
Smooth operation. Built for reliable support and longer-lasting performance.
Cross-references AMS Automotive 6260, 8L8Z 78406A10-A and 8L8Z 78406A11-A for the same application. See all 8.
Back Glass Lift Support for Ford, Mazda, and Mercury
StrongArm 6260 is a specific-fit back glass lift support engineered for rear window glass applications on select Ford, Mazda, and Mercury vehicles. It uses a pressurized cylinder design to provide controlled lift and hold performance for the rear glass on compatible hatch and liftgate setups.
- Specific-fit back glass lift support for targeted vehicle applications
- Compressed length: 11.17 in.; extended length: 17.42 in.
- Stroke length: 6.25 in. with 33.0 maximum force
- Steel outer cylinder with black finish
- Ball socket ends: nylon 8 mm and nylon 10 mm
- Rubber and Teflon materials for smooth operation and wear resistance
Detailed Product Overview
StrongArm 6260 is built as a rear glass lift support for vehicles that use a pressurized strut to raise and hold the back glass. The cylinder measures 15.0 mm in outside diameter with a 6.0 mm inner shaft diameter, and its specific-fit design helps match the original application geometry. This part cross-references AMS Automotive 6260 for the same application. It is listed for 2008-2012 Ford Escape, 2008-2011 Mazda Tribute, and 2008-2011 Mercury Mariner, making it a direct replacement option for rear glass support service on those models. StrongArm 6260 is also referenced under part number 6260 for catalog and search matching.
Common Problems This Part Can Address
- Rear glass that drops instead of staying open
- Weak or slow lift action at the back window
- Uneven support when opening the rear glass
- Loss of holding force in worn lift support cylinders
- Noise or rough movement from aging rear glass struts
Installation Notes and Tips
Verify ball socket size and compressed/extended length before installation to confirm the correct rear glass lift support for your vehicle. For best results, replace lift supports in pairs so the rear glass opens and holds evenly. Confirm fitment for your exact Ford Escape, Mazda Tribute, or Mercury Mariner year before ordering, since this is a specific-fit part.
Quality Assurance
StrongArm states that each lift support is custom engineered and manufactured beyond industry standards to support smoother operation and longer service life. The brand also notes that lift supports are pressurized cylinders used in automotive hood, hatch, and rear glass applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2012 | Ford | Escape | N/A | — |
| 2011 | Ford | Escape | N/A | — |
| 2011 | Mazda | Tribute | N/A | — |
| 2011 | Mercury | Mariner | N/A | — |
| 2010 | Ford | Escape | N/A | — |
| 2010 | Mazda | Tribute | N/A | — |
| 2010 | Mercury | Mariner | N/A | — |
| 2009 | Ford | Escape | N/A | — |
| 2009 | Mazda | Tribute | N/A | — |
| 2009 | Mercury | Mariner | N/A | — |
| 2008 | Ford | Escape | N/A | — |
| 2008 | Mazda | Tribute | N/A | — |
| 2008 | Mercury | Mariner | N/A | — |
