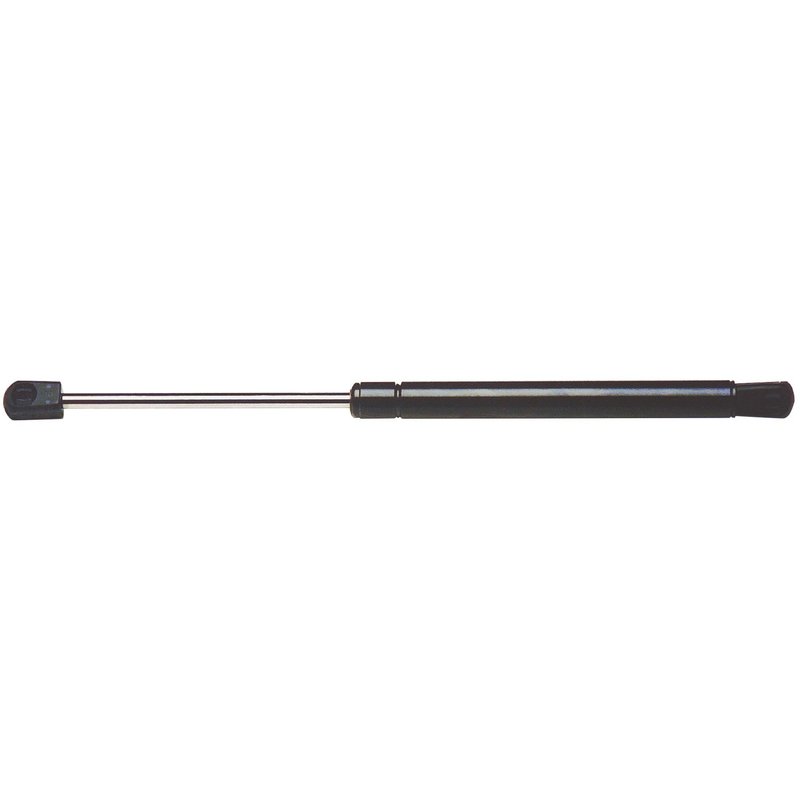

StrongArm 6264 Back Glass Lift Support
| Brand | StrongArm 6264 |
|---|---|
| Compressed Length | 10.6 |
| Cylinder Outside Diameter | 15.0 |
| End 1 Type | Ball Socket (Nylon Angled) 10 Deg. |
| End 2 Type | Ball Socket (Nylon Angled) 10 Deg. |
| Extended Length | 16.41 |
| Inner Shaft Diameter | 6.0 |
| Internal Rebound Spring | No |
| Materials | Rubber |
| Materials | Teflon |
| Maximum Force | 37.0 |
| Outer Cylinder Color | Black |
| Outer Cylinder Material | Steel |
| Stroke Length | 5.81 |
| Universal Or Specific Fit | Specific |
| Fits | Toyota · 6 vehicles |
Specific fit. Custom engineered for a precise replacement.
Steel cylinder. Black steel construction with nylon angled ball sockets.
Smooth operation. Built for longer lasting performance.
Cross-references AMS Automotive 6264, 819-7033 and 689300E020 for the same application. See all 9.
Back Glass Lift Support for Toyota Highlander
Restore controlled rear glass movement with this StrongArm back glass lift support, part number 6264. It is a specific-fit gas strut engineered for the rear window glass on select Toyota Highlander models, with smooth operation and stable support for everyday use.
Key Features
- Specific-fit back glass lift support for select Toyota Highlander applications
- Extended length: 16.41 in; compressed length: 10.6 in
- Stroke length: 5.81 in for controlled opening and closing travel
- Maximum force rating: 37.0
- Steel outer cylinder with black finish
- Nylon angled ball socket ends, 10-degree on both ends
- Rubber and Teflon materials for consistent movement and wear resistance
Detailed Description
StrongArm 6264 is a rear window glass lift support built for the Toyota Highlander. It uses a pressurized cylinder design to hold the back glass in position and provide controlled lift and lowering action. The specific-fit design helps ensure proper alignment on 2008-2011 Toyota Highlander models, except Japan-built vehicles, and 2012-2013 Toyota Highlander models. This part cross-references AMS Automotive 6264 for the same application.
With a steel outer cylinder, angled nylon ball socket ends, and a 37.0 force rating, this StrongArm lift support is built for consistent rear glass operation. The part number 6264 is also referenced by several OE and aftermarket numbers, including 819-7033 and D6264, making it a practical replacement choice when servicing the rear glass support on a Toyota Highlander.
Common Problems It Helps Solve
- Rear glass that will not stay open
- Weak or slow lift action at the back window
- Dropping rear glass during loading or unloading
- Uneven or inconsistent rear hatch glass movement
- Worn gas strut performance on Toyota Highlander rear glass
Installation Notes and Tips
Verify vehicle fitment before installation: Fits 2008-2011 Toyota Highlander, N/A, except Japan Built; Fits 2012-2013 Toyota Highlander, N/A. Inspect the mounting points and ball studs for wear before installing the new support. Rear glass lift supports are commonly replaced when lift force has dropped or the glass no longer holds position reliably.
Quality Assurance
StrongArm states that each lift support is custom engineered and manufactured beyond industry standards for smoother operation and longer-lasting performance. The design is intended to deliver dependable support for automotive rear glass applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2013 | Toyota | Highlander | N/A | — |
| 2012 | Toyota | Highlander | N/A | — |
| 2011 | Toyota | Highlander | N/A | Except Japan Built |
| 2010 | Toyota | Highlander | N/A | Except Japan Built |
| 2009 | Toyota | Highlander | N/A | Except Japan Built |
| 2008 | Toyota | Highlander | N/A | Except Japan Built |
